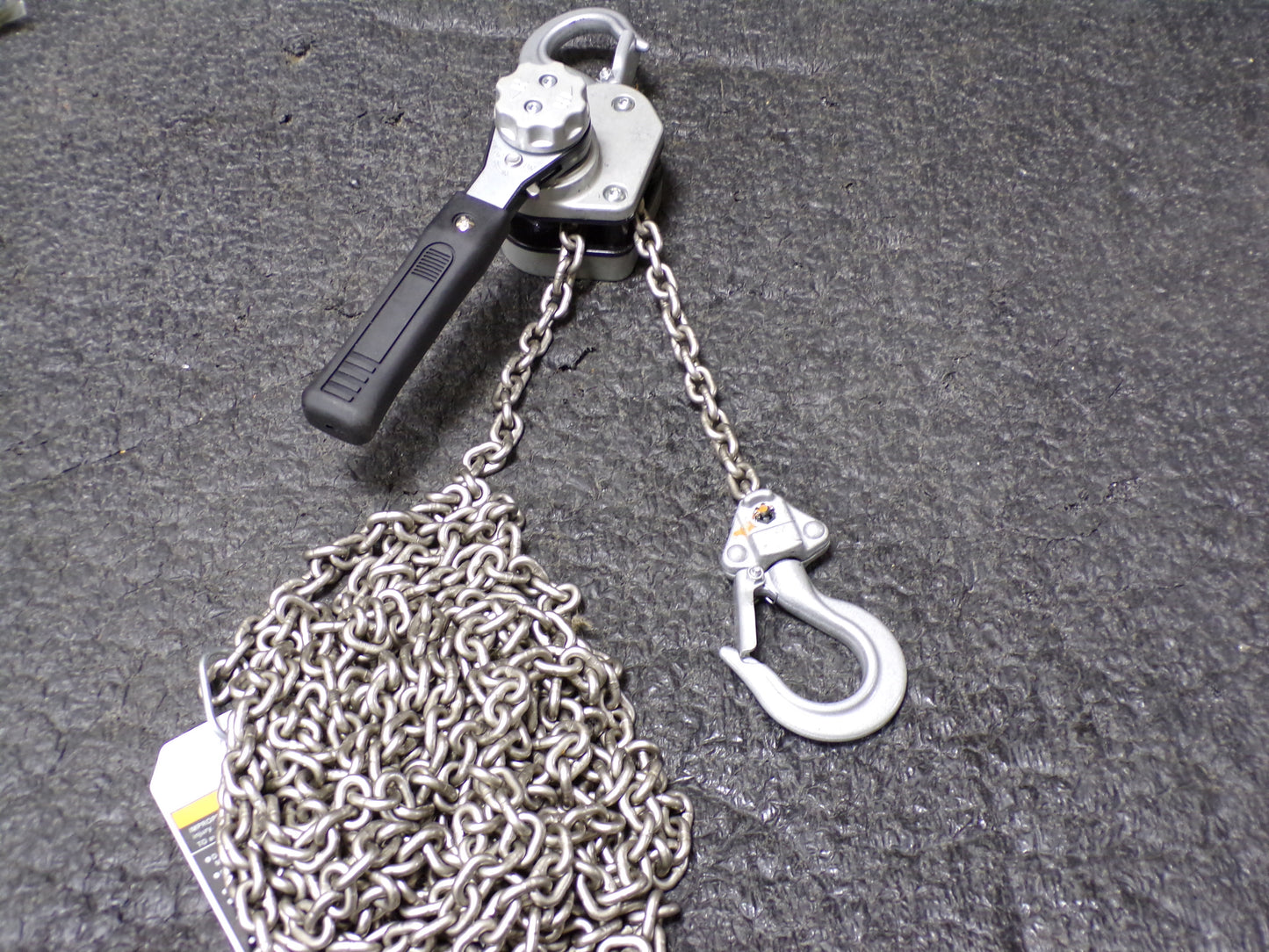

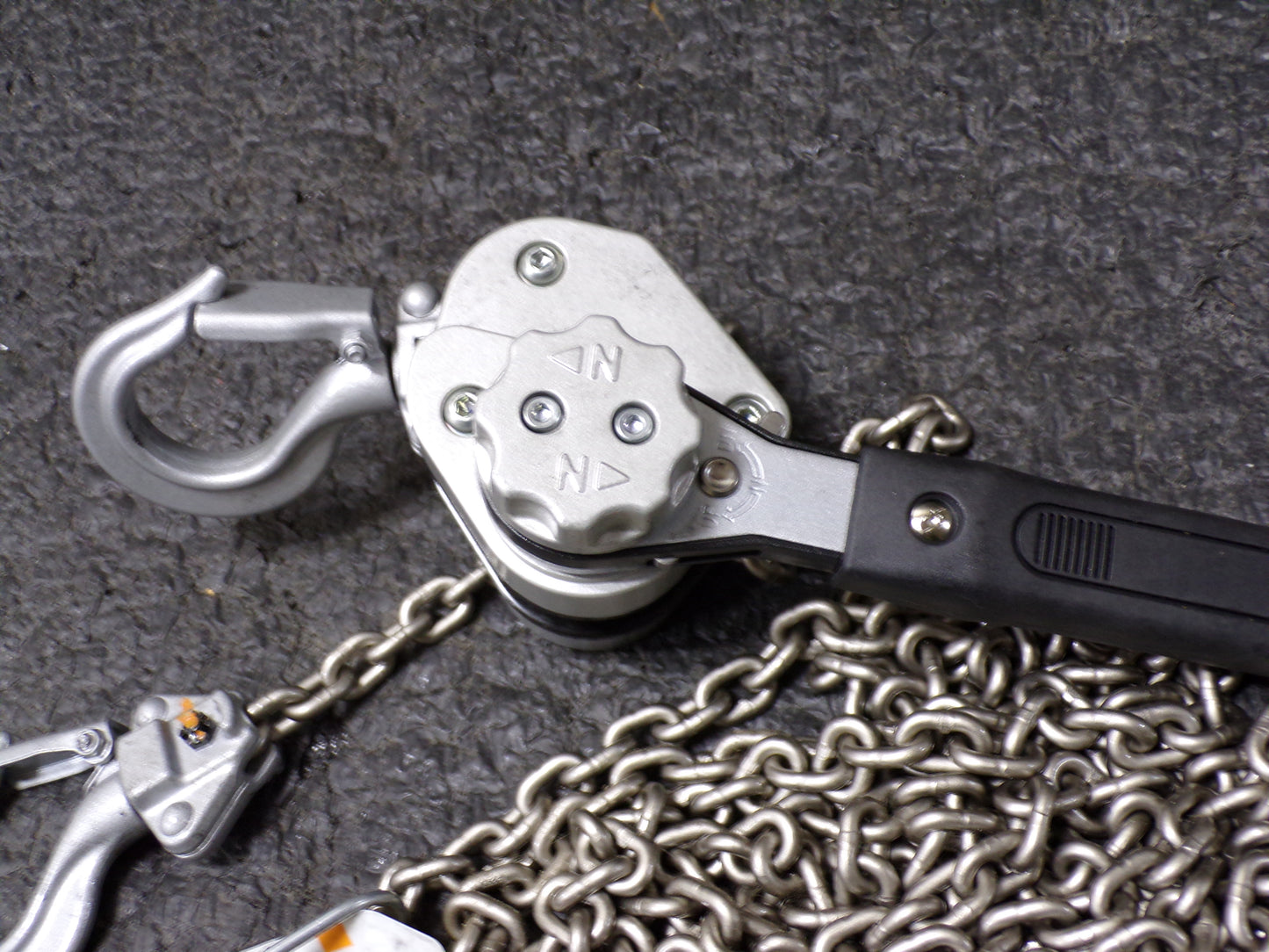

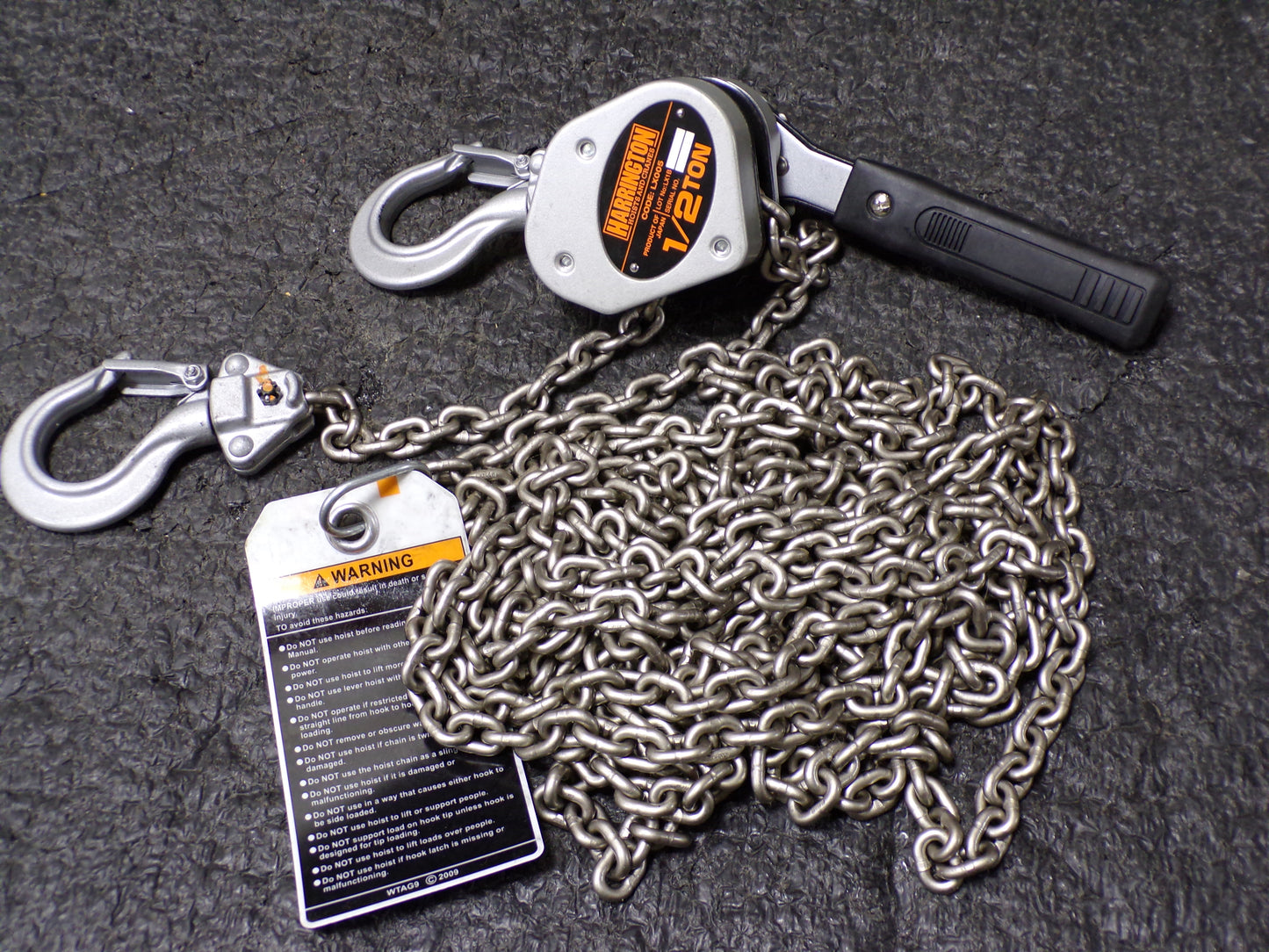

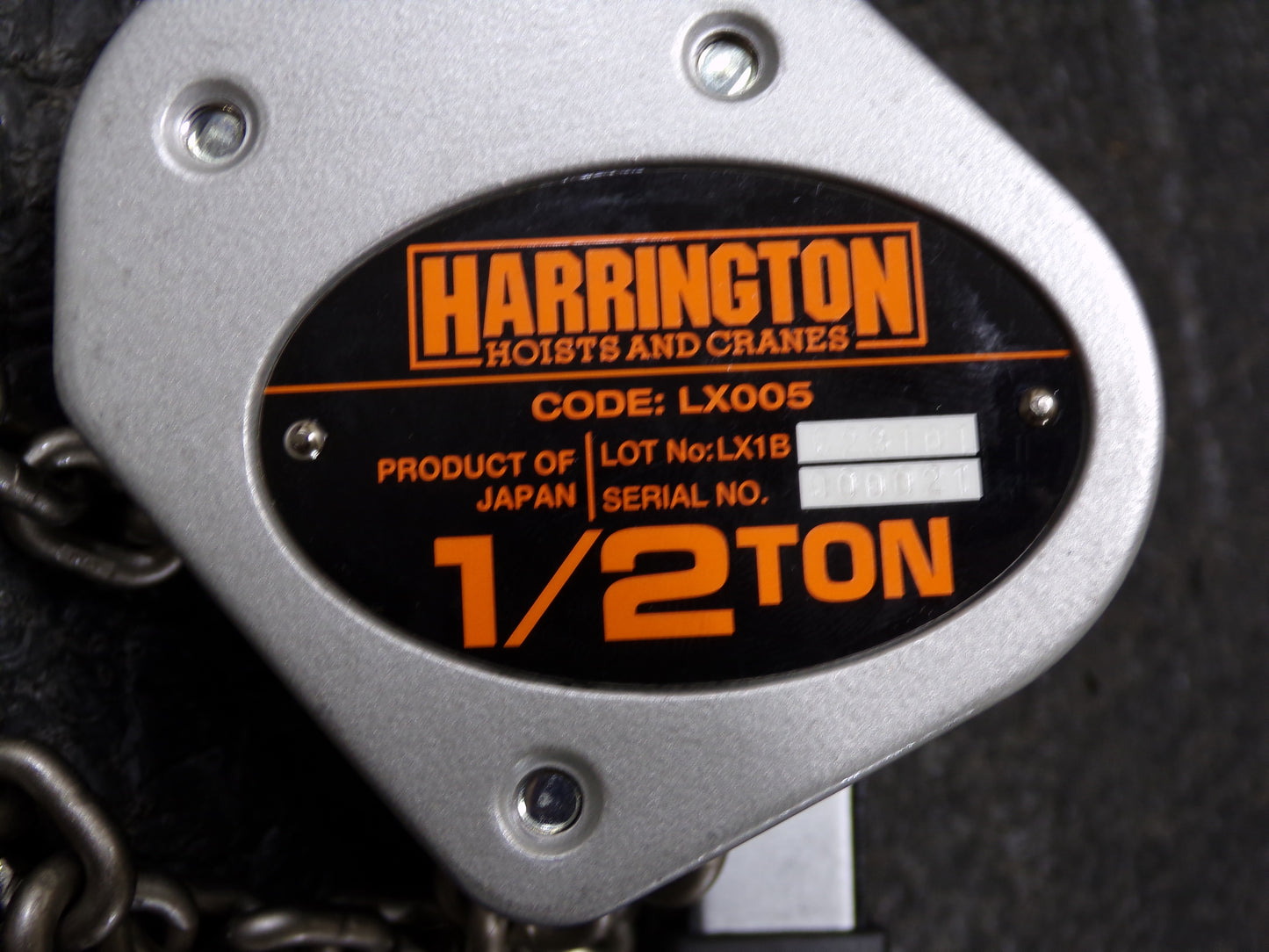

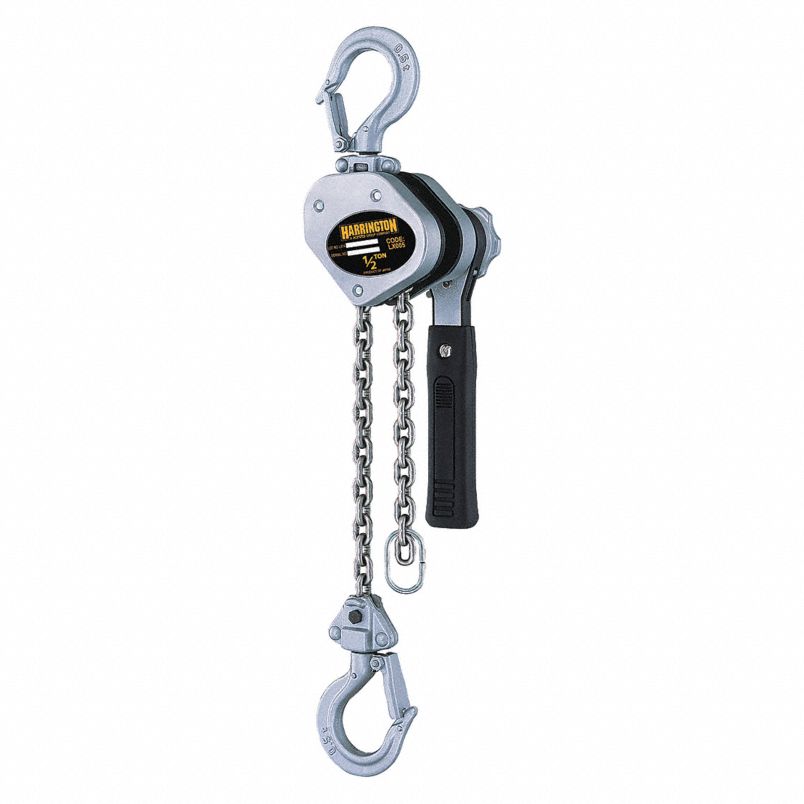

HARRINGTON Lever Chain Hoist, 1,000 lb Load Capacity, 20 ft Hoist Lift, 51/64 in Hook Opening (CR00663WTA17)


Shipping calculated at checkout

SKU: CR00663WTA17

Only 2 left!

Harrington Hoist and Crane Mini Ratchet 1,000-lb. load capacity chain puller is designed for fine adjustment of load tension. Features compact, low headroom for use in tight quarters. Has strong hook latches with notched tip and nickel-plated Grade 100 load chain. Made from rugged die-cast aluminum body with durable steel frame. This puller is load-tested and meets ANSI/ASME B30.21 standards.

    • Item: Lever Chain Hoist
    • Load Capacity: 1,000 lb
    • Hoist Lift: 20 ft
    • Min. Between Hooks: 9 3/4 in
    • Pull to Lift Rated Load: 62 lb
    • Reeving: 1
    • Lever Length: 7 1/8 in
    • Hook Opening: 51/64 in
    • Brake: Weston Style Load Brake
    • Chain: Nickel Plated
    • Chain Length: 21 ft
    • Finish: Electrostatic Enamel
    • Standards: ASME B30.21, ASMEHST-3
    • Includes: Load Chain
    • Hoist Overload Protection: No
  • Hoist Mount: Hook Mounted - No Trolley
