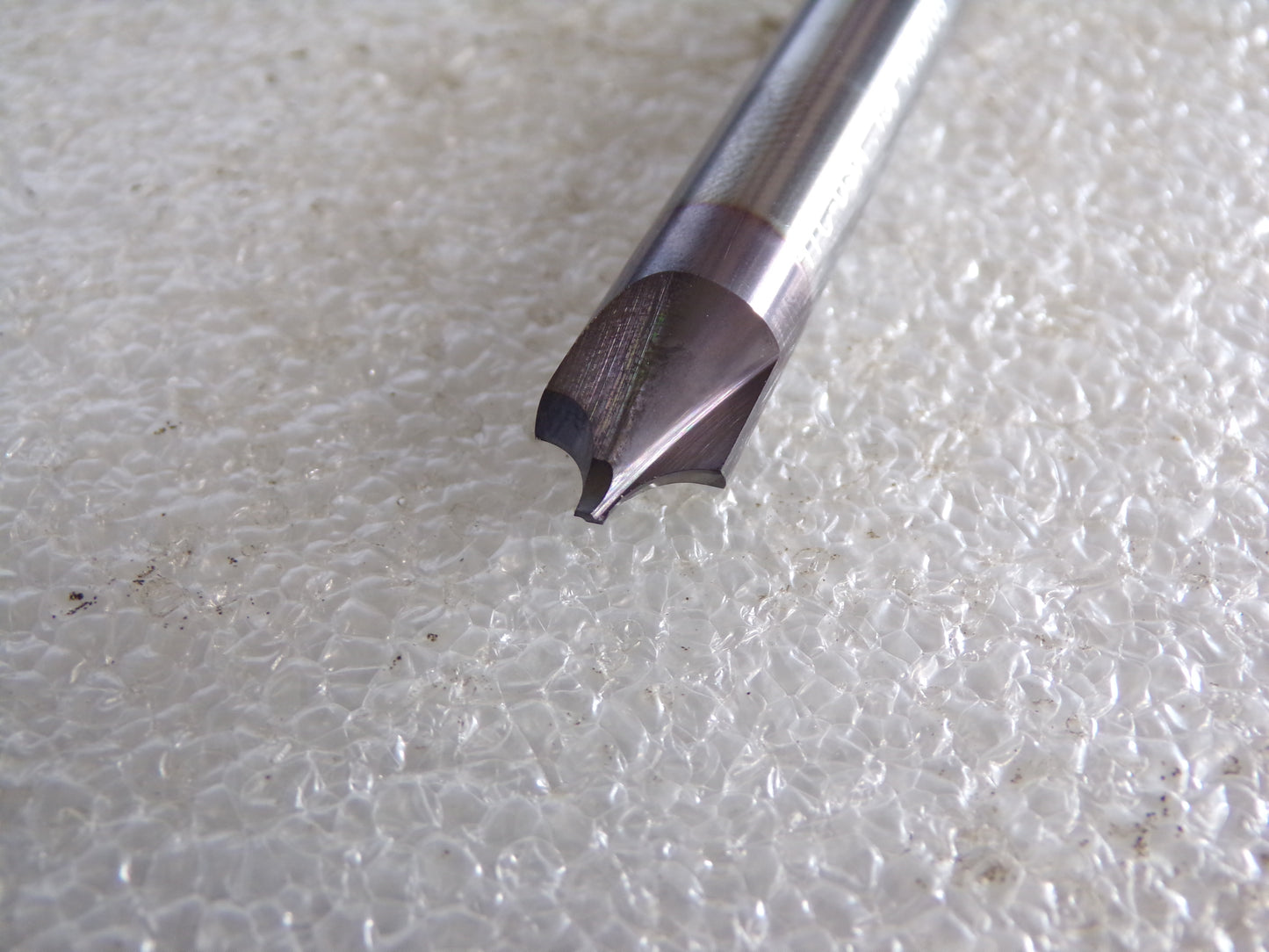

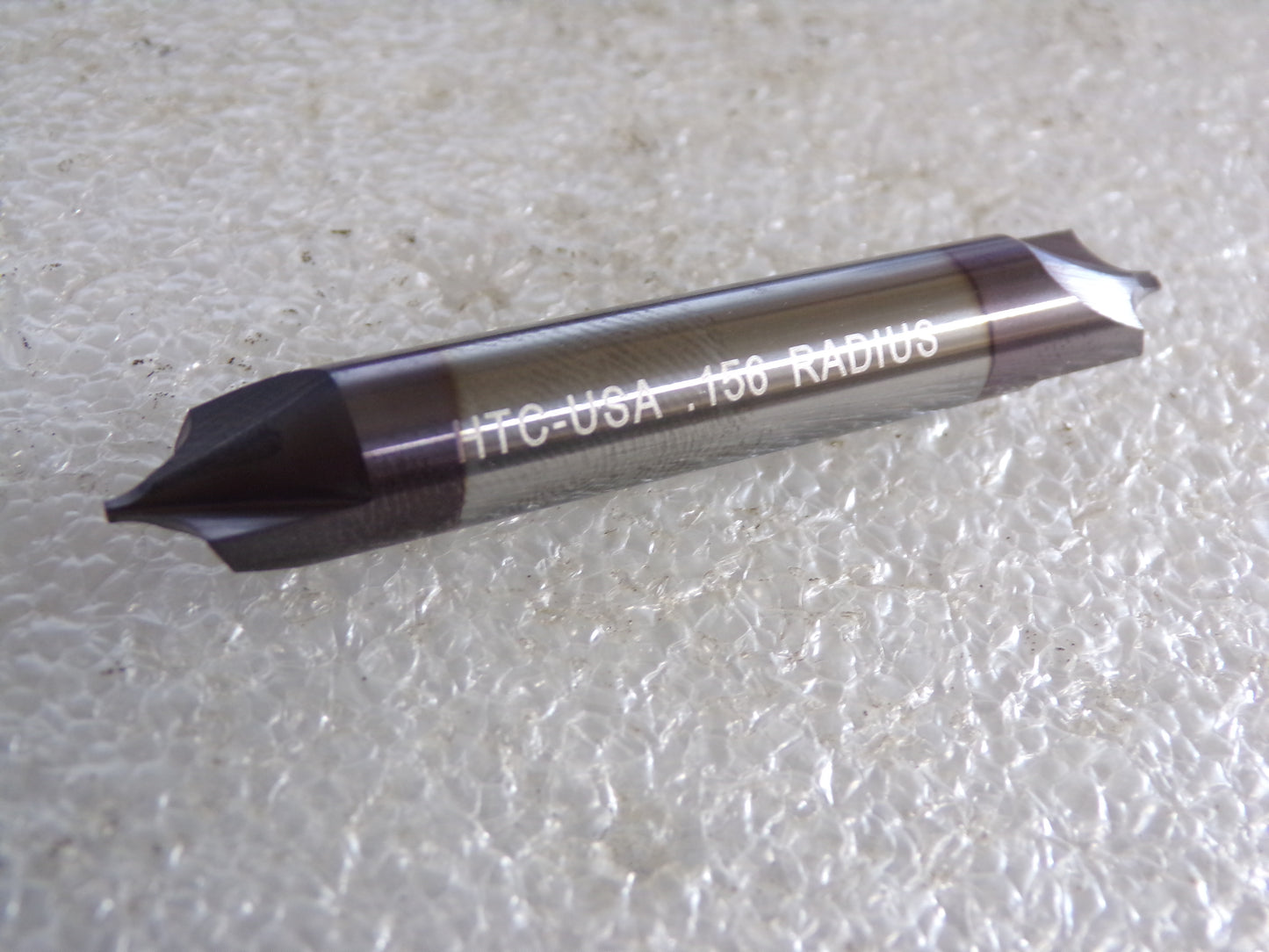

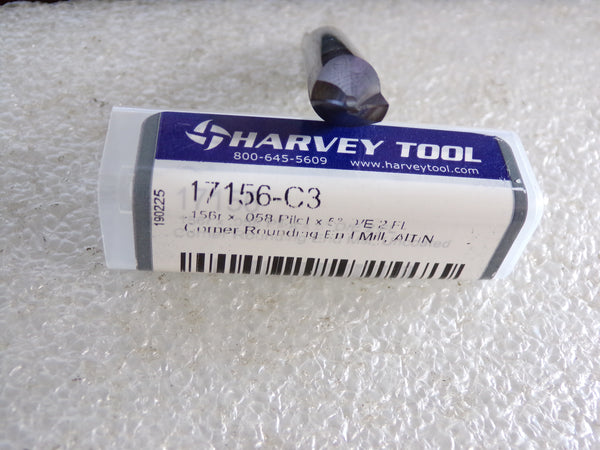

Harvey Tool Corner Rounding End Mill, Solid Carbide, Radius: 5/32 (0.1560) Diameter: 3/8 (0.375), Double End (CR00546WTA14)
$79.99
Shipping calculated at checkout
SKU: CR00546WTA14
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Aluminum titanium nitride (AlTiN) is one of the most abrasive resistant and hardest of the coatings. It is commonly used for machining aircraft and aerospace material, nickel alloy, stainless steel, titanium, cast iron and carbon steel.
Specs
Corner Rounding End Mills; Material: Solid Carbide ; Single or Double End: Double ; Radius (Inch): 5/32 ; Radius (Decimal Inch): 0.1560 ; Mill Diameter (Inch): 3/8 ; Mill Diameter (Decimal Inch): 0.3750
| Material | Solid Carbide |
| Single or Double End | Double |
| Radius (Inch) | 5/32 |
| Radius (Decimal Inch) | 0.1560 |
| Mill Diameter (Inch) | 3/8 |
| Mill Diameter (Decimal Inch) | 0.3750 |
| Number of Flutes | 2 |
| Finish/Coating | AlTiN |
| Shank Diameter (Inch) | 3/8 |
| Tip Diameter (Decimal Inch) | 0.0580 |
| Overall Length (Inch) | 2-1/2 |
