Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.

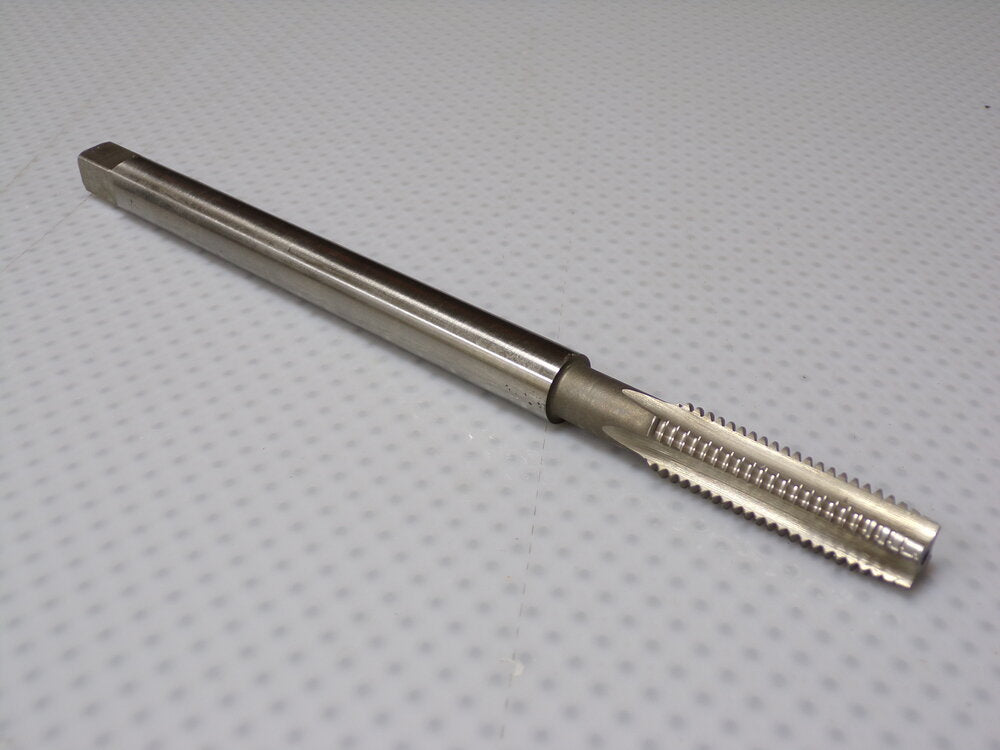

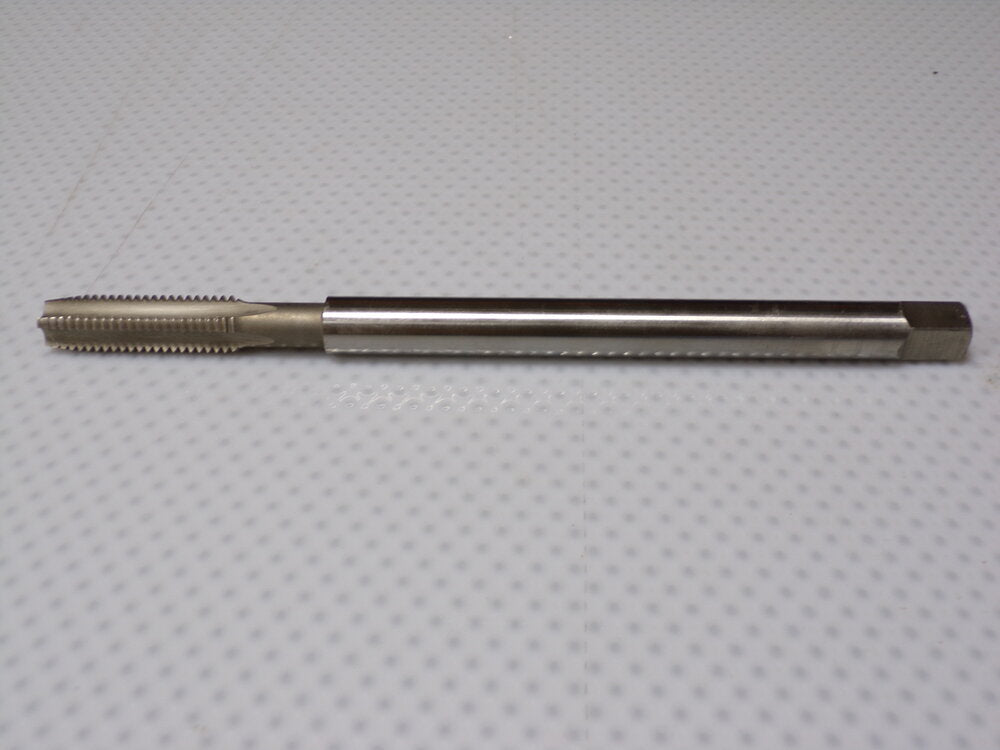

Hand taps are used to cut threads in blind or through holes. They are used by hand or in general purpose machine operations.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and non-ferrous materials.

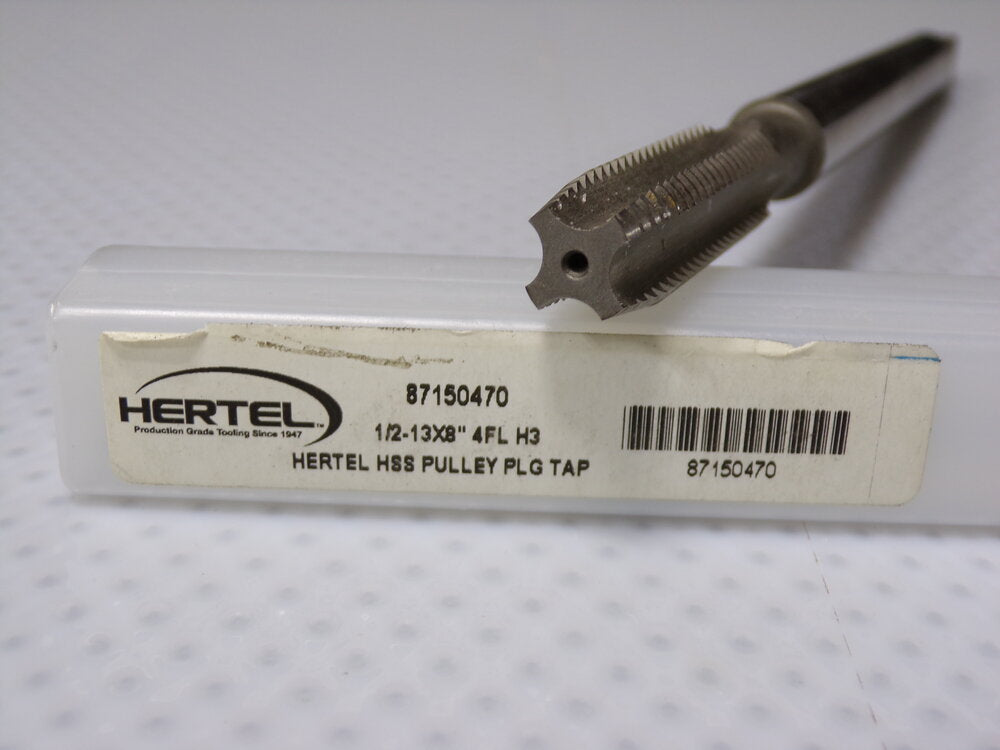

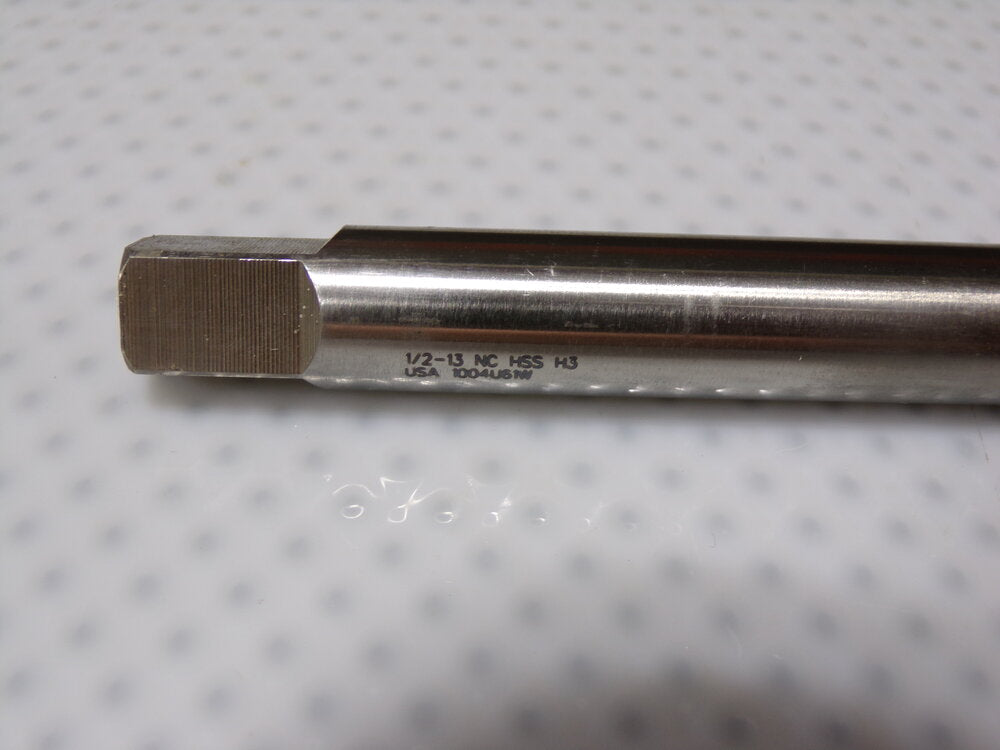

Thread Size (Inch): 1/2-13
Thread Limit: H3
Number of Flutes: 4
Overall Length (Inch): 8
Tap Type: Hand
Thread Standard: UNC
Shank Diameter (Decimal Inch): 0.5070
Material: High Speed Steel
