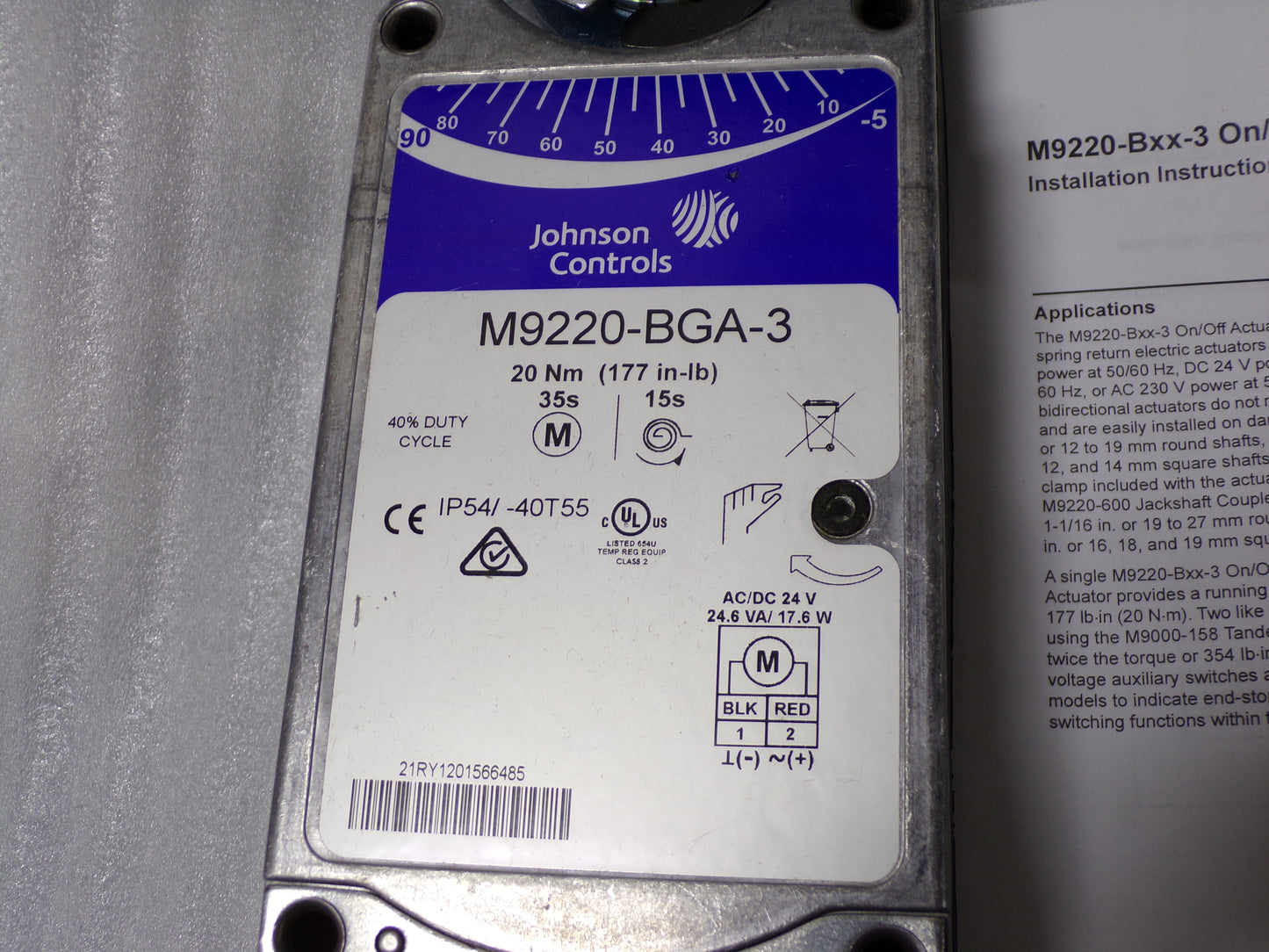

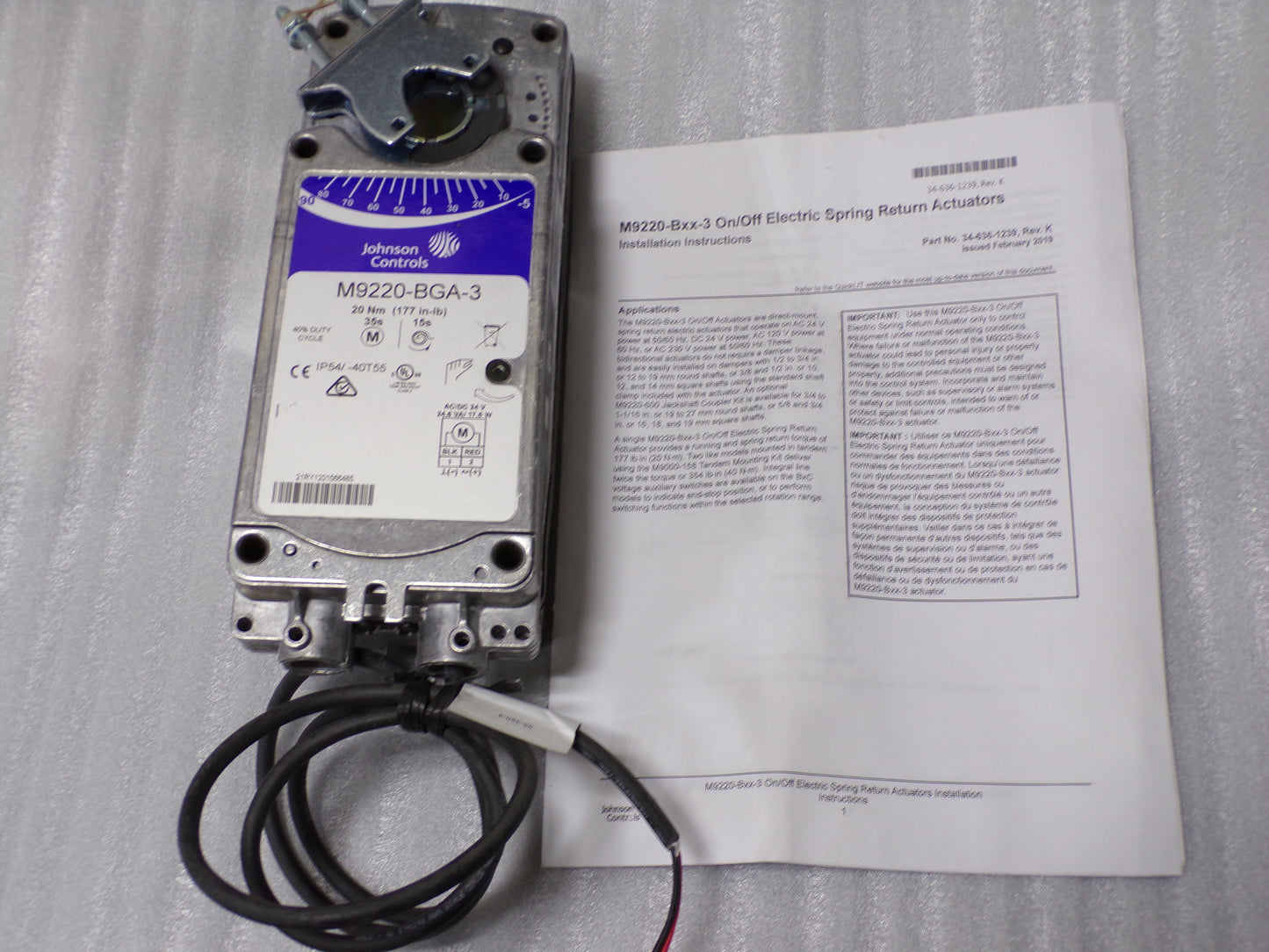

JOHNSON CONTROLS 24V AC/DC On/Off Electric Actuator, -40° to 131°F, 177 in-lb, 24 to 57 sec, Includes: Anti Rotation (CR00555WTA14)

Spring-return actuator features simple, direct coupling, with no damper linkage required, to save you time on installation and commissioning, and help improve system reliability. Can be configured to either spring open or spring closed. Two actuators may be required for some installations; check application requirements.

• Item: Electric Actuator
• Mounting Type: Direct Mount
• Spring Return: Yes

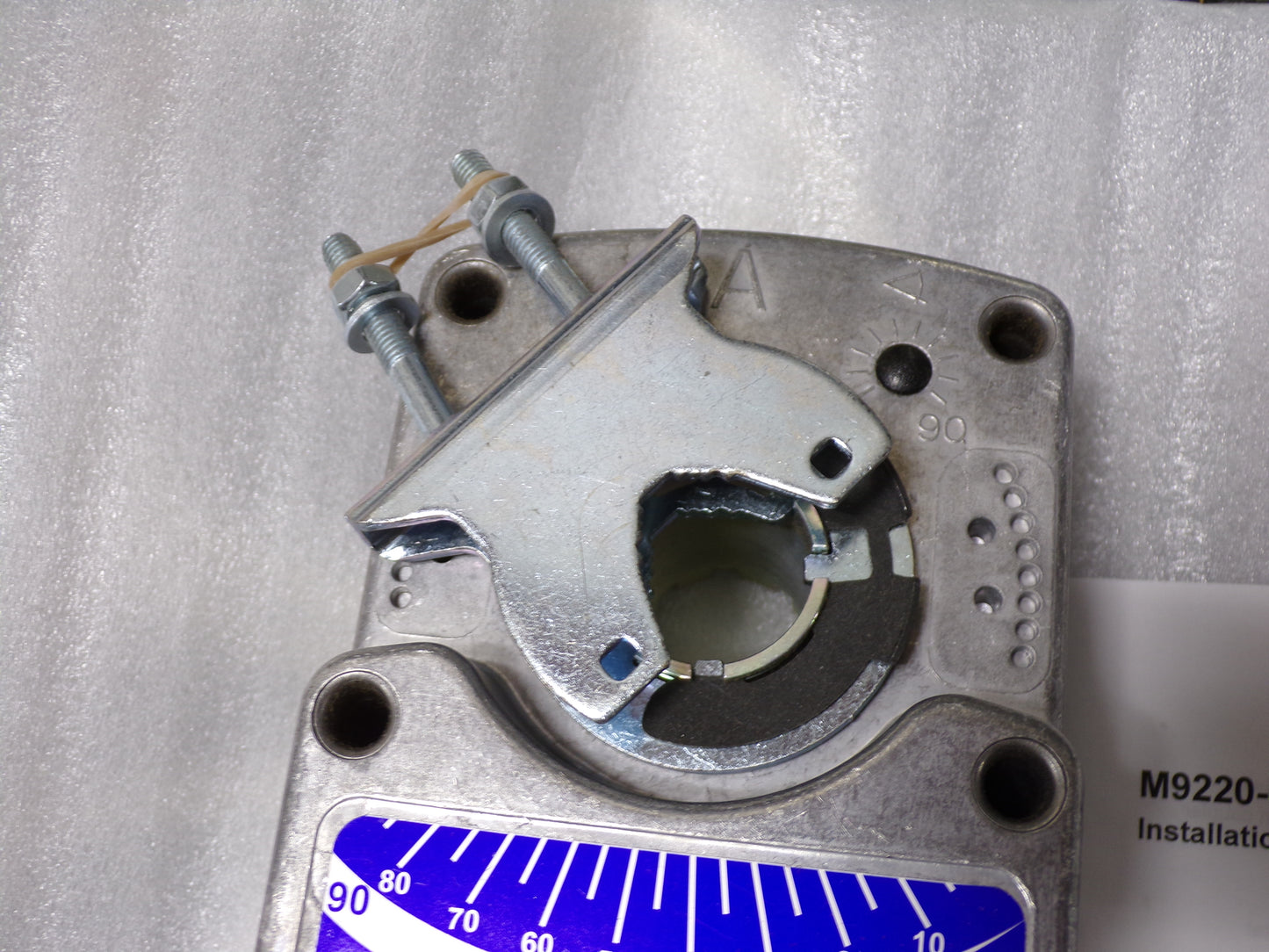

• Shaft Type: Self-Centering Clamping
• Torque: 177 in-lb
• Stroke Deg.: 90
• Height: 10 5/16 in
• Width: 4 in
• Depth: 3 3/16 in

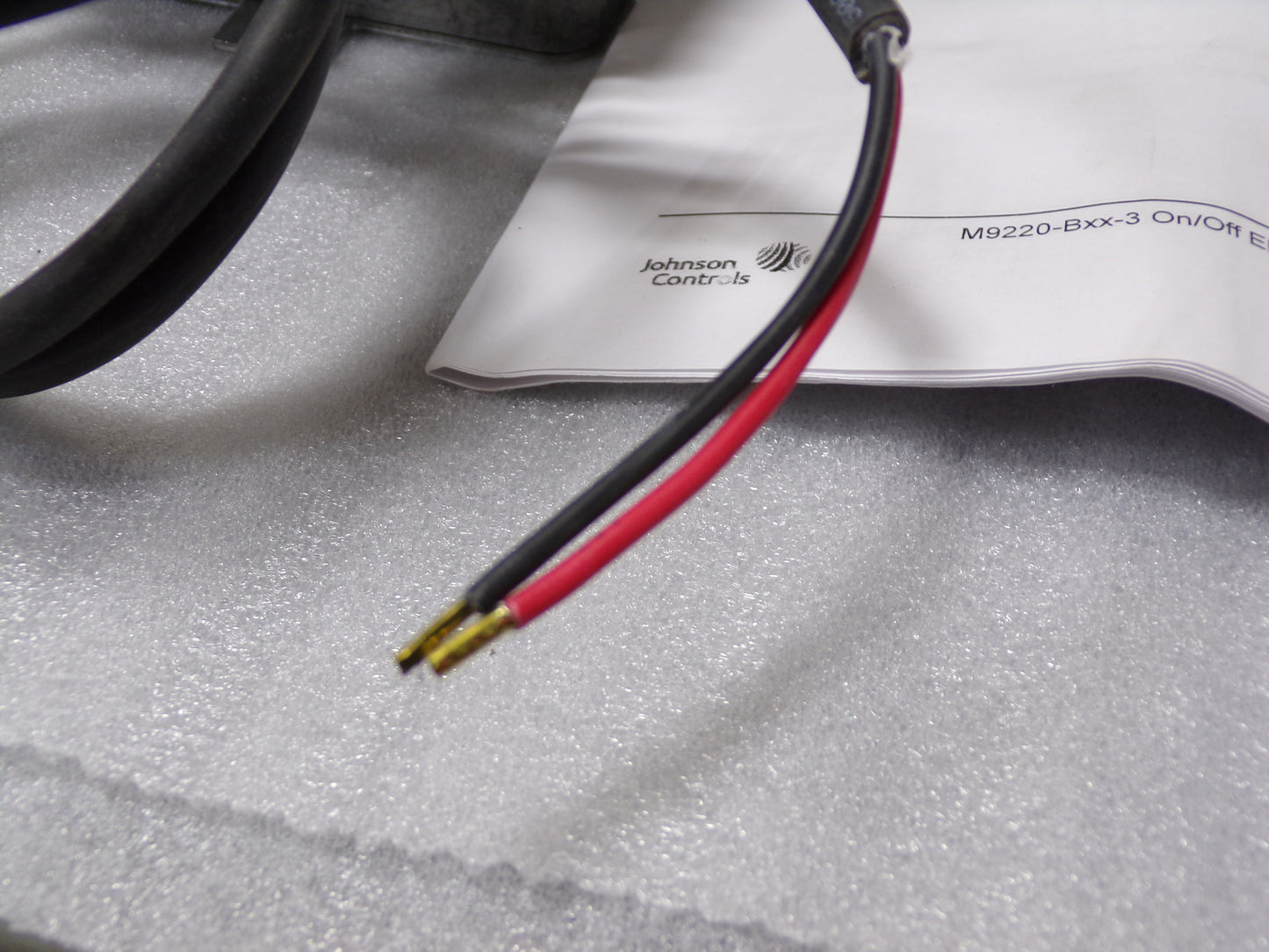

• Electrical Connections: Cable
• Signal Type: On/Off
• Motor Direction: CW or CCW
• Ambient Temp. Range: -40 Degrees to 131 Degrees F
• Power Consumption: 25VA
• Timing: 24 to 57 sec
• Voltage: 24V AC/DC
• For Use With: Dampers and Valves
• Replaces Honeywell Motors: Mfr. No. MS8120A1007
