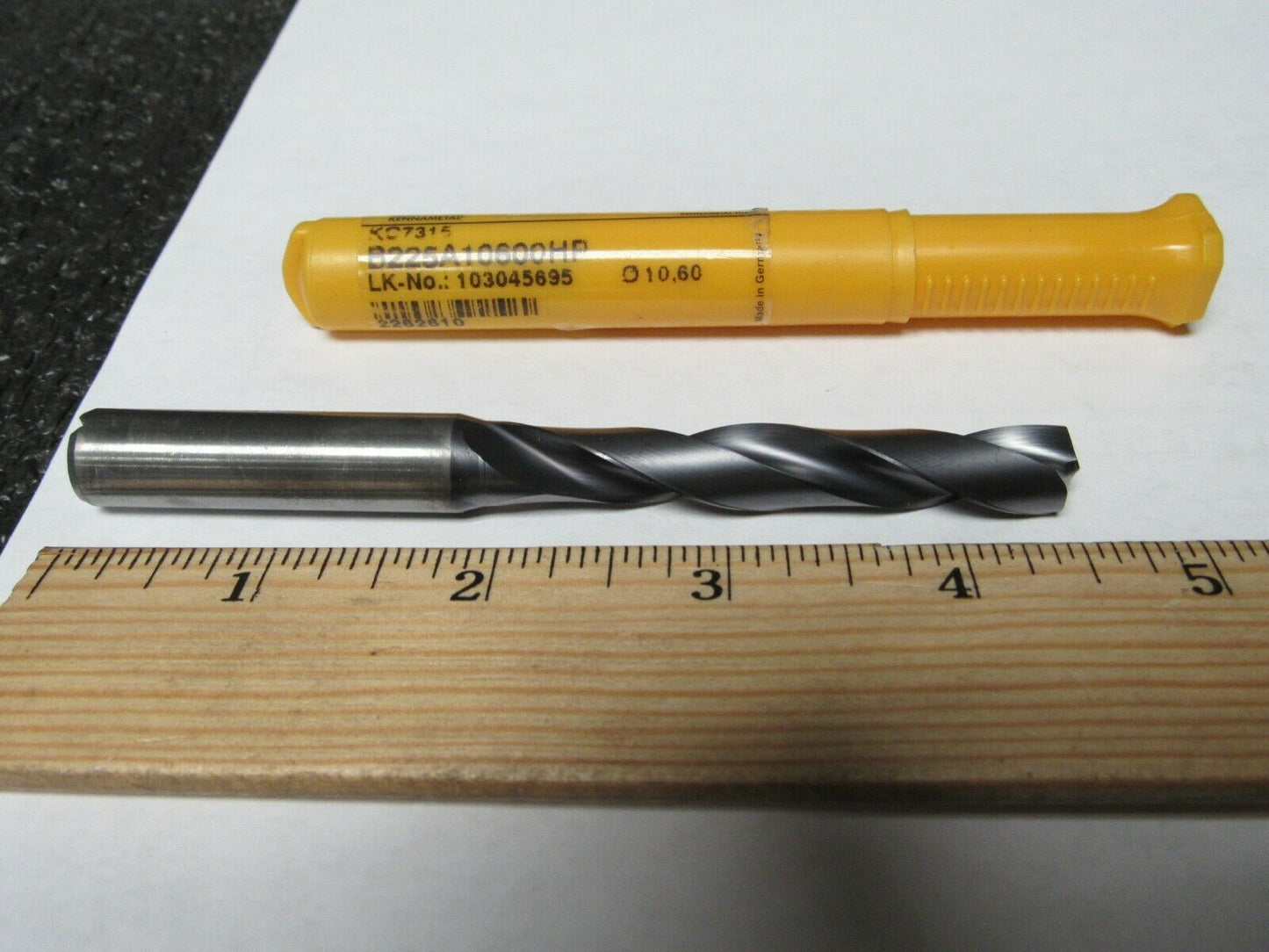

Kennametal, 10.6mm, 135°, Solid Carbide Jobber Drill, 2262610 (184213414339-BT35)
$124.99
Shipping calculated at checkout
SKU: 184213414339-BT35
Kennametal, 10.6mm, 135°, Solid Carbide Jobber Drill, 2262610
| Manufacturer: | Kennametal | |
|---|---|---|
| Mfr Part #: | 2262610 | |
| Drill Bit Size (mm) : | 10.60 | |
| Drill Bit Size (Decimal Inch) : | 0.4173 | |
| Drill Point Angle: | 135 | |
| Drill Bit Material: | Solid Carbide | |
| Drill Bit Finish/Coating: | TiAlN | |
| Flute Type: | Spiral | |
| Cutting Direction: | Right Hand | |
| Shank Type: | Straight | |
| Coolant Through: | Coolant Through | |
| Flute Length (mm): | 71.00 | |
| Overall Length (mm): | 118.00 | |
| Point Type: | Standard | |
| Shank Diameter (mm): | 12.00 | |
| Maximum Drilling Depth (mm): | 56.00 | |
| Spiral Type: | Regular Spiral | |
| Shank Length (mm): | 45.00 | |
| Specification Designation: | DIN | |
| Drill Point Length (mm): | 1.96 | |
| Web Configuration: | Tapered | |
| Drill Bit Diameter Tolerance (mm): | 0.007 to 0.025 | |
| Number of Flutes: | 2 | |
| Web Thinning: | Web-Thinned | |
| Specification Number: | DIN 6537L | |
| Drill Bit Grade: | Dynapoint High Performance | |
| Material Grade: | KC7315 | |
| Series/List: | B225A | |
| Flute Length (Decimal Inch): | -- |
