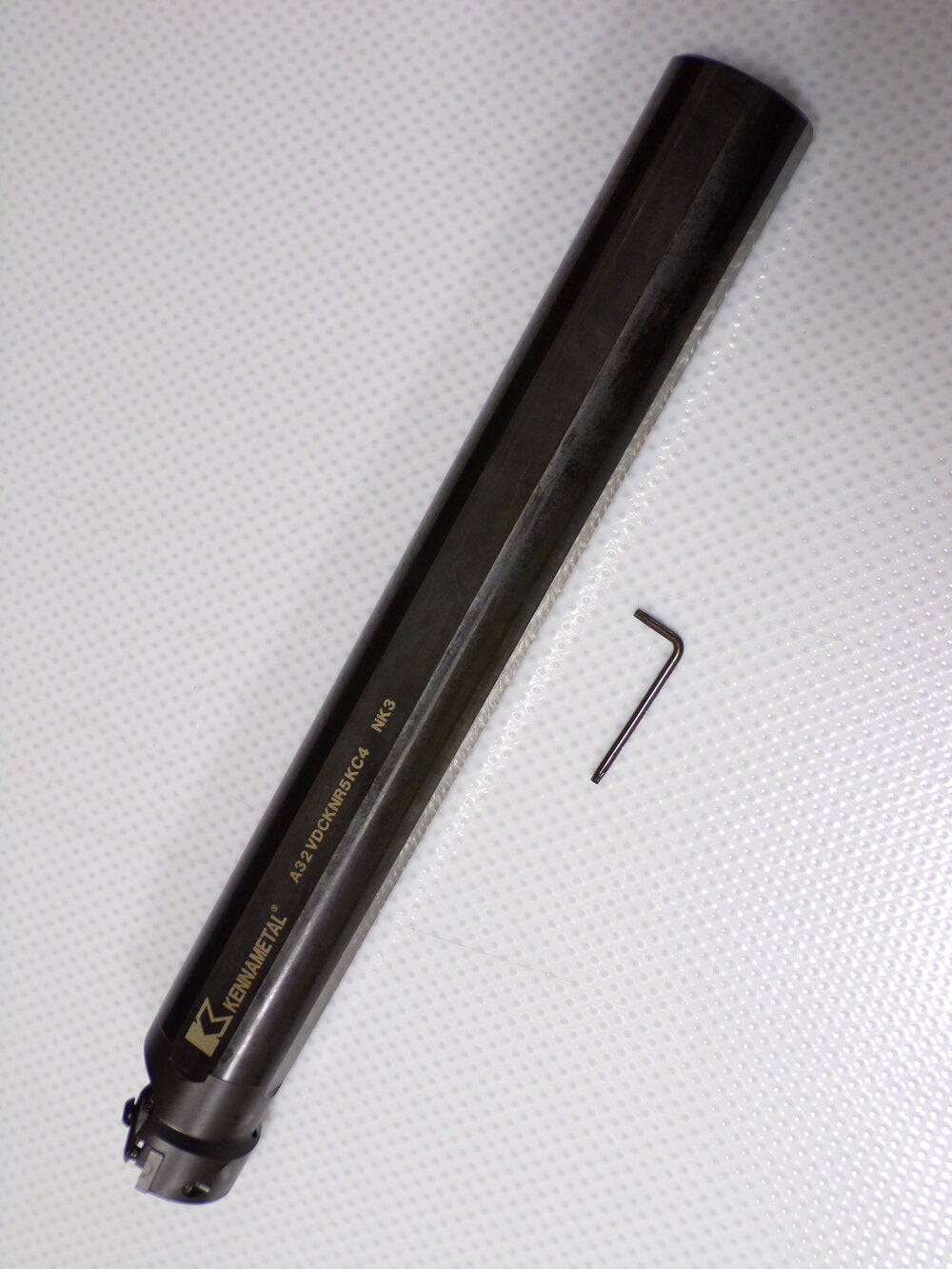

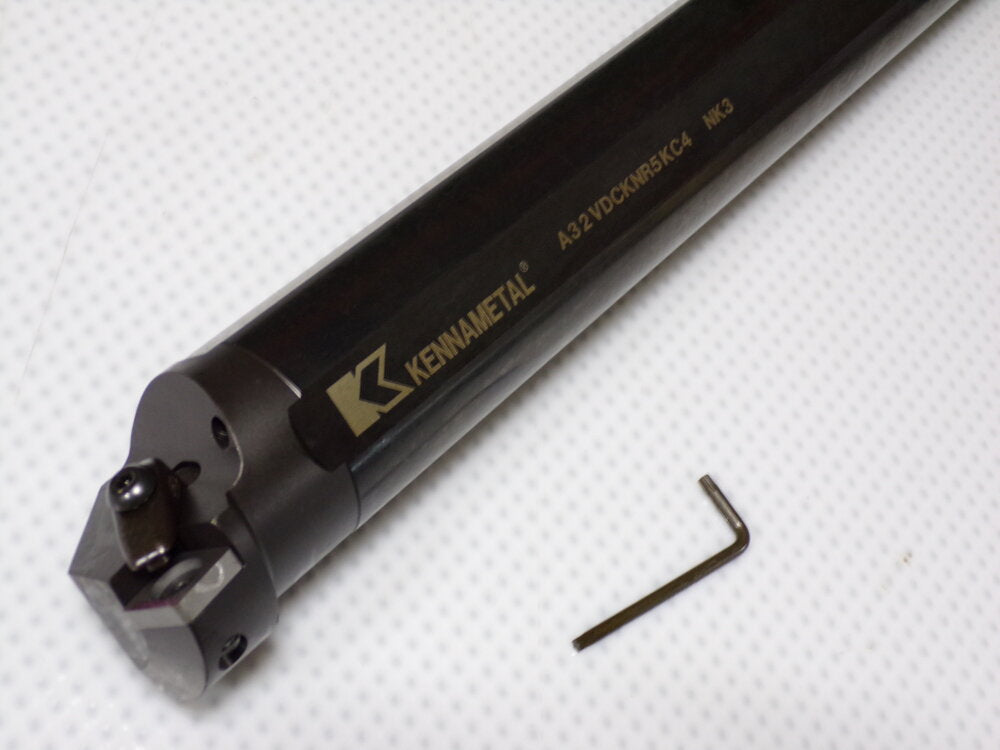

Kennametal 2408492 Boring Bar, 2.5 Inch Min Bore Diameter, 16" L (SQ7553856WT14)

$129.99 $244.99

Shipping calculated at checkout

SKU: SQ7553856WT14

Only 1 left!

Kennametal - 2.5 Inch Min Bore Diameter, 2 Inch Shank Diameter, Right Hand Holder, A-DCKN-KC, 16 Inch Long, Steel, Through Coolant, Indexable Boring Bar

CN. Insert Compatibility, Clamp Holding Method

Toolholder Style: A-DCKN-KC

Series: Kenclamp

Minimum Bore Diameter (Decimal Inch): 2.5000

Hand of Holder: Right Hand

Overall Length (mm): 406.40

Overall Length (Inch): 16

Overall Length (Decimal Inch): 16.0000

Shank Diameter (Inch): 2

Shank Diameter (Decimal Inch): 2.0000

Insert Compatibility: CN..

Through Coolant (Yes/No): Yes

Multi-Use Tool (Yes/No): No

Insert Holding Method: Clamp

Rake: Negative

Lead Angle (° ): 15

Center to Cutting Edge (Decimal Inch): 1.2810

Insert Thickness (Inch): 3/16

Insert Inscribed Circle (Inch): 1/2

Rake Angle (° ): 5

Coolant Hole Thread Size (Inch): 1/4-18 NPT

Complete Insert Compatibility: CN.. 432

Toolholder Material: Steel
