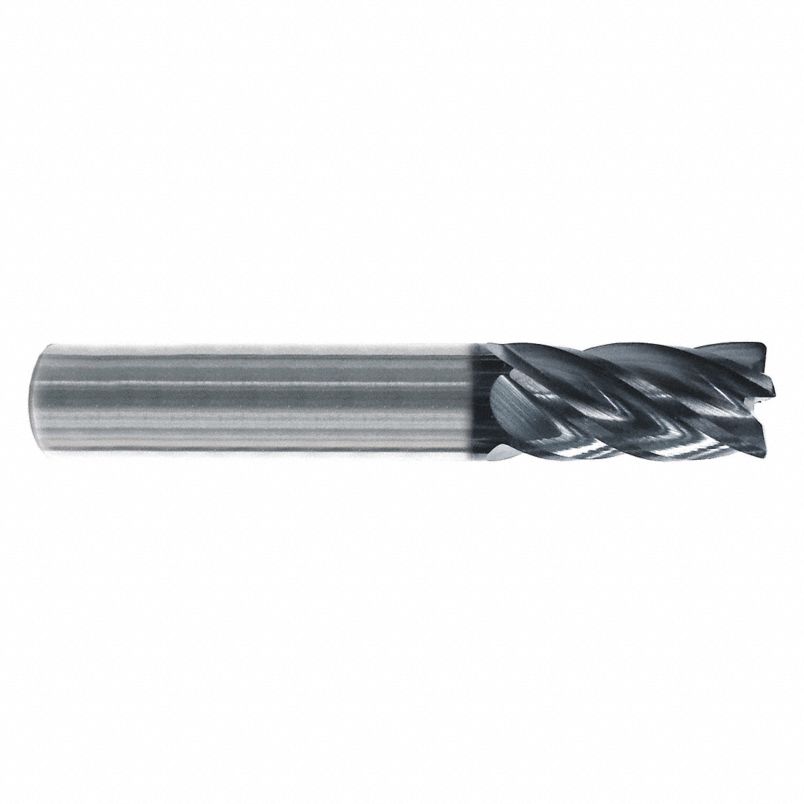

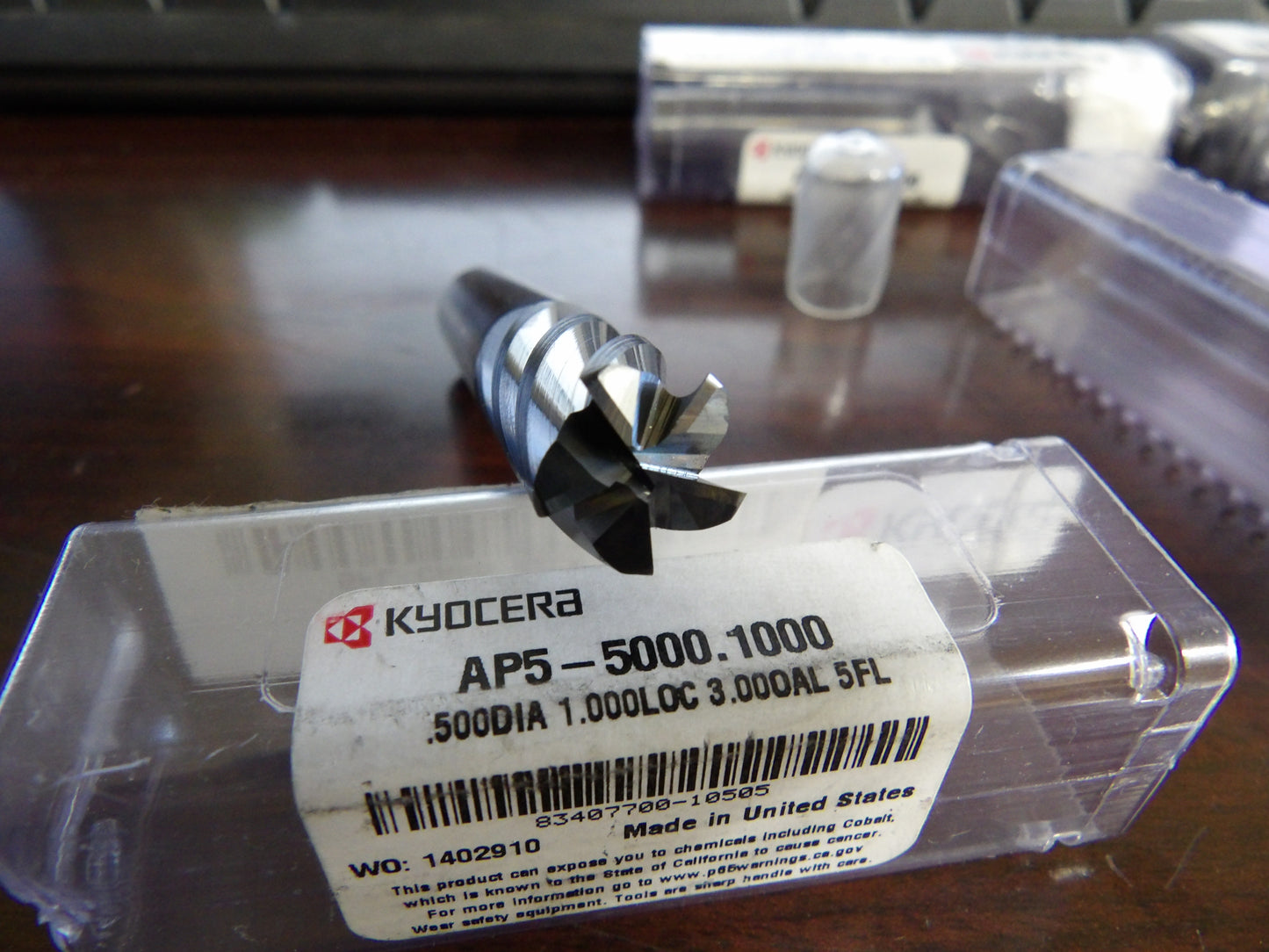

KYOCERA AP5-5000.1000 1/2" Size, 1" LOC, 5 Flute, Solid Carbide Finishing End Mill (CR00772WTA18)
$49.99
Shipping calculated at checkout
SKU: CR00772WTA18
| Brand | KYOCERA |
|---|---|
| Shank Diameter | 1/2" |
| Overall Length | 3" |
| Size Type | Fractional |
| Size | 1/2" |
| No. of Flutes | 5 |
| Length of Cut | 1" |
| Tool Material | Solid Carbide |
| Finish Coating | AlCrN |
| Single or Double End | Single |
| Helix Angle | Variable |
| Center Cutting | Yes |
| Corner Radius | .025"-.030" |
| Model # | AP5-5000.1000 |
| Application | High Performance Milling |
| Coating | AlCrN |
| Cutting Direction | Right Hand |
| Cutting End Shape | Square |
| First Choice For: | High Temp Exotic Alloys |
| Flute Shape | Spiral Flute |
| Industry Standard | AP5 |
| Length Type | Standard Length |
| Prop. 65 | Yes |
| Series | AP5 |
| Shank Length | 1/2" |
| Shank Style | Straight Shank |
| Tolerance_Cutting Diameter | +0.0000"/-0.0020" |
| Tolerance_Shank Diameter | +0.0001" / -0.0004" |
| Weight | 0.27800000000000002 |
| Workpiece Material | Excellent for hardened steel 55Hrc to 65Hrc, nickel inconel alloys, stainless steel & carbon steel. |
| Workpiece Material Range | Steel, Stainless Steel, High-Temp Exotic Alloys, Non-Ferrous, Cast Iron, Hard Materials, Plastics |
| Country of Origin | UNITED STATES OF AMERICA |
DETAILS
Best performance is obtained by increasing feed rates 10-20% faster than other brand 5 flute end mills
BENEFITS
- Perform better if you run them at faster infeed rates.
- Unequal flutes reduce chatter.
APPLICATIONS
High Performance MillingFEATURES
- Variable helix.
- Supplied with AlCrN coating and has a maxium working temperature of 2,010°F.
- Silver grey coated finish.
- Micrograin carbide.
