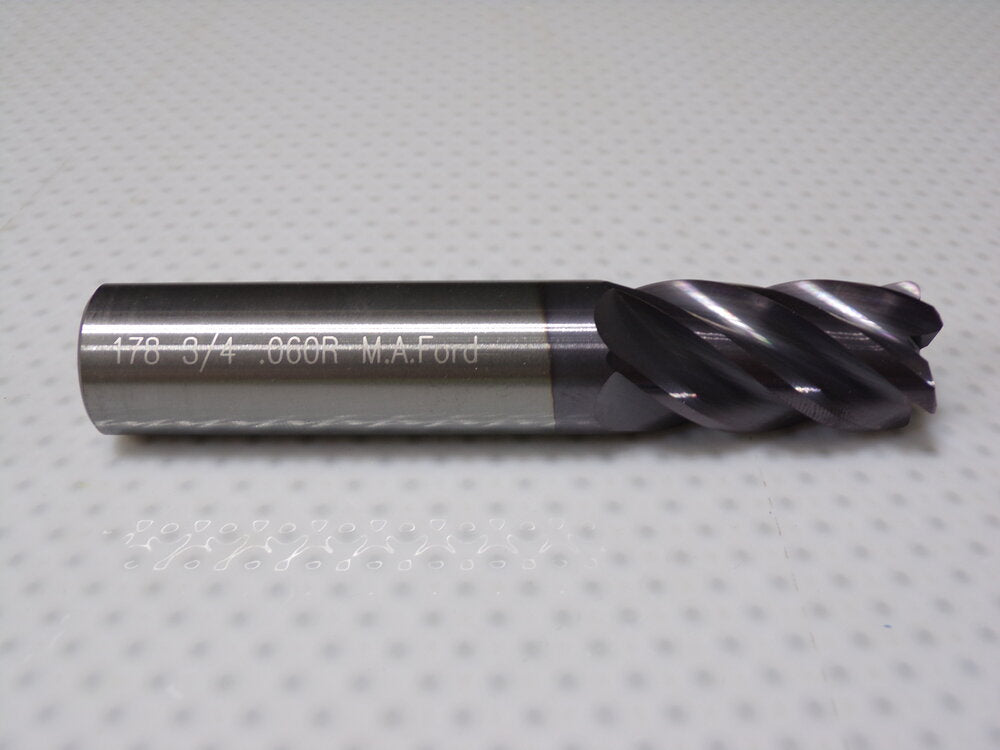

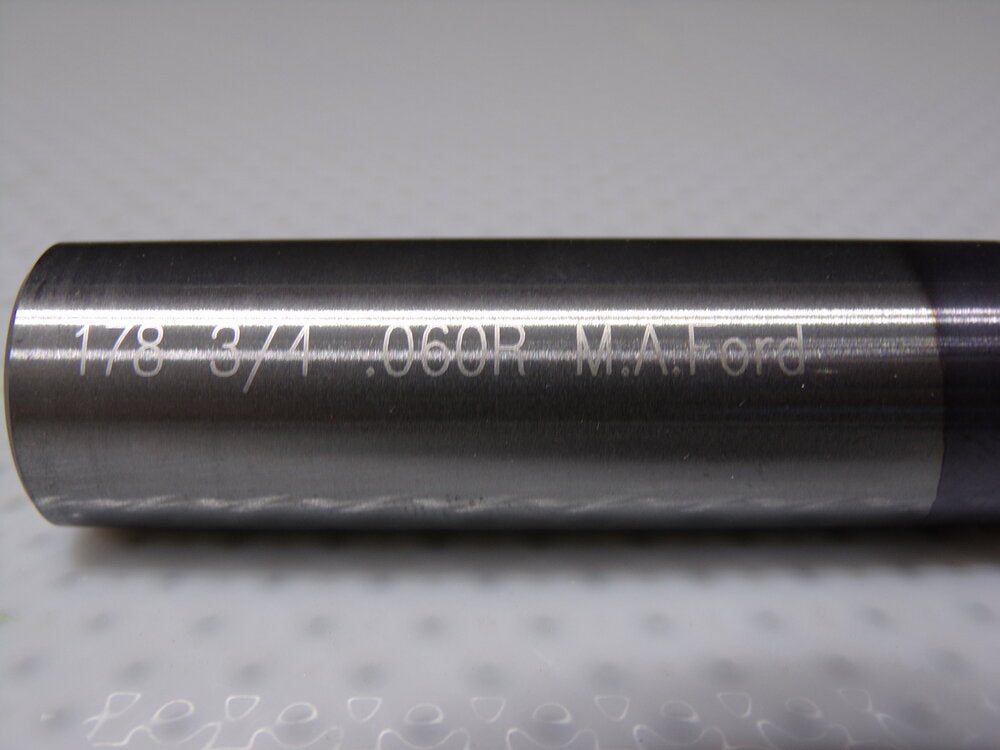

M.A. Ford 3/4" Diam 5 Flute Single End Solid Carbide 0.06" Corner Radius End Mill (SQ6988396WT08)

M.A. Ford

3/4" Diam 5 Flute Single End Solid Carbide 0.06" Corner Radius End Mill

ALtima\xAE, 4" OAL, 1-1/2" LOC, 3/4" Shank Diam, 38° Helix, RH Cut, RH Flute, Centercutting

Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

ALtima is a stronger designed AlTiN coating. is commonly used on hardened steels, stainless steel, titanium alloy and other difficult-to-machine materials. ALtima is a proprietary coating exclusive to M.A. Ford Mfg. Co., Inc.

Specs

Mill Diameter (Inch): 3/4

Mill Diameter (Decimal Inch): 0.7500

End Type: Corner Radius

Corner Radius (Decimal Inch): 0.0600

Number of Flutes: 5

Material: Solid Carbide

Finish/Coating: ALtima

Length of Cut (Inch): 1-1/2

Length of Cut (Decimal Inch): 1.5000

Shank Diameter (Inch): 3/4

Overall Length (Inch): 4

Flute Type: Spiral

Cutting Direction: Right Hand

Helix Angle: 38

Variable Index: Yes

Variable Helix: No

Single or Double End: Single

Centercutting: Yes

Flute Direction: Right Hand

Extended Reach: No

Series/List: 178
