MARATHON MOTORS 1-1/2 HP General Purpose, Capacitor-Start, 3450 Nameplate RPM, Voltage 115/230, Frame 56 (SQ1019969WT35)

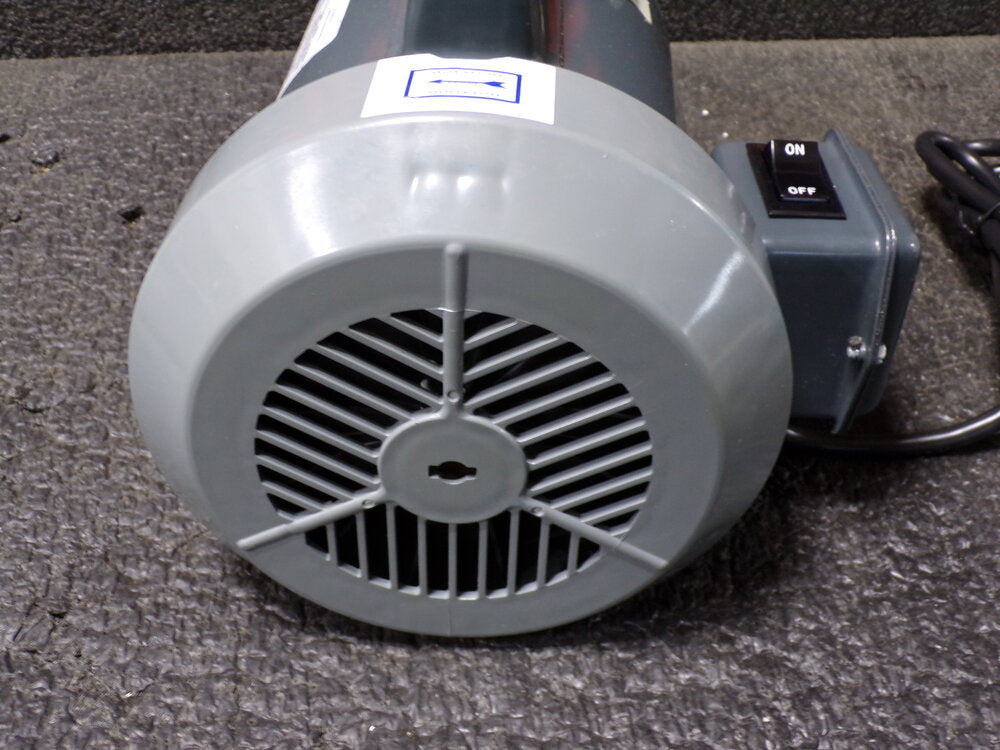

Designed for air moving equipment, this general purpose motor helps keep fans moving. It features a totally enclosed, fan-cooled enclosure design, which helps resist contamination by preventing air from moving freely between the inside and outside of the frame. It employs a fan to blow outside over the motor to stay cool, rather than allowing outside air to freely circulate through the interior of the motor.

• Item: General Purpose Motor

• Motor Application: General Application

• Motor Design: Capacitor-Start

• Motor Enclosure Design: Totally Enclosed Fan-Cooled

• HP: 1 1/2 hp

• Nameplate RPM: 3450

• Frame: 56

• Voltage: 115/230

• Hz: 60

• Phase: 1

• Full Load Amps: 16.4/8.2

• No. of Speeds: 1

• Motor Mounting Type: Rigid Base

• Motor Mounting Position: Horizontal

• Motor Thermal Protection: Manual

• Ins. Class: B

• Motor Service Factor: 1

• Motor Bearings: Ball

• Motor Frame Material: Rolled Steel

• Max. Ambient Temp.: 40 Degrees C

• Motor Shaft Rotation: CW/CCW

• Shaft Dia.: 5/8 in

• Shaft Length: 1 7/8 in

• Length Less Shaft: 11 1/16 in

• Overall Length: 12 15/16 in

• Motor Shaft Design: Keyed

• RPM Range: 3001-3600

• Standards: CSA (MC236833), UL (E14133)

• Duty: Continuous

• Motor Efficiency Group: Standard Efficient

• Nominal Efficiency: 72.5 %

• Inverter Rated: No

• RPM Group: 3001-3600
