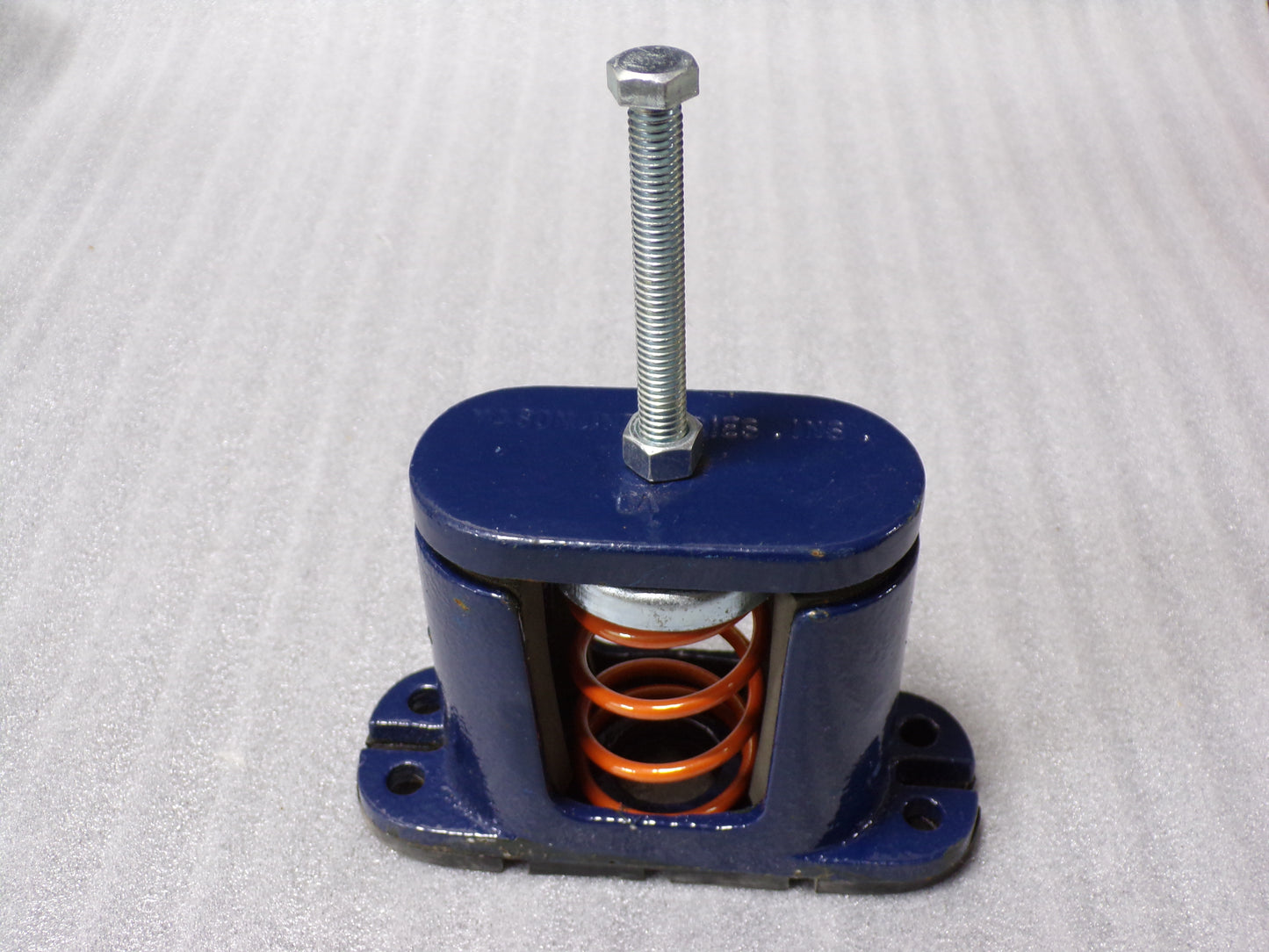

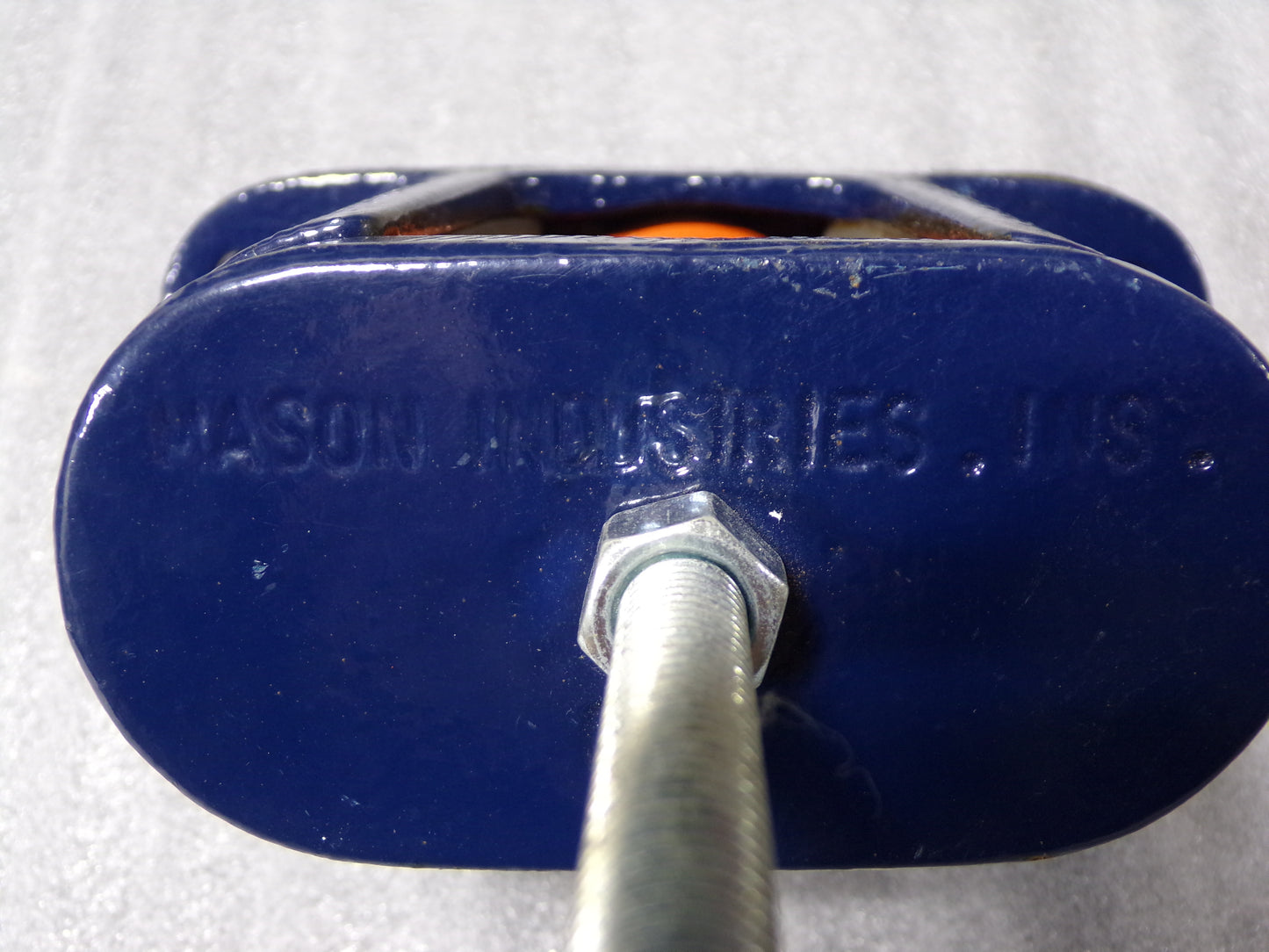

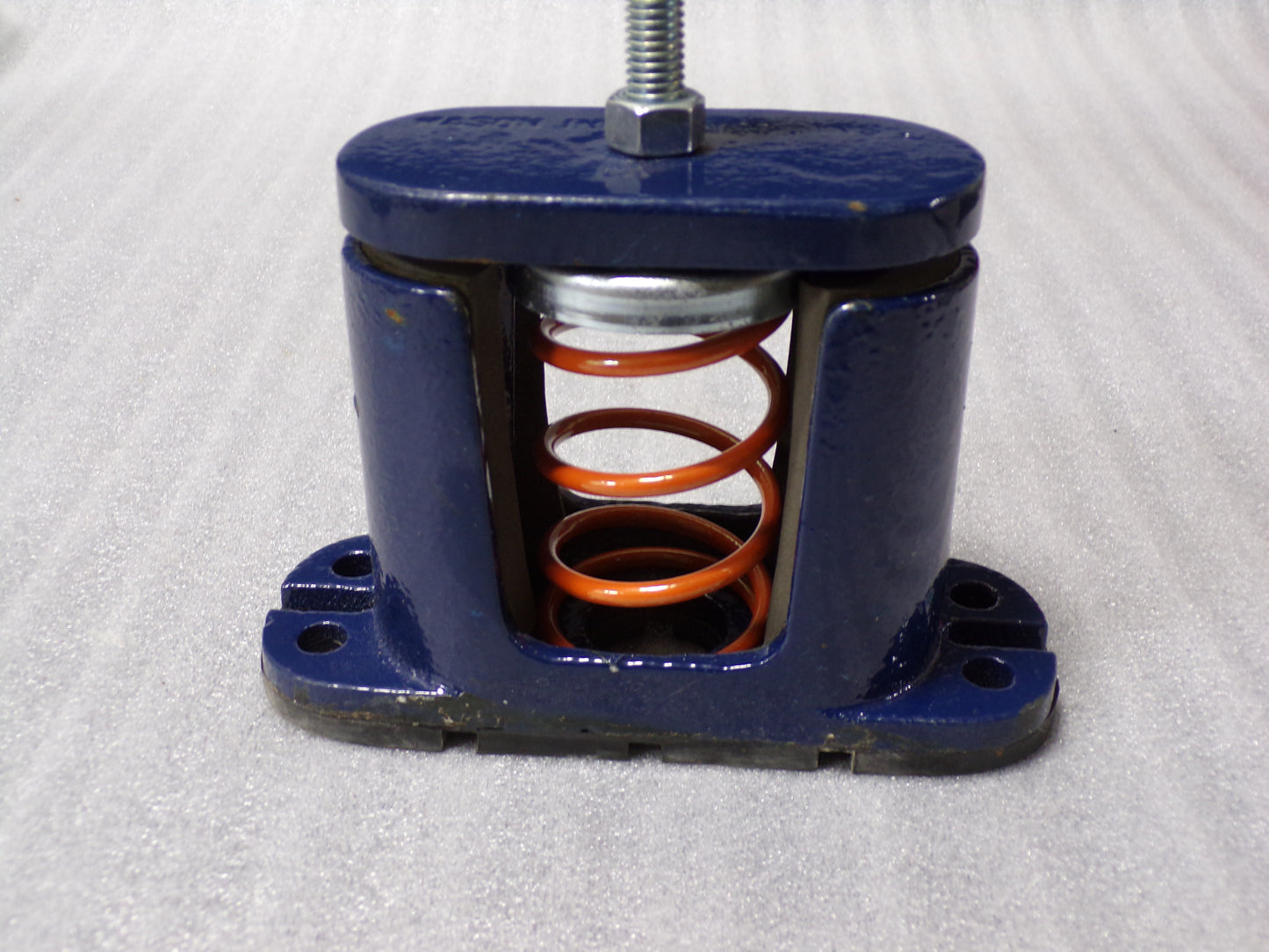

MASON Floor Mount Vibration Isolator: Spring, 35 to 75 lb, 0.75 in to 1.50 in, 4 1/2 in Ht, Orange (CR00598WTA15)

Helps reduce the effect of vibrations from heavy machinery on facility structure and on the operation of nearby equipment. As deflections increase, the isolator performance improves. Bolt to beam; nonskid pads reduce the need for bolting to floors. Sponge rubber guides improve stability.

• Item: Floor Mount Vibration Isolator
• Isolator Type: Spring
• Capacity Range: 35 to 75 lb
• Deflection: 0.75 in to 1.50 in
• Height: 4 1/2 in
• Width: 2 1/8 in
• Spring Color: Orange
• Bolt Size: 3/8 x 4 in
• Dimension A: 4 in
• Dimension T: 1/2 in
• Dimension SW: 5/16 in
• Dimension HCL: 4 3/4 in
• Dimension HCW: 1 in
• Dimension MBD: 1/4 in
• Dimension SBC: 5 in
• Dimension H: 4 1/2 in
• Dimension L: 5 3/4 in
