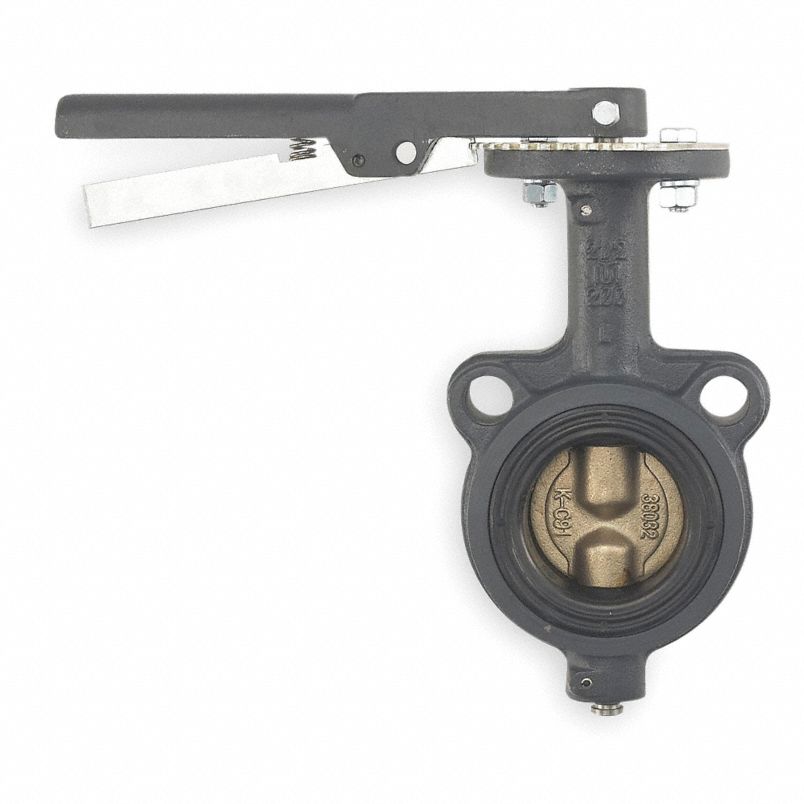

MILWAUKEE VALVE Wafer-Style Butterfly Valve, Cast Iron, 200 psi, 6 in Pipe Size, CW223E 6 (CR00513WTA04)


Shipping calculated at checkout

SKU: CR00513WTA04

Only 1 left!

Cast- and Ductile-Iron Butterfly Valves

• Max. pressure: 200 psi EPDM liner temp. range: -30° to 250°F Buna liner temp. range: 10° to 180°F Viton® liner temp. range: -20° to 300°F
Designed for commercial mechanical and industrial processes, including hot and cold domestic water, HVAC, condenser and chilled water, and compressed air and vacuum services.
Meet MSS-SP67, MSS-SP25, and API-609.
Heavy-duty, low-torque valves are dead-end service rated at 150 psi; 200 psi for Buna and EPDM lug style.

  • Item: Butterfly Valve
  • Style: Wafer
  • Body Material: Cast Iron
  • Max. Water Pressure: 200 psi
  • Pipe Size: 6 in
  • Temp. Range: -30 to 250 Degrees F
  • Liner Material: EPDM
  • Disc Material: Aluminum/Bronze
  • Handle Type: Lever
  • Number of Bolt Holes: 2
  • Bolt Circle Dia.: 9 1/2 in
  • Lug Dia.: 3/4-10
  • Standards: MSS-SP25 And API-609, MSS-SP67
