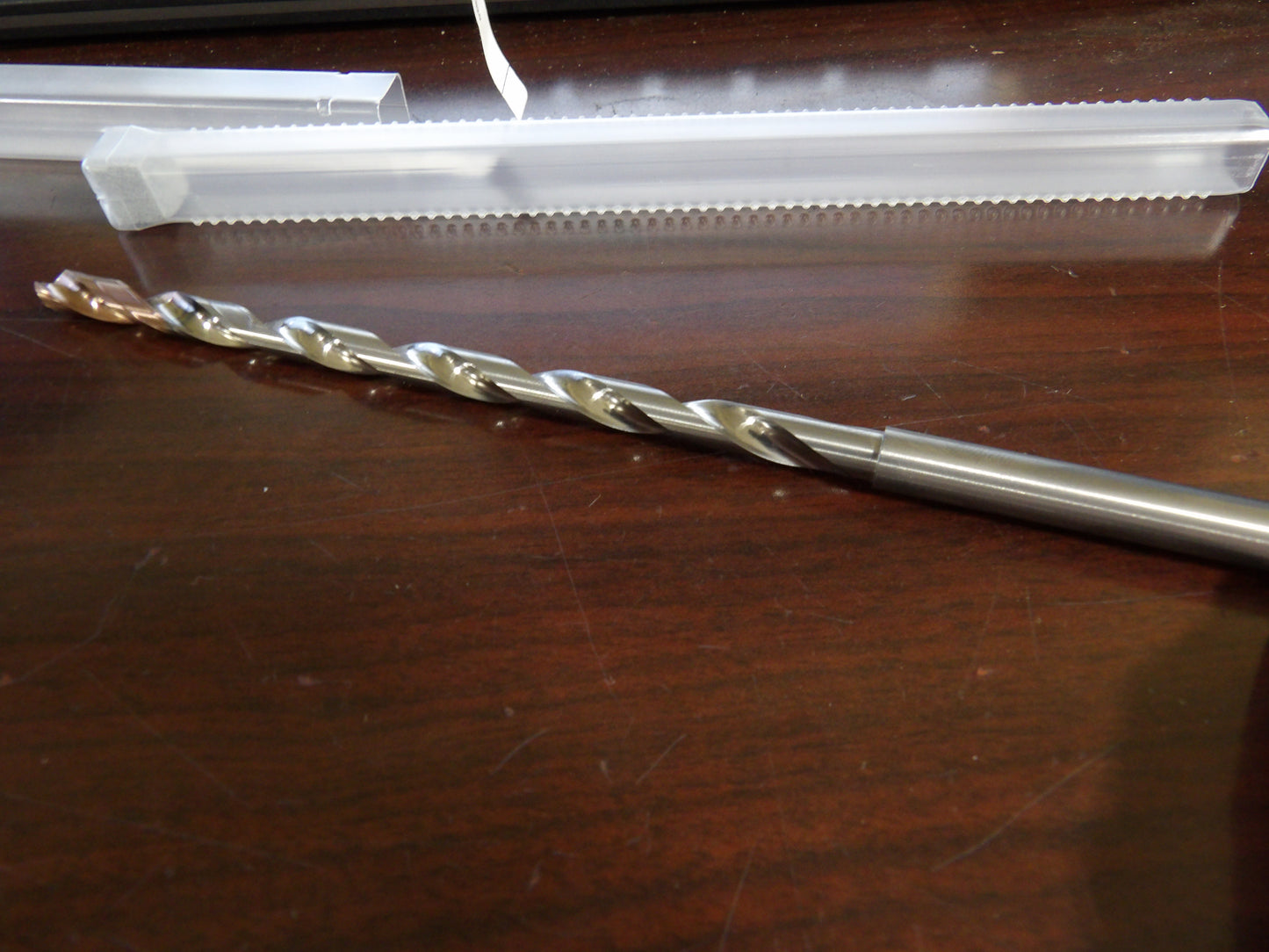

Mitsubishi Coolant Through Drill, MVS0675X15S080 DP1020, 0.2656 in. Dia. (CR00813WTA23)
$249.99
Shipping calculated at checkout
SKU: CR00813WTA23

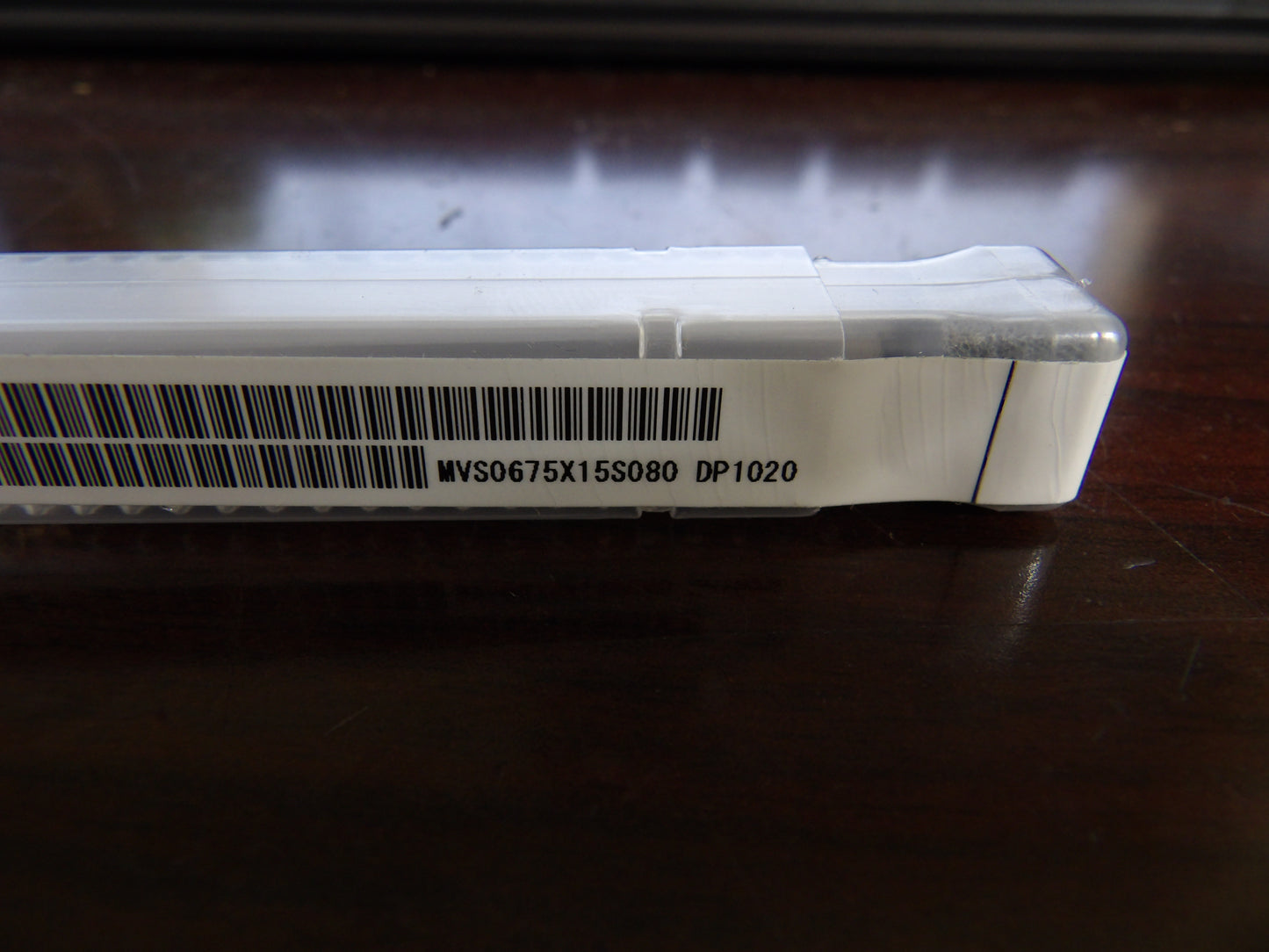

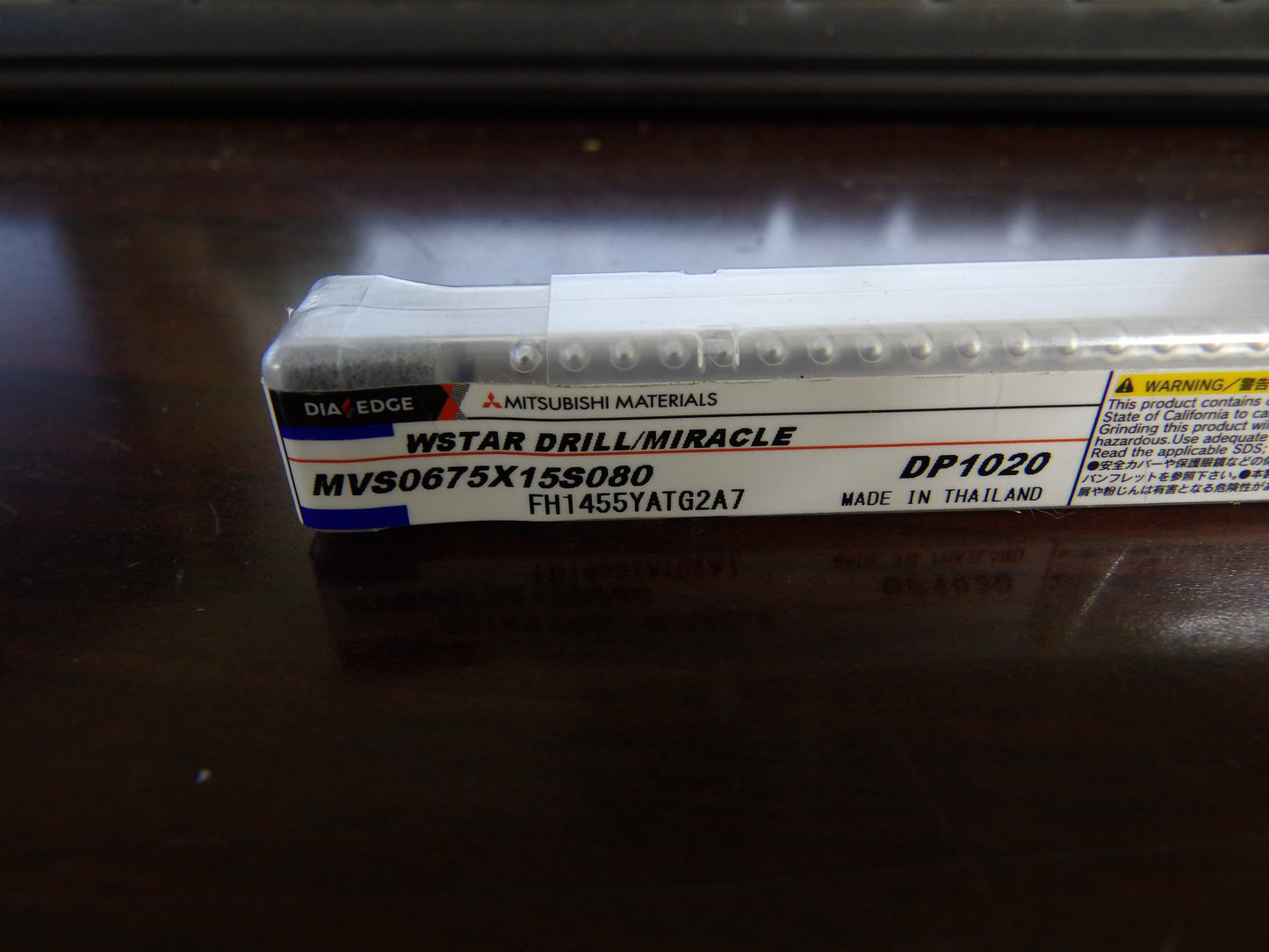

MVS0675X15S080 DP1020
- New grade DP1020 offers long tool life for a wide range of work materials.

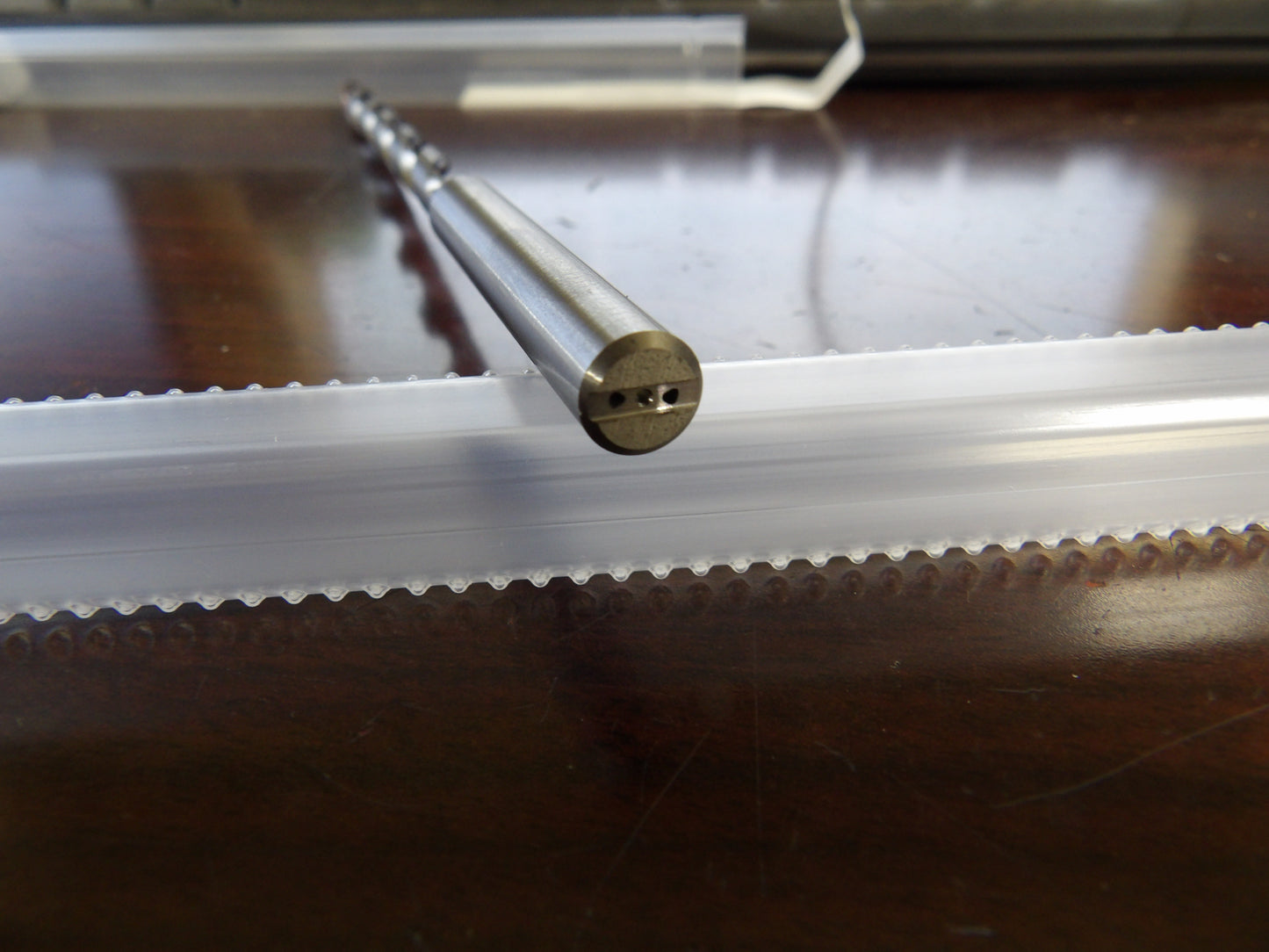

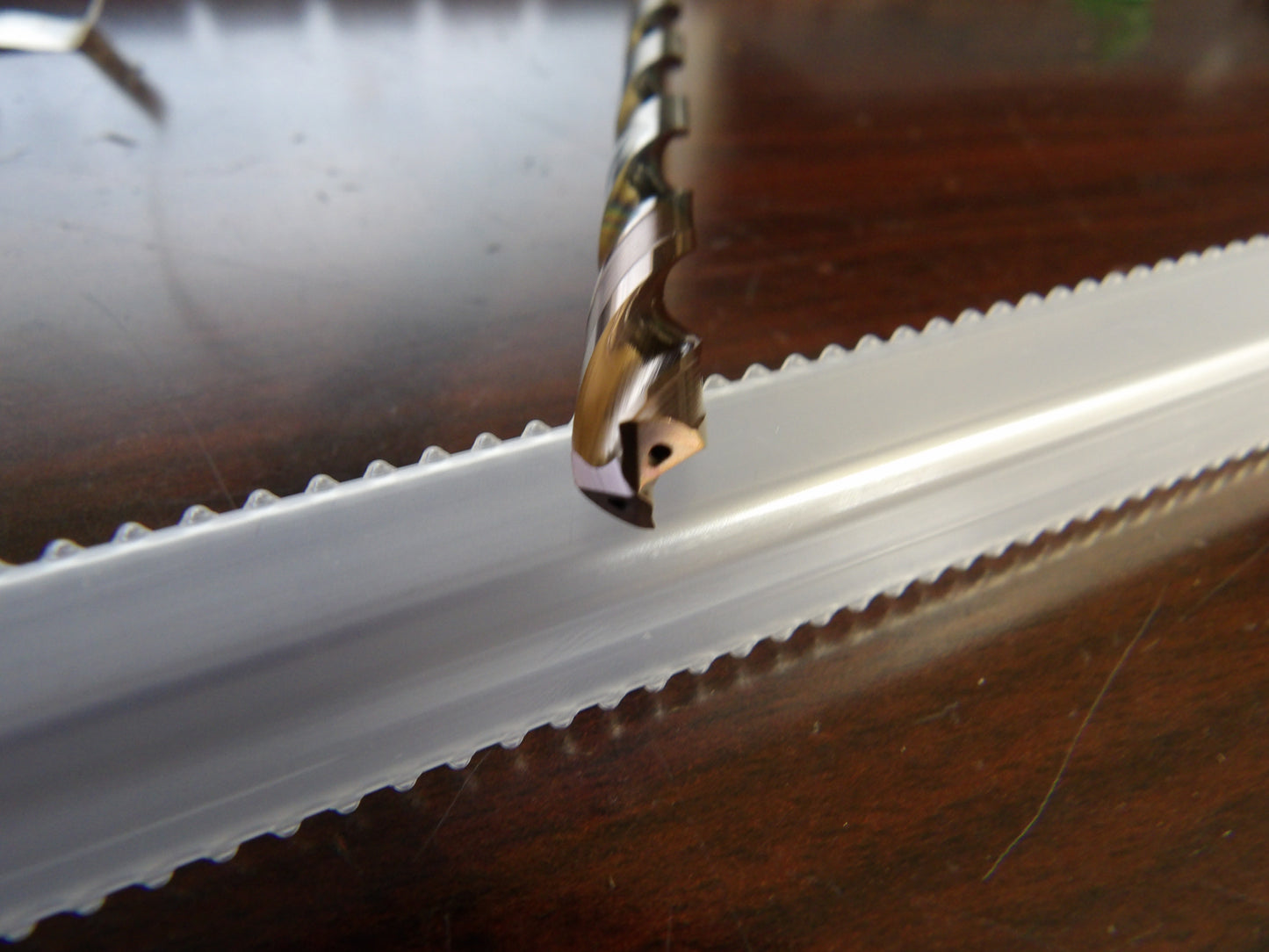

- Unique coolant supply technology, TRI-cooling offers high machining efficiency.

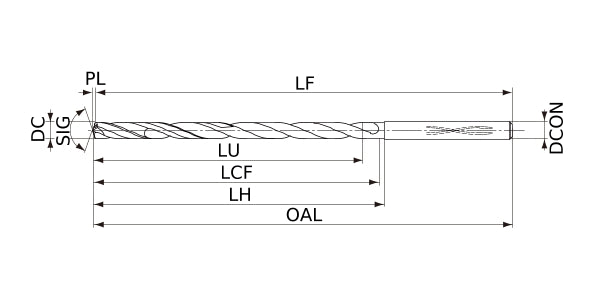

| Name of Grade | Carbide |
| Grade | DP1020 |
| Unit of Length | I |

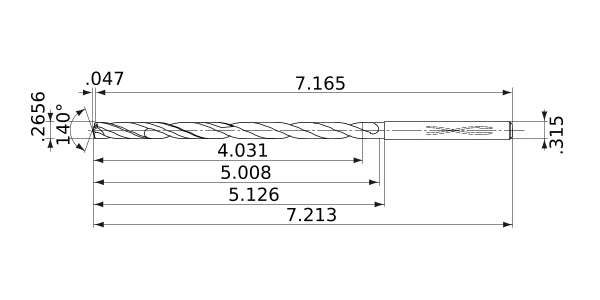

| DC | .2656 |
| DCON | .315 |
| SIG | 140° |
| LF | 7.165 |
| OAL | 7.213 |
| LH | 5.126 |
| LU | 4.031 |
| LCF | 5.008 |
| FHA | 27° |
| ld | 15 |
| PL | .047 |
| Effective Cutting Edge | 2 |
| Max. Cutting Edge Diameter Tolerance | -.013 |
| Min. Cutting Edge Diameter Tolerance | -.0022 |
| Type of Coolant | Internal |
| ZEFF | face effective cutting edge count | 2 |
| DC | connection diameter machine side | .315 |
| ULDR | usable length diameter ratio | 15 |
| HAND | hand | right hand |
| LPR | protruding length | 5.204 |
| BMC | body material code | Solid Carbide |
| UST | unit system | M |
| LF | functional length | 7.165 |
| LH | head length | 5.126 |
| LS | shank length | 2.087 |
| LU | usable length | 4.031 |
| NOF | flute count | 2 |
| TCDCON | general diameter TCDCON | h6 |
| LCF | length chip flute | 5.008 |
| OAL | overall length | 7.213 |
| FHA | flute helix angle | 27 |
| CSP | coolant supply property | 1 |
| DMM | shank diameter (deprecated) | .315 |
| TSYC | tool style code | MVS |
| SIG | point angle | 140 |
| PL | point length | .047 |
| UST | unit system | M |
| LCF | length chip flute | .1972 |
| FHA | flute helix angle | 27 |
| UST | unit system | M |
| UST | unit system | M |
