MITUTOYO Long Range Digital Caliper, Range 0 in to 40 in, 0 to 1,000 mm, IP Rating IP66, SPC Output Yes, Mfr. Model # 552-314-10 (CR00549X02)

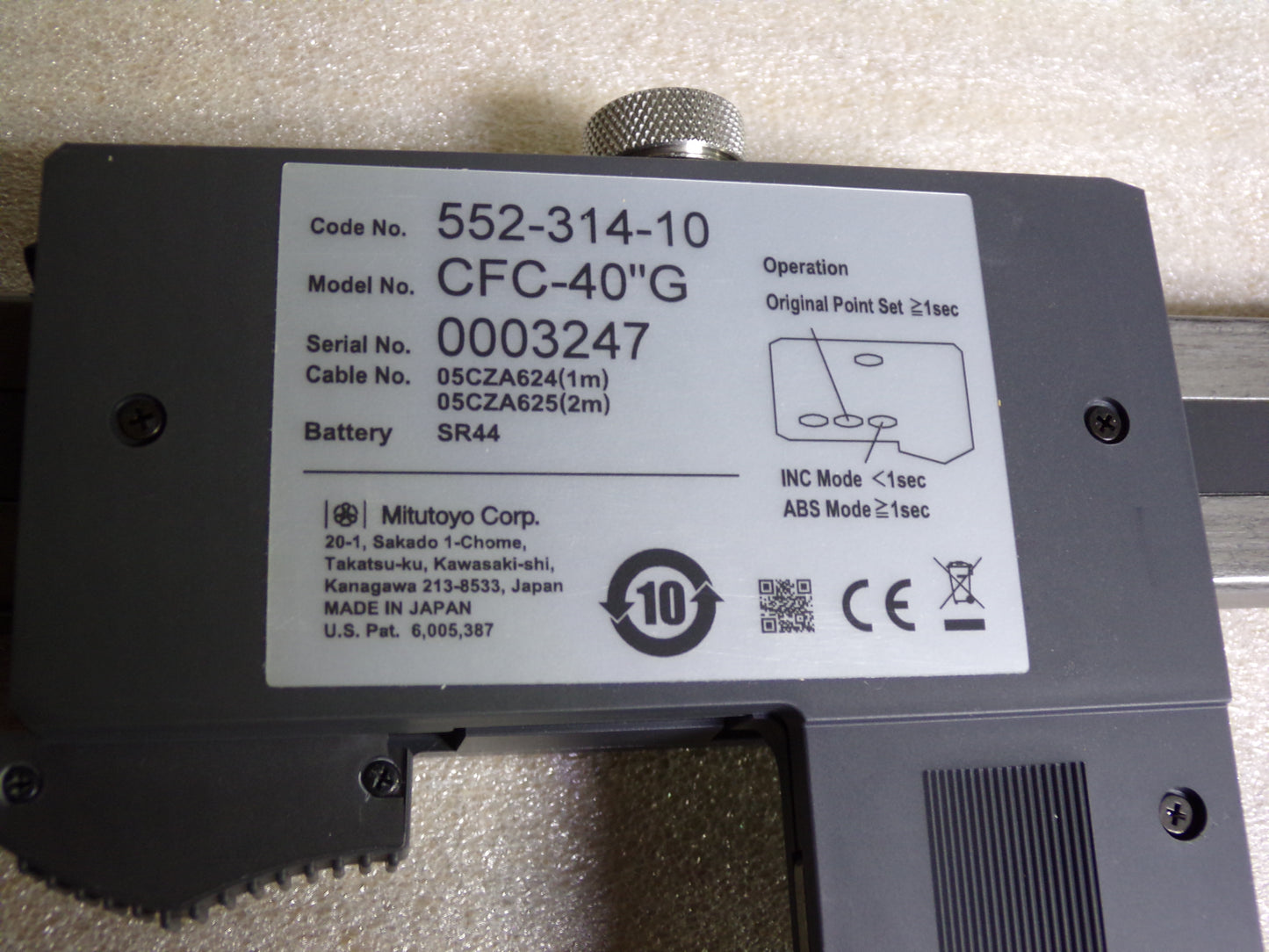

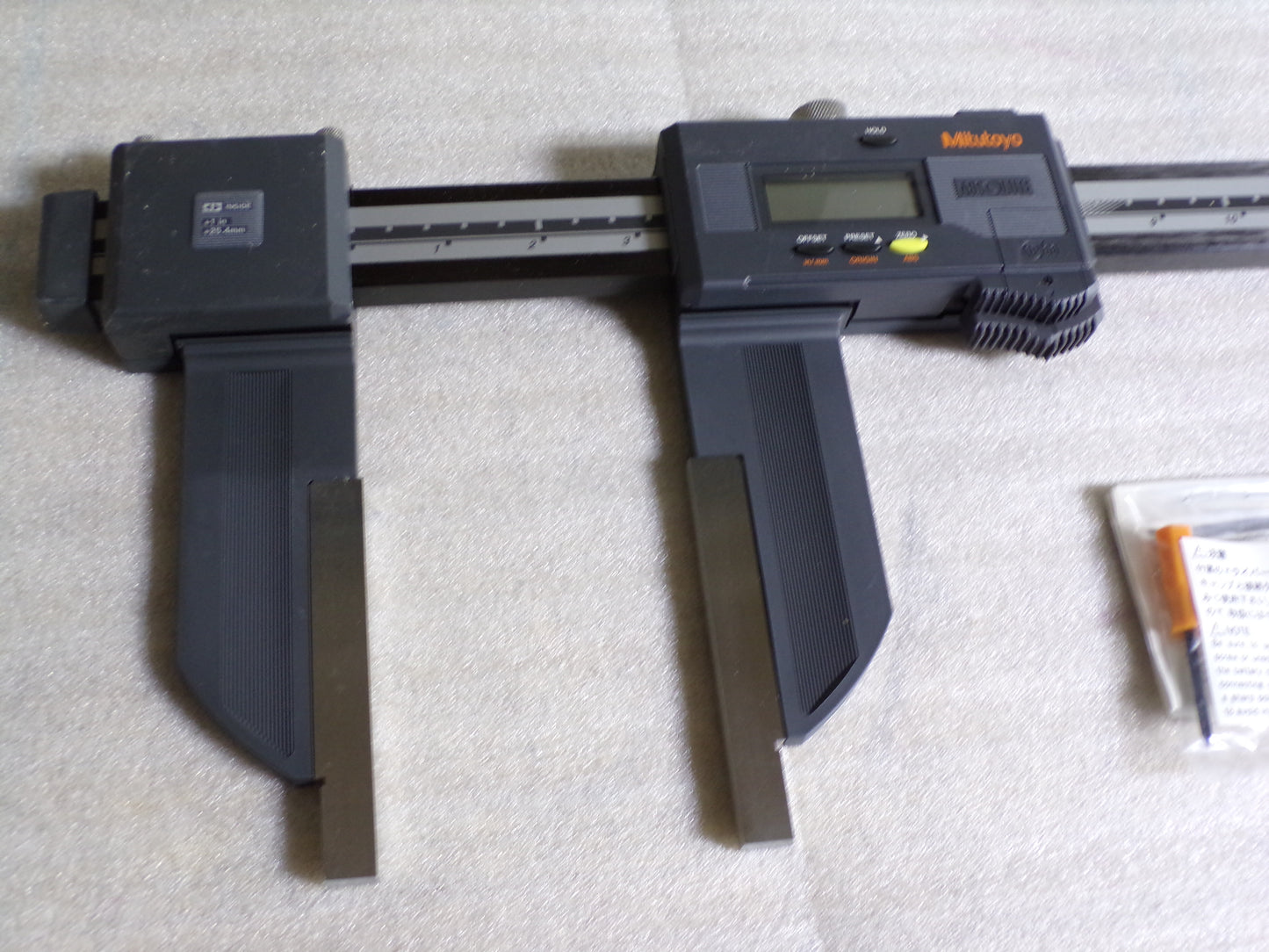

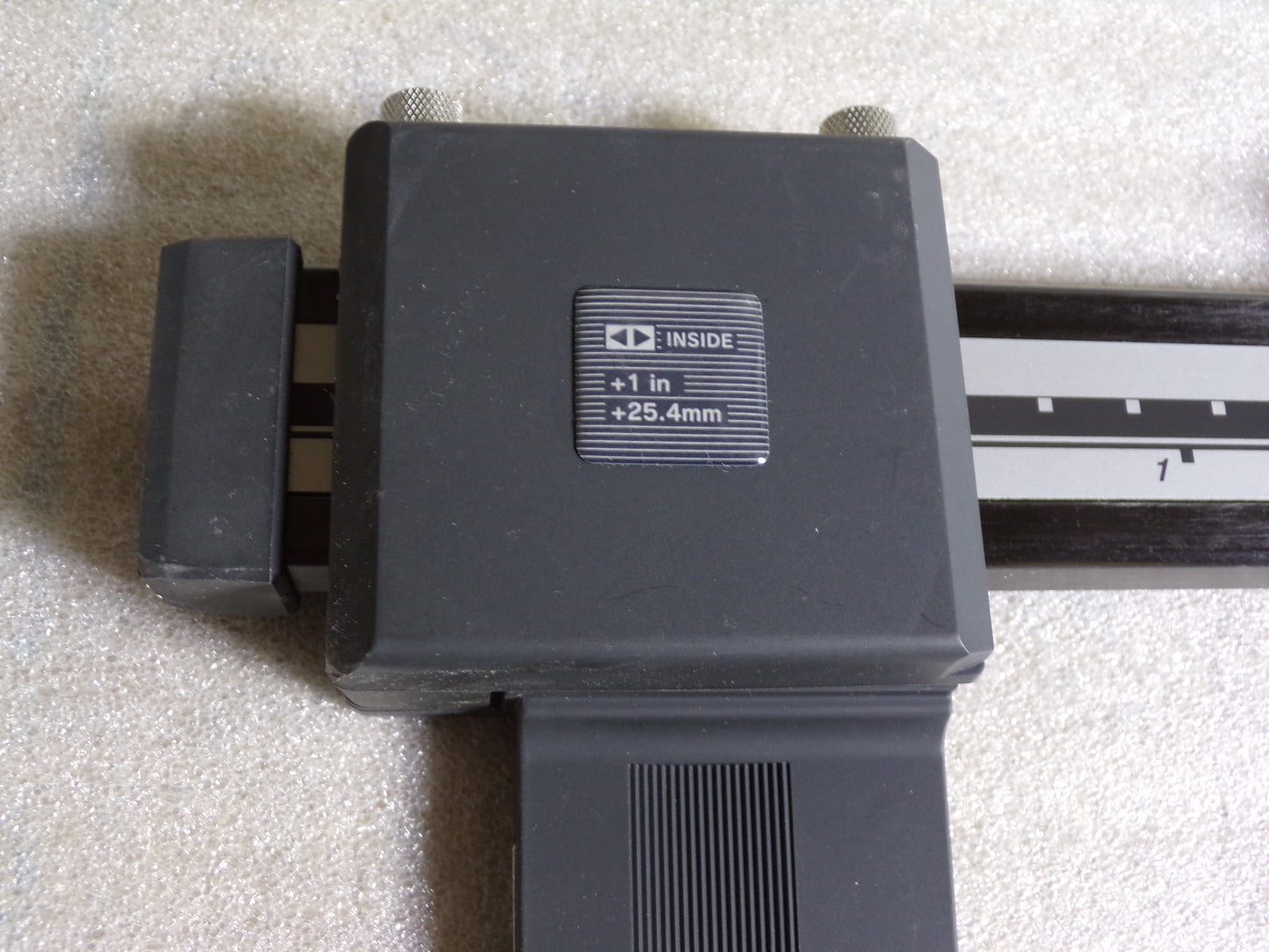

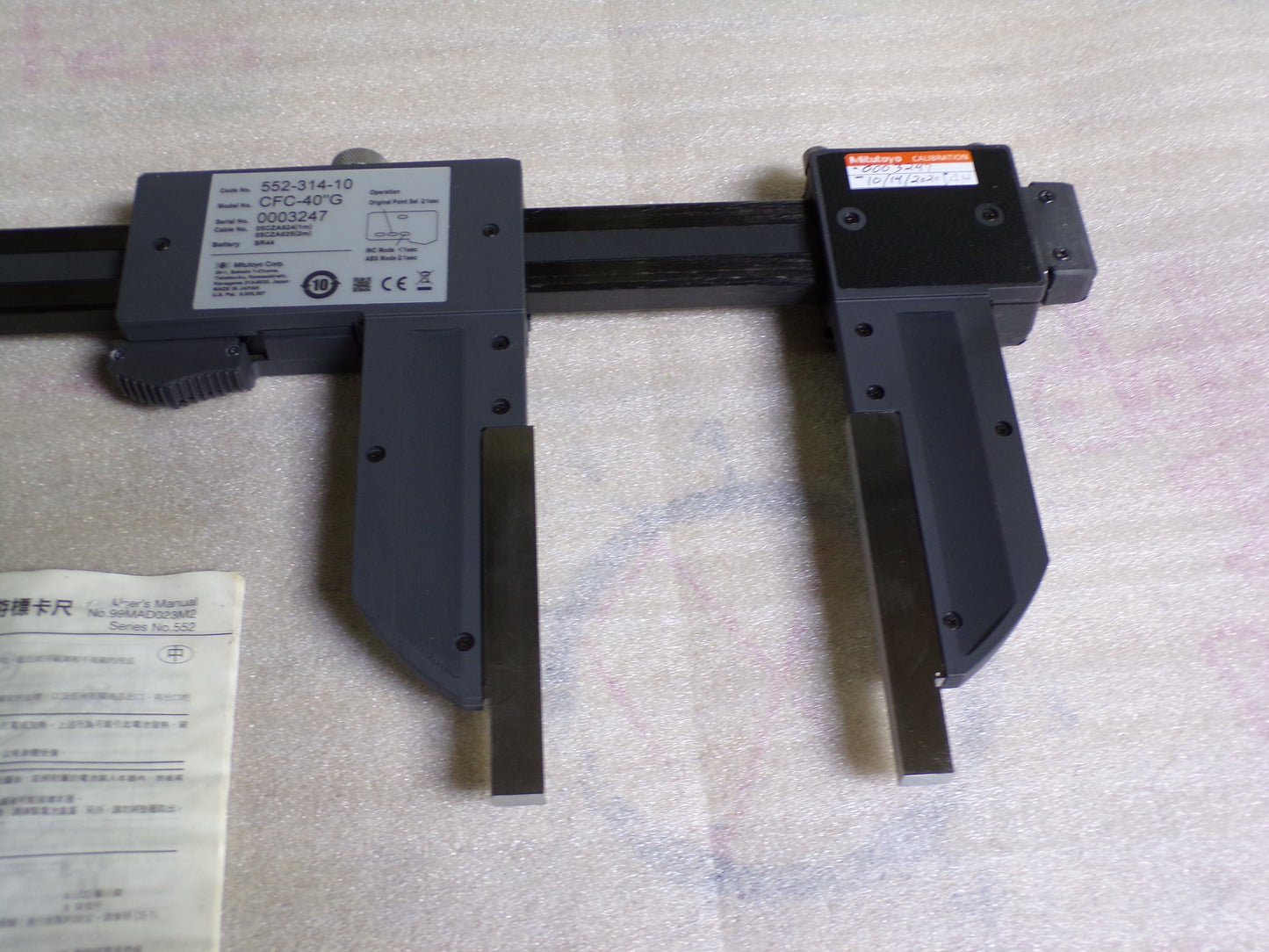

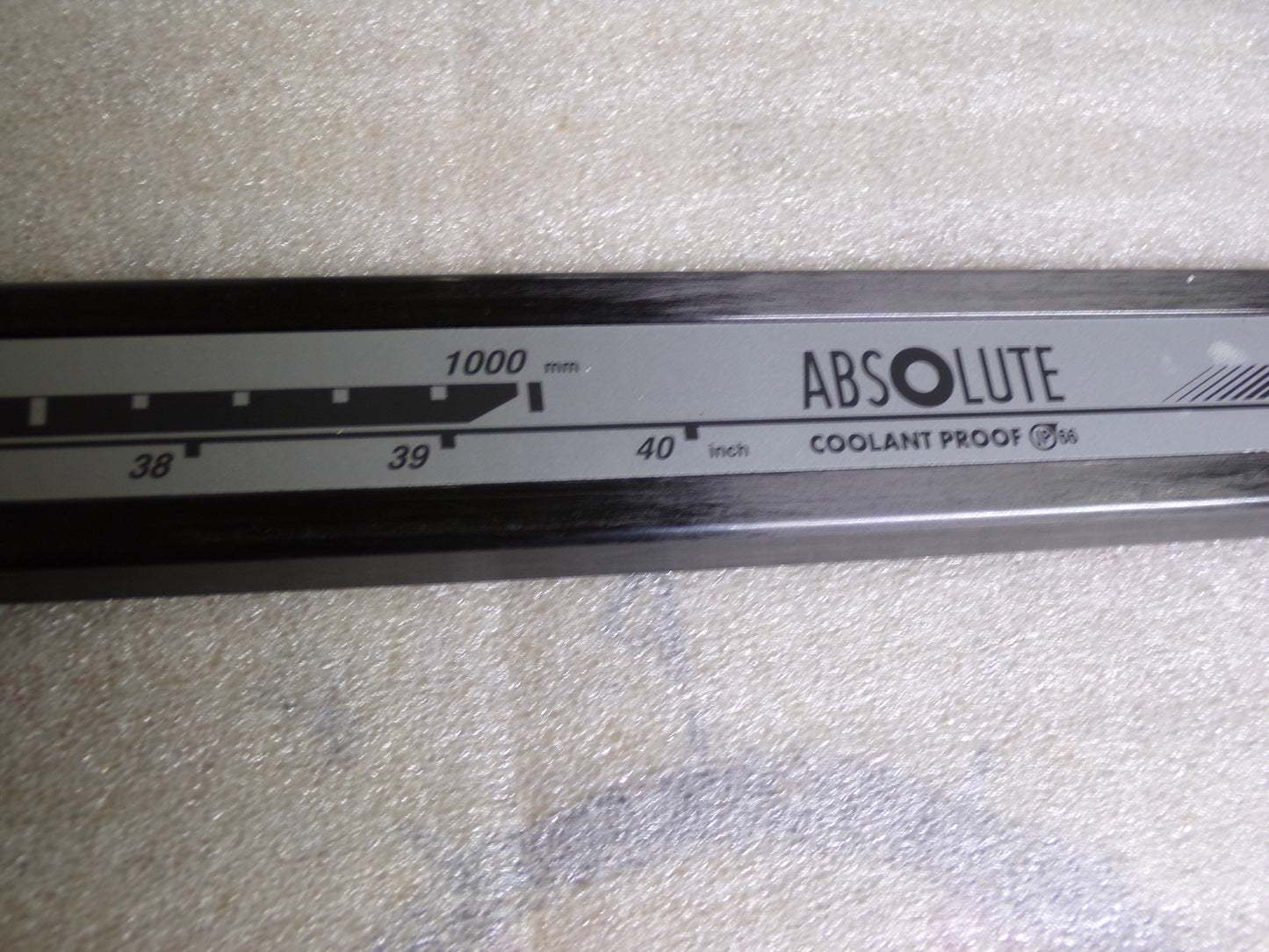

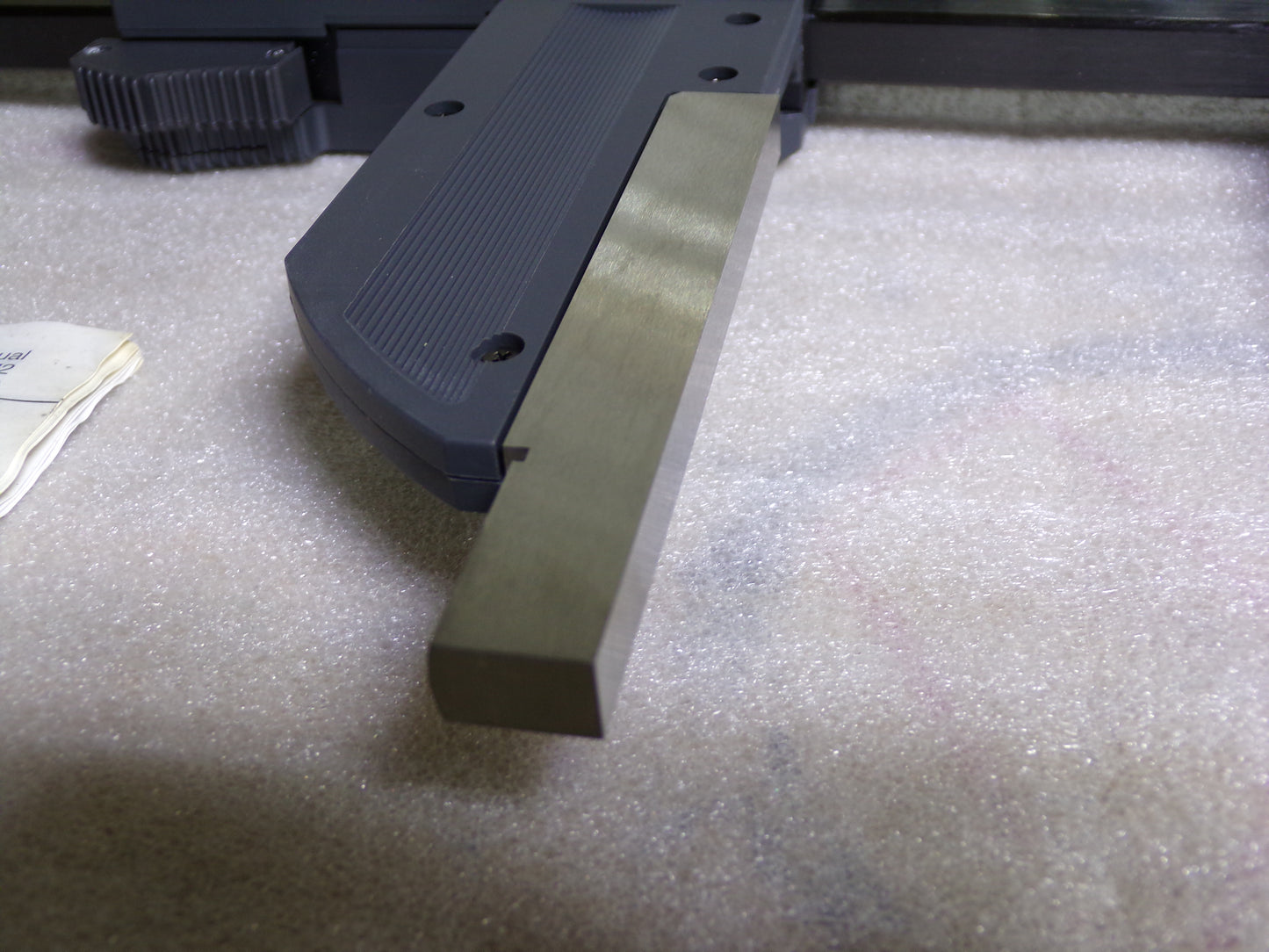

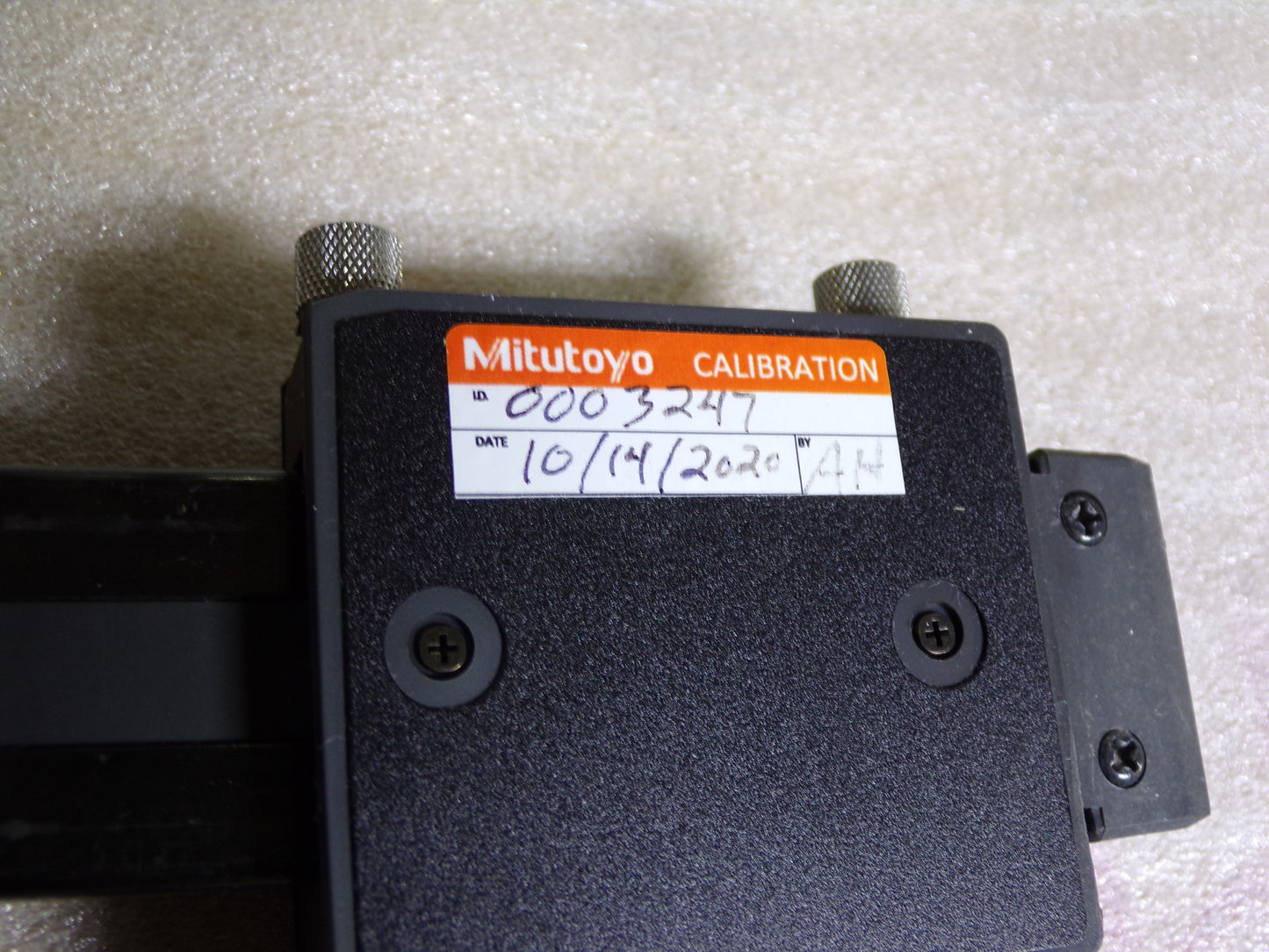

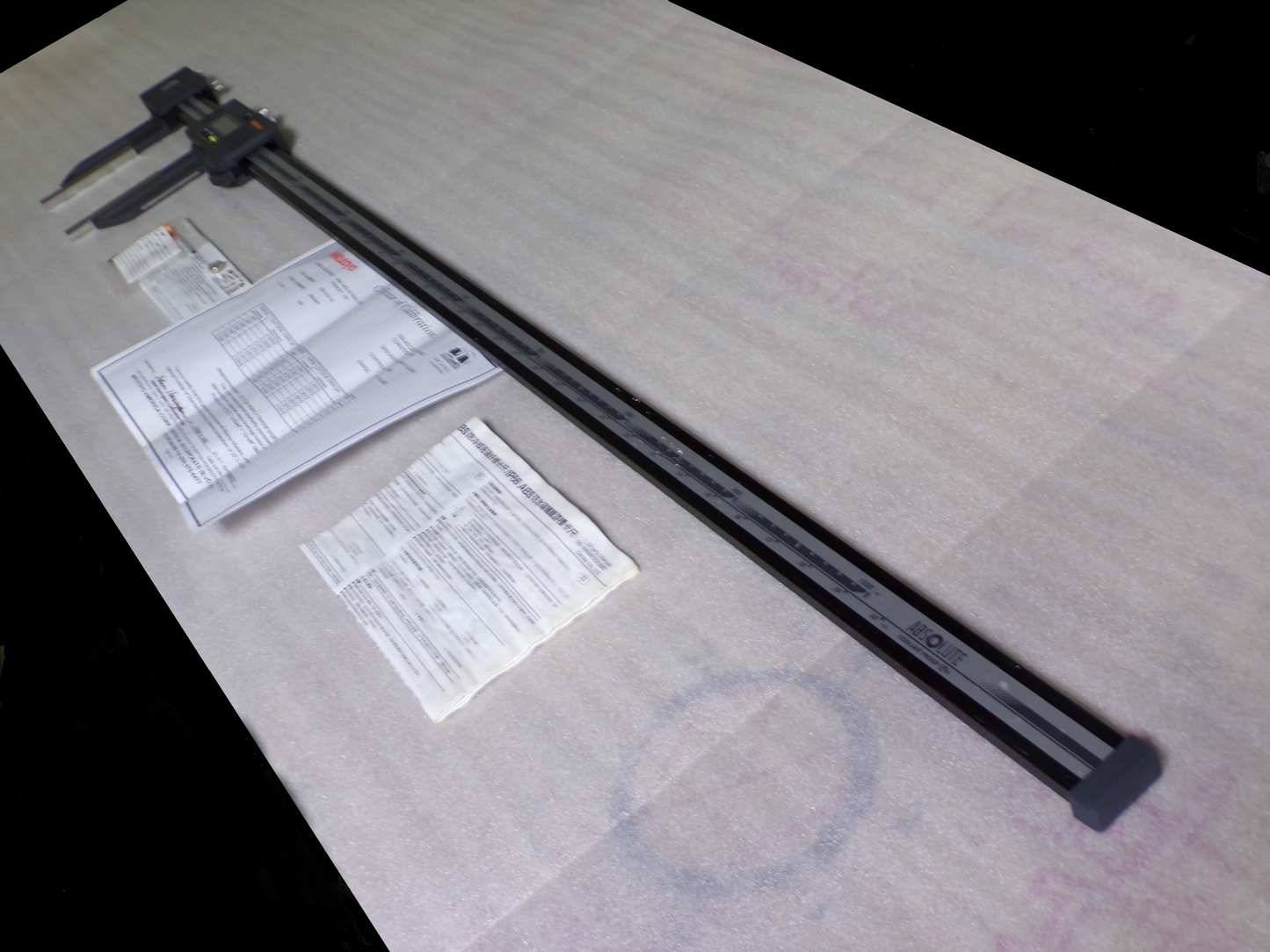

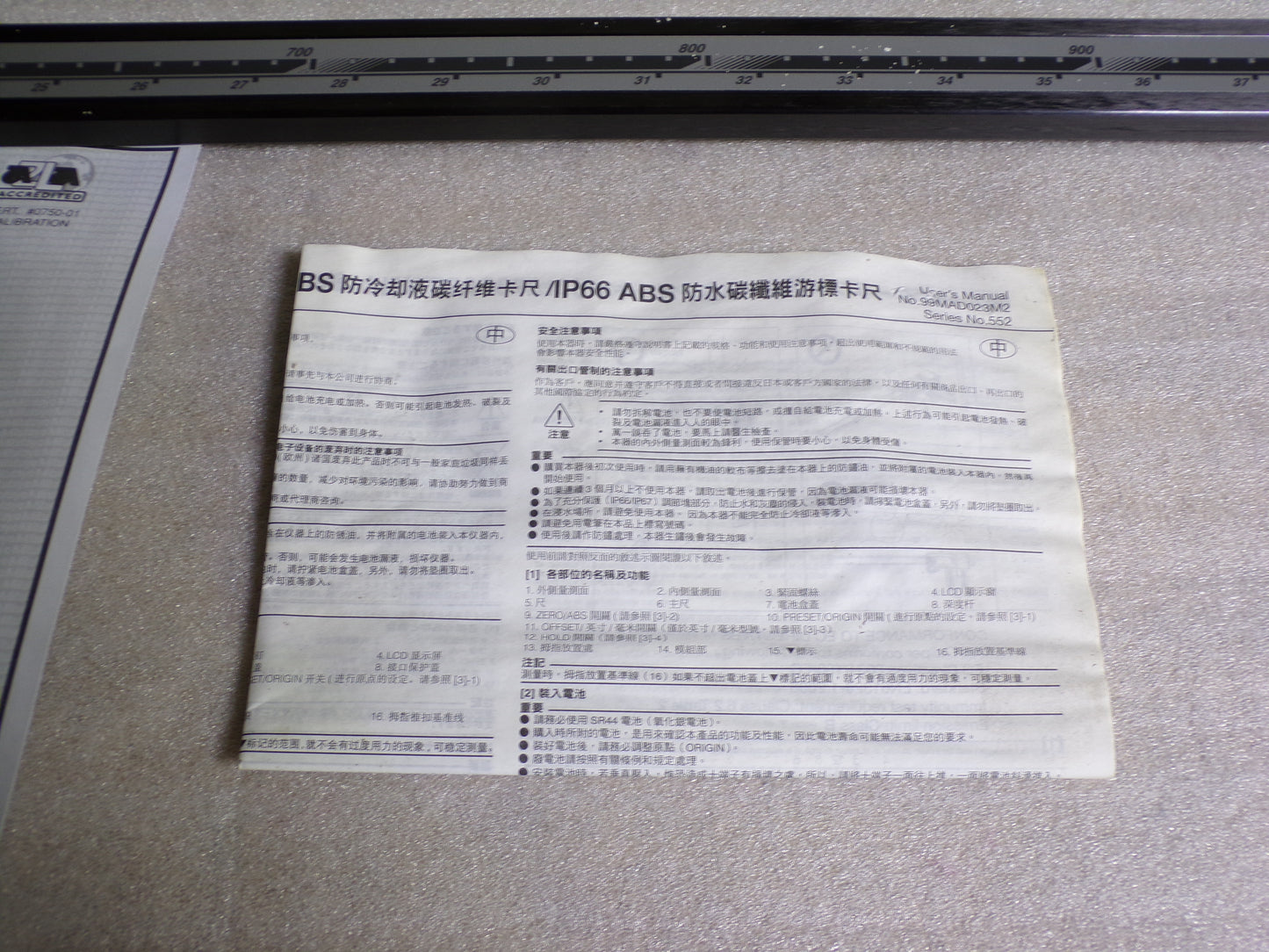

THIS WAS A STORE DISPLAY AND DOES NOT COME WITH THE CASE, CALIPERS ONLY. SEE THE PICTURES FOR DETAILS.

These IP65, IP66, and IP67 digital calipers have adjustable jaws that slide along a beam to measure between two opposite sides of a tool or part. IP65 calipers offer protection against solids and dust particles. IP65 calipers protect against low-pressure liquid jets, while IP66 calipers offer protection from high-pressure liquid jets. IP67 calipers provide protection against short-term immersion in liquids including water, coolants, and other metalworking fluids, and have SPC output capability.

• Item: Long Range Digital Caliper
• Range: 0 in to 40 in, 0 to 1, 000 mm
• Resolution: 0.0005 in/0.01 mm
• Accuracy: +/-0.002 in
• IP Rating: IP66
• SPC Output: Yes
• Data Output Type: Cabled

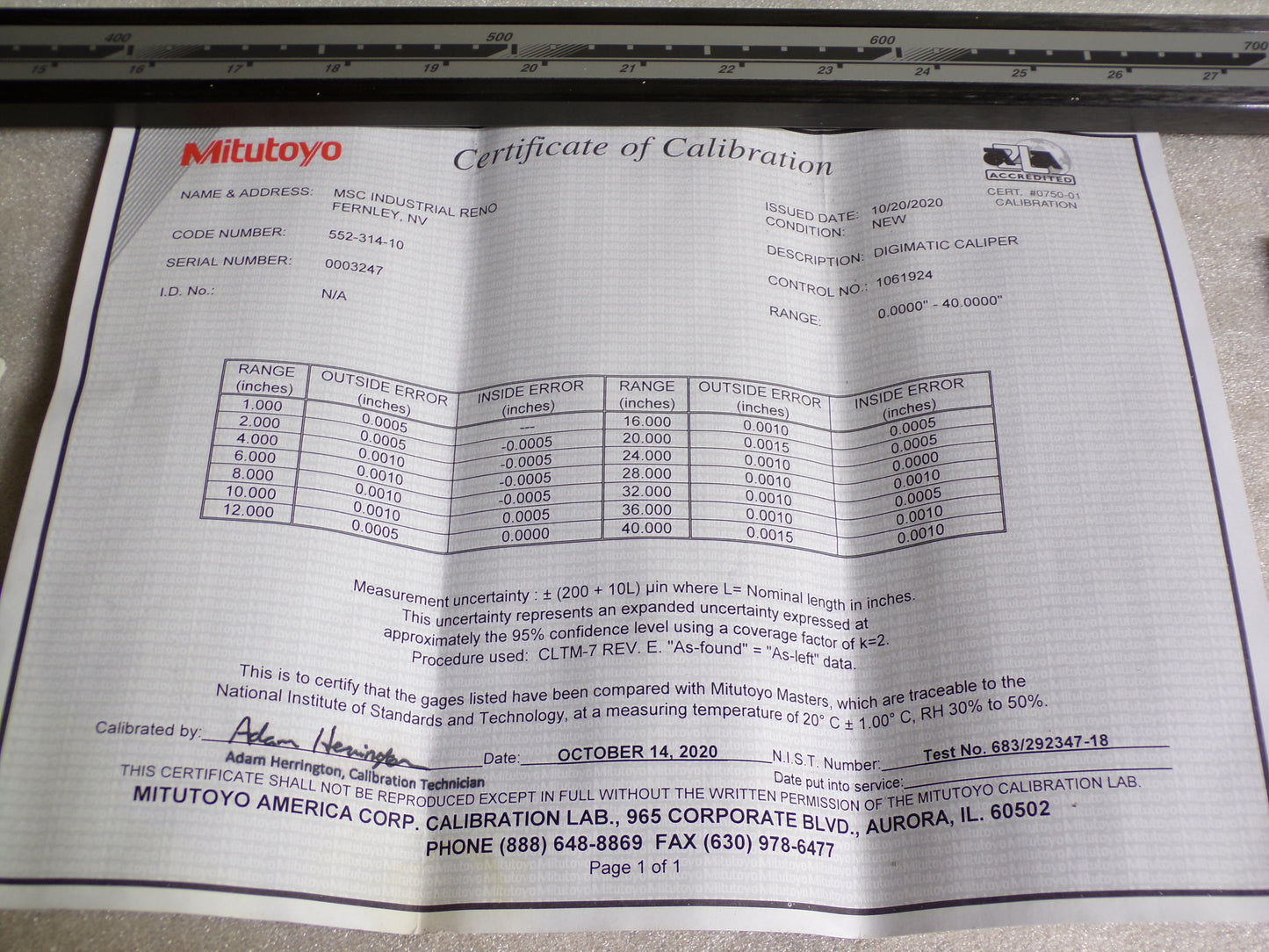

• Long Form Calibration Certificate: No
• Absolute Positioning: Yes
• Caliper Material: Carbon Fiber
• Dimension Type: Inch/Metric
• Coolant Resistant: Yes
• Jaw Actuation Type: Slide
• Jaw Depth: 5 7/8 in
• Jaw Material: Carbon Fiber
• Minimum Measurement - Fractional Inch: 0 in
• Maximum Measurement - Inch: 40 in
• Maximum Measurement - mm: 1,000 mm
• Measurements: Inside
• Measures Depth: No
• Measures Inside Dimension: Yes
• Measures Outside Dimension: No
• Measures Step: No
• Minimum Measurement - Inch: 0 in
• Minimum Measurement - mm: 0 mm

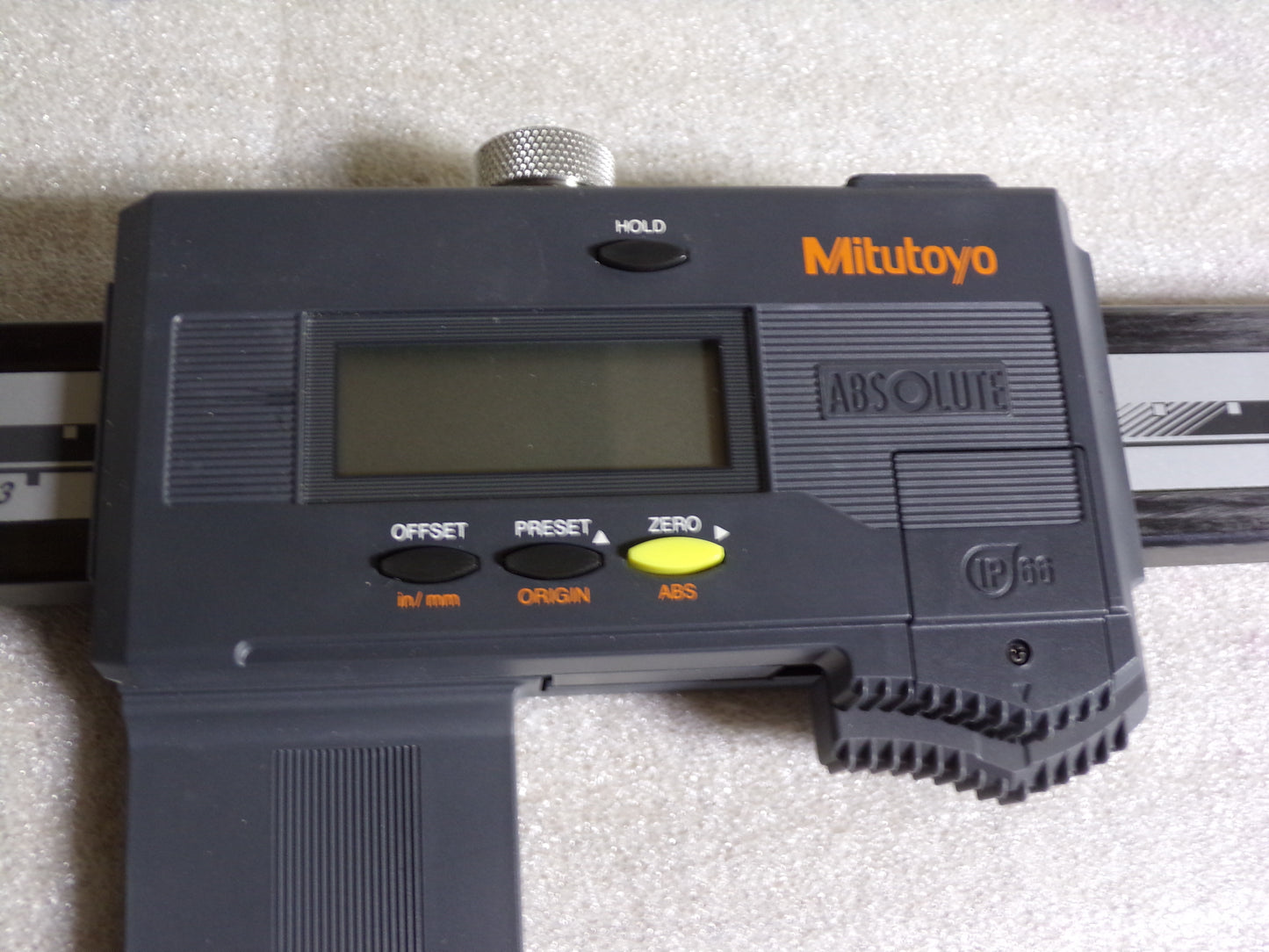

• Display Type: LCD
• Battery Size: SR44
• Compatible SPC Cable: Mfr. No. 05CZA624, Mfr. No. 05CZA625
• Data Output Connection Type: Digimatic
• Water Resistant: Yes
• Functions: Origin-Set, Zero, Presetting, Offsetting, Data Hold, Data Output, inch/mm, Alarm: Low Voltage, Counting Value Composition Error

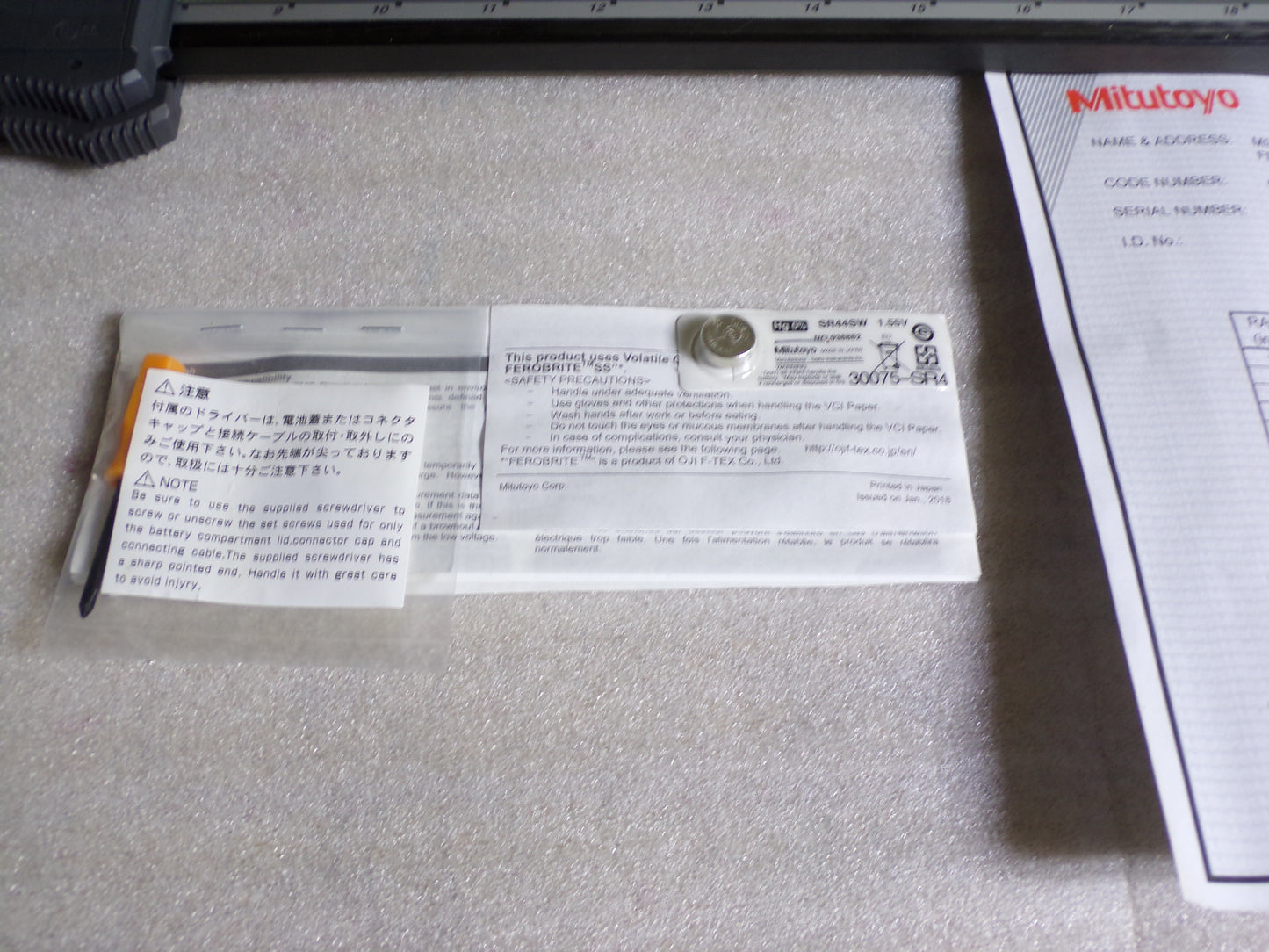

• Includes Battery: Yes
• Includes Case: Yes
• Jaw Shape: Standard
• With Locking Nut: Yes
