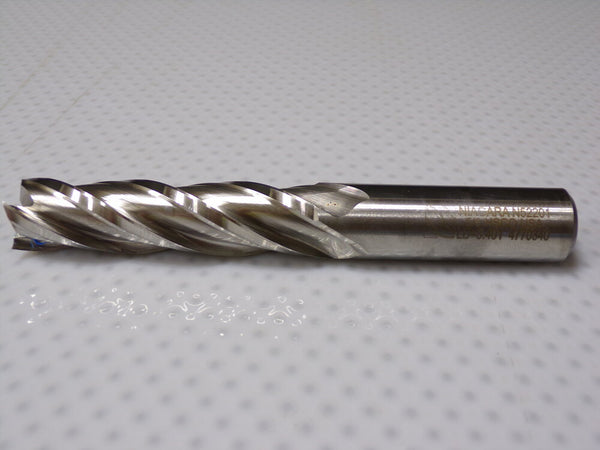

Niagara Cutter 5/8", 4 Flute, Cobalt Square End Mill (SQ2045521WT08)

$19.99

Shipping calculated at checkout

SKU: SQ2045521WT08

Available Now!

Niagara Cutter - 5/8", 2-1/2" LOC, 5/8" Shank Diam, 4-5/8" OAL, 4 Flute, Cobalt Square End Mill - Single End, Uncoated, Spiral Flute, 30° Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series SPC408

Mill Diameter (Inch): 5/8

Mill Diameter (Decimal Inch): 0.6250

Number of Flutes: 4

Length of Cut (Inch): 2-1/2

Length of Cut (Decimal Inch): 2.5000

Material: Cobalt

Finish/Coating: Uncoated

Shank Diameter (Inch): 5/8

Single or Double End: Single

Overall Length (Inch): 4-5/8

Center Cutting: Center Cutting

Flute Direction: Right Hand

Cutting Direction: Right Hand

Helix Angle: 30.00

Flute Type: Spiral

Mill Diameter Tolerance (Decimal Inch): +0.001/-0.000

Material Grade: M42

Chipbreaker: No

Extended Reach: No

Overall Length Tolerance (Decimal Inch): +0.062/-0.000

Shank Diameter Tolerance (Decimal Inch): -0.0001/-0.0005

Series/List: SPC408
