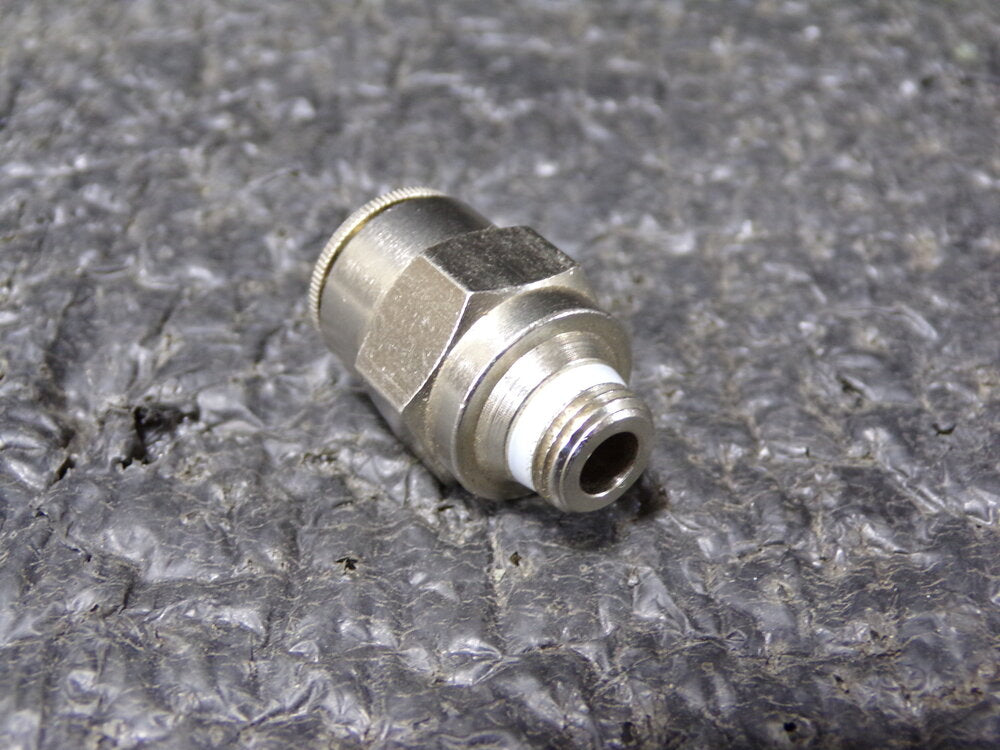

Nickel Plated Brass Male Connector, 3/8" Tube Size x 1/8" NPT, PTFE Seal (SQ3942022WT32)

$5.99

Shipping calculated at checkout

SKU: SQ3942022WT32

Available Now!

• Max. operating pressure: 300 psi Max. operating temp.: 0° to 200°F (depending on tubing used)
Designed for low-pressure circuits where fast assembly, disassembly, and reassembly are important. Compact, 1-pc., nickel-plated brass fittings are for use with polyethylene, nylon, or polyurethane tubing. Support ferrules or I.D. tube supports only required for thin-walled poly tubing. Vacuum applications depend on temperature and tubing type.
WARNING: For use only with air, water, oil, and nonreactive gases. Do not use where accidental separation of tube and fitting could cause injury. Not recommended for continuous-pressure cycling applications.

Item: Male Connector

  • Tube Fitting Material: Nickel Plated Brass

  • Fitting Connection Type: Tube x MNPT

  • Pipe Size - Pipe Fitting: 1/8 in

  • Tube Size: 3/8 in

  • Max. Pressure: 300 psi

  • Temp. Range: 0 Degrees to 200 Degrees F

  • Hex Size: 11/16 in
