NOGA Magnetic-Base Indicator Holder: Magnetic Base, Articulating Arm, 800 N Holding Power, V Step (CR00827WTA23)

$129.99

Shipping calculated at checkout

SKU: CR00827WTA23

Only 2 left!
NOGA Magnetic-Base Indicator Holder: Magnetic Base, Articulating Arm, 800 N Holding Power, V Step (CR00827WTA23)
Description Let Us Know What You Think

Magnetic base indicator holders have a magnetic base that’s connected to an adjustable arm assembly used to mount and position indicators. Also called mag bases, they are always-on or have an on/off knob or button to mount to machines, motors, benches, or other metal surfaces.

    • Item: Magnetic-Base Indicator Holder

    • Arm Type: Articulating

    • Base Height: 55 mm

    • Base Length: 60 mm

    • Base Size: 60 mm L x 50 mm W x 55 mm H

    • Base Type: Magnetic

    • Base Width: 50 mm

    • Compatible Indicator Mounts: 6 mm

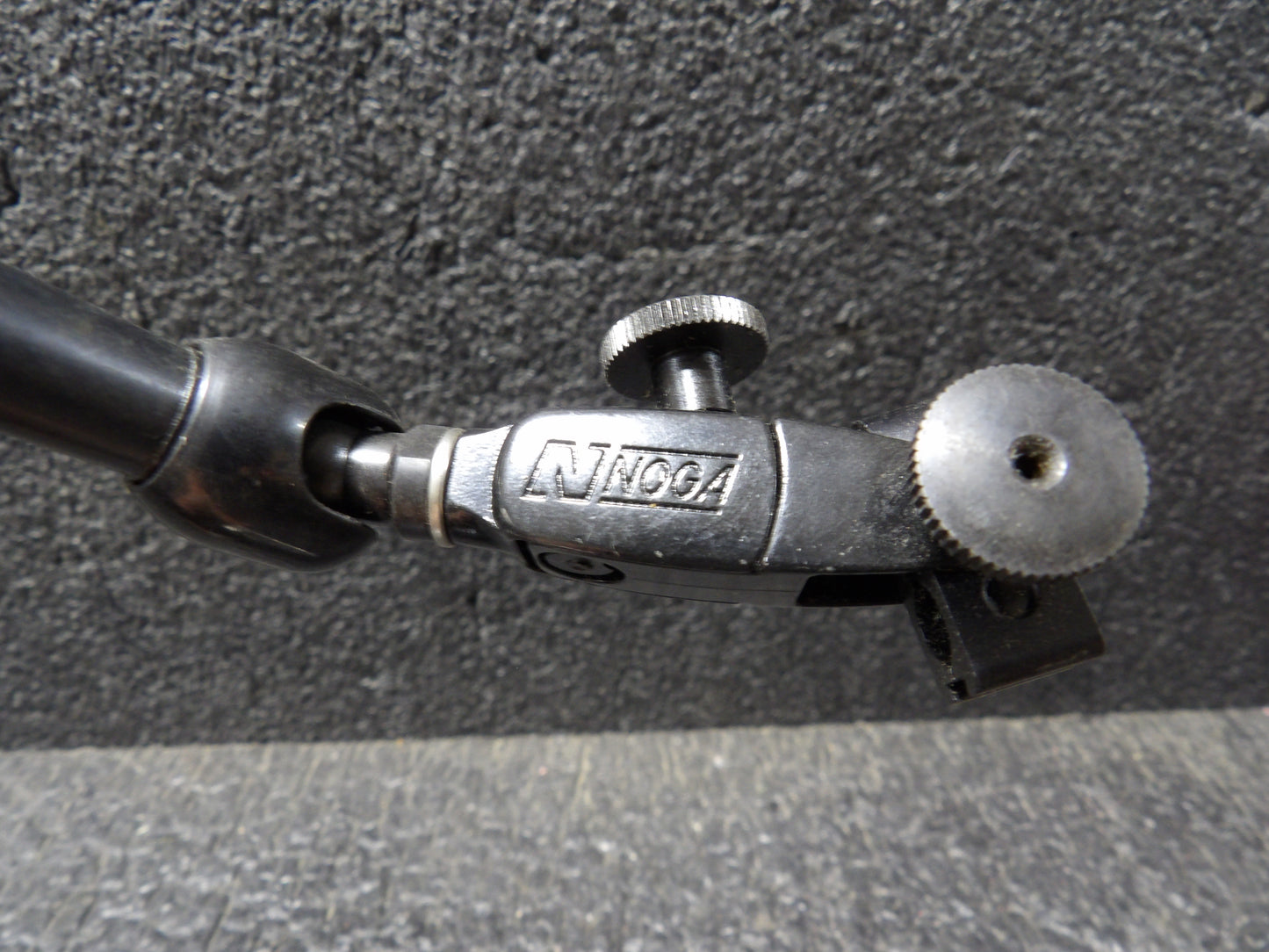

    • Fine Adjustment Position: Fine Adjust Top (FAT)

    • Holding Power: 800 N

    • Maximum Reach: 347.5 mm

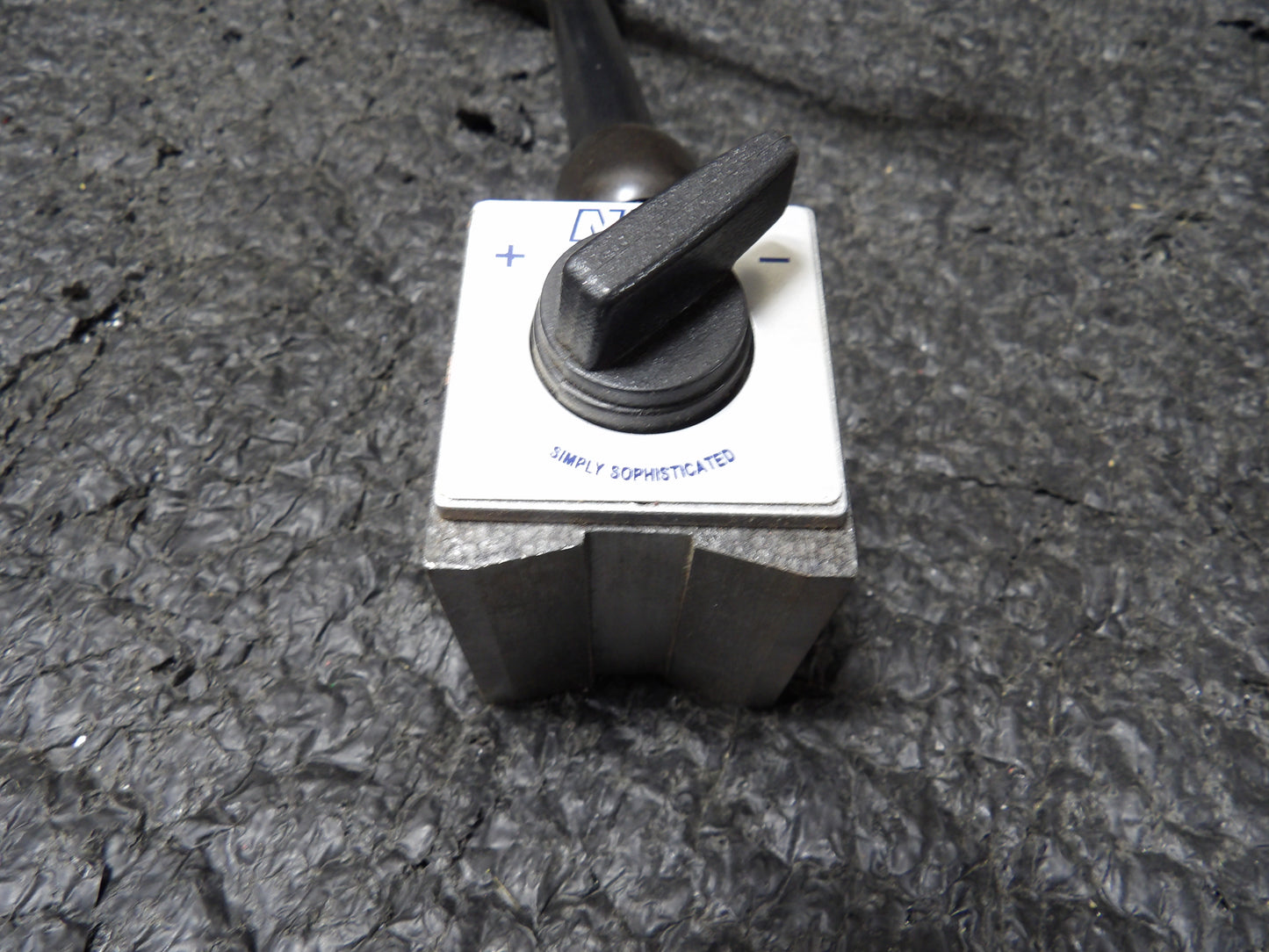

    • Step Type: V Step

    • Working Length of Post/Lower Arm: 163.5 mm

    • Working Length of Snug/Third Arm: 71 mm

    • Working Length of Upper Arm: 113 mm

    • Base Thread Size: M8 x 1

    • Construction: Steel

    • Includes: M8/M8 Adaptor

    • Includes Snug: Yes

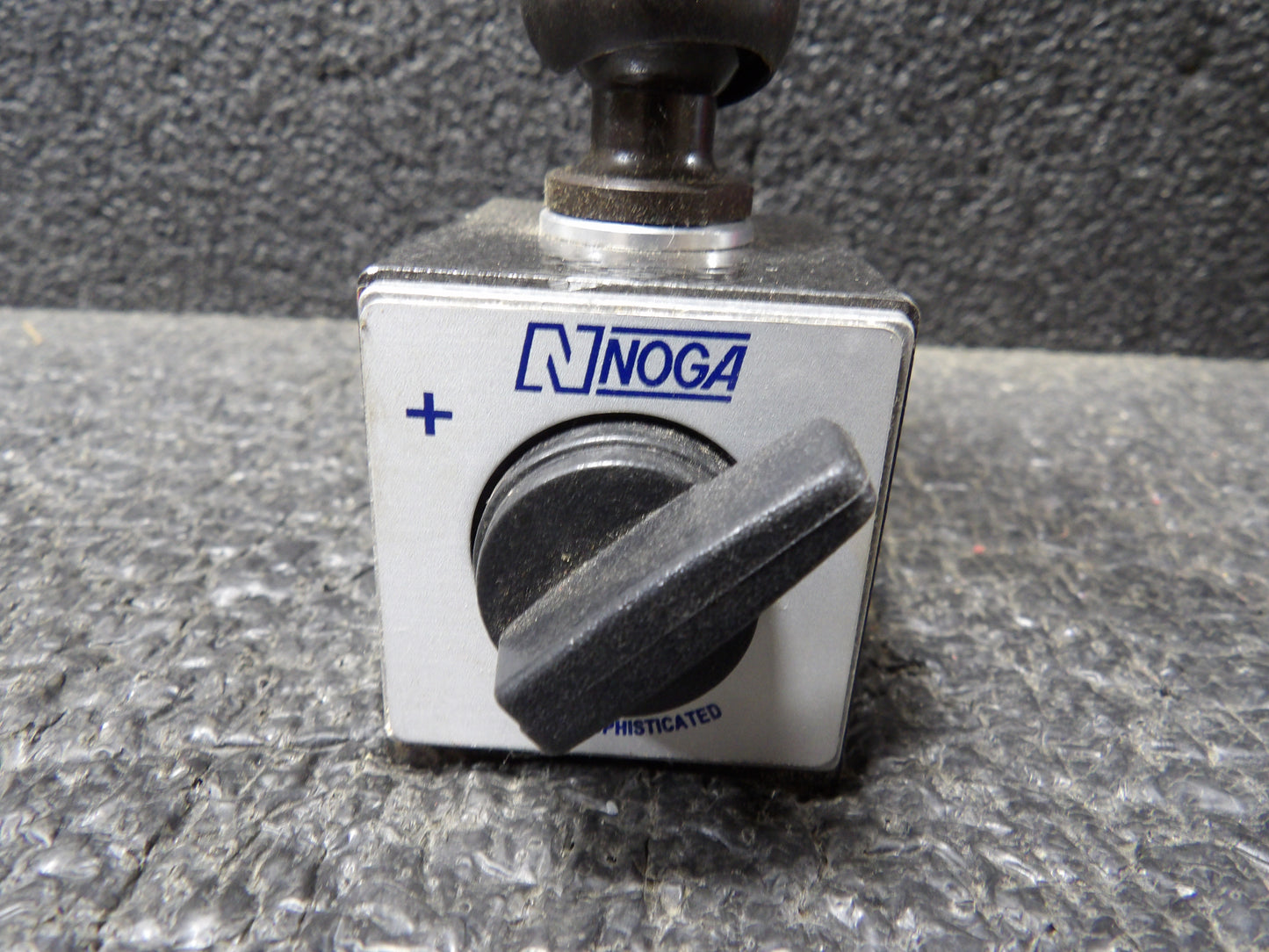

    • Magnet Type: On/Off Knob

  • Screw Type: Plastic Knob
