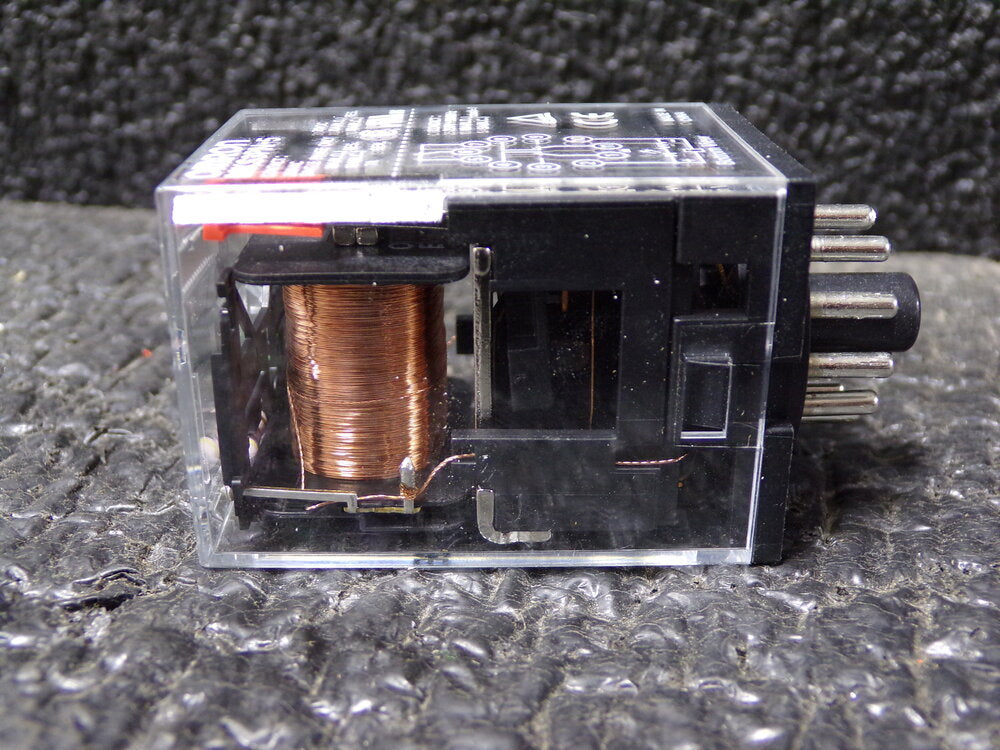

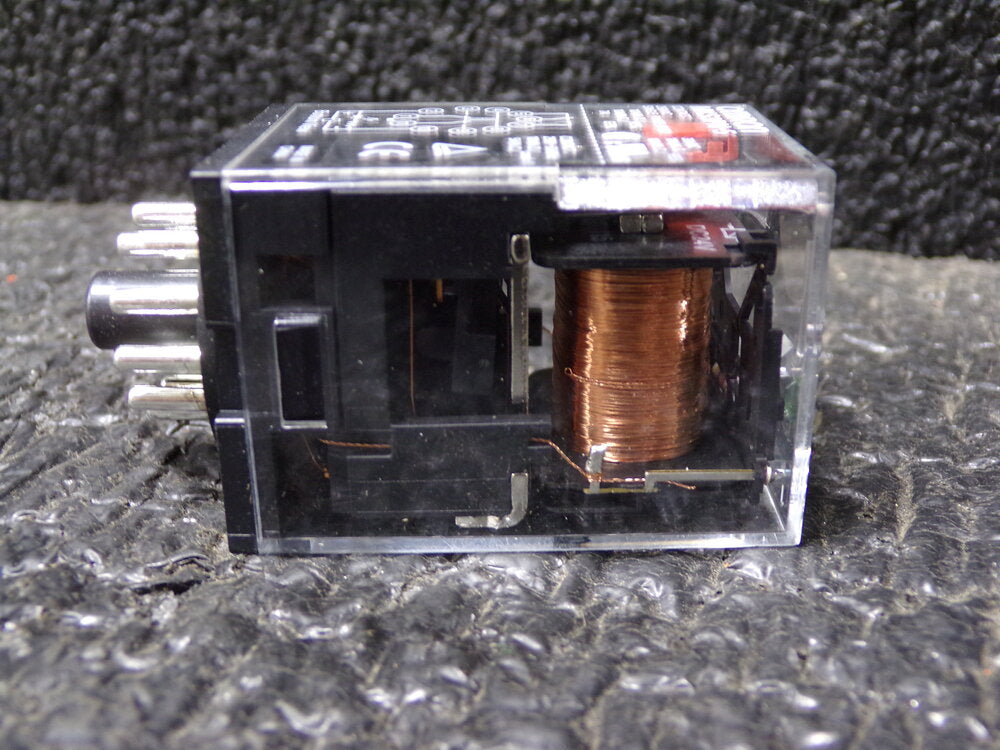

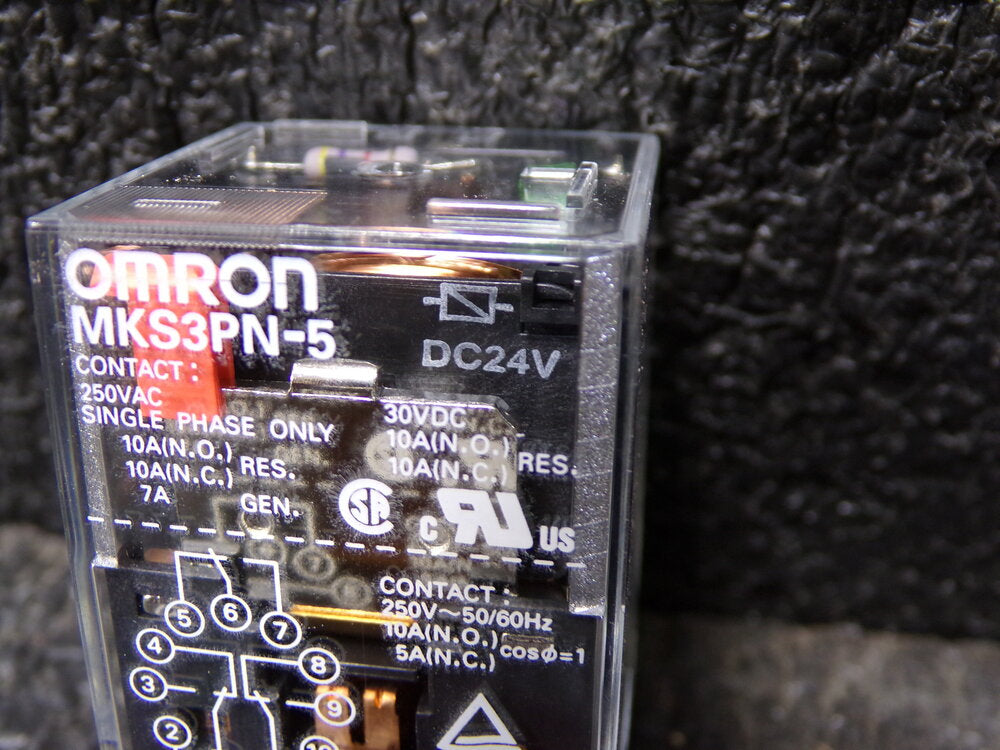

OMRON General Purpose Relay, 24V DC Coil Volts, 10A @ 240V AC Contact Rating - Relay (SQ7752014WT06)

$9.99

Shipping calculated at checkout

SKU: SQ7752014WT06

Only 1 left!

Item - Relay: General Purpose Relay

  • Coil Volts: 24V DC

  • AC Contact Rating - Relay: 10A @ 240V

  • DC Contact Rating - Relay: 10A @ 28V

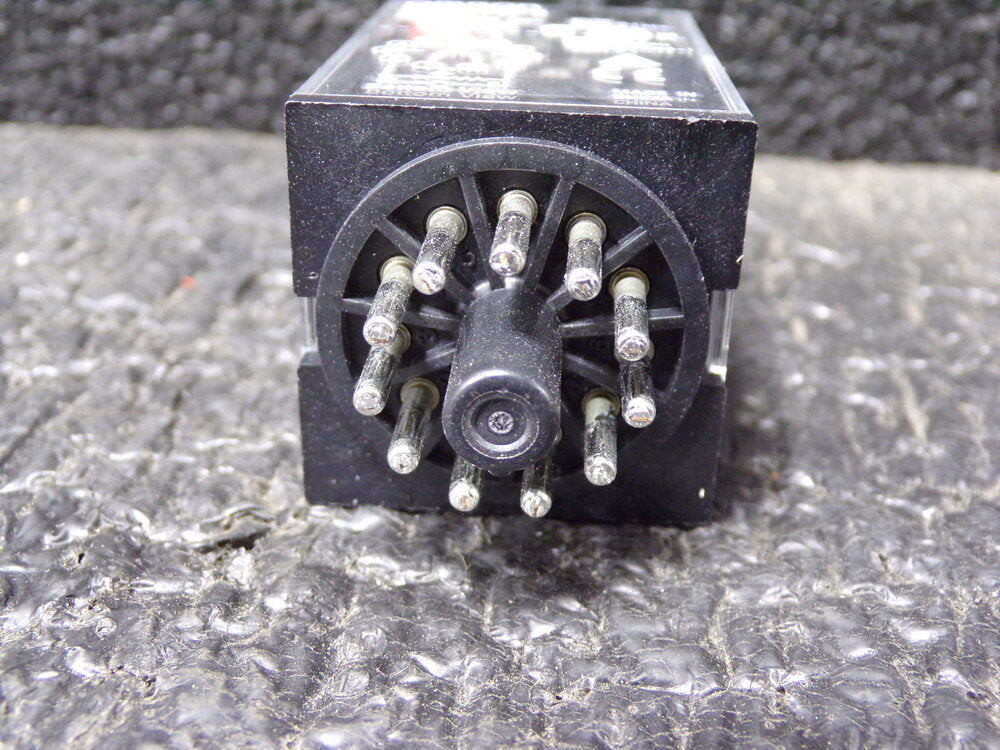

  • Base Type - Plug In Relay: Octal

  • Number of Pins - Relay: 11

  • Contact Form - Relay: 3PDT

  • Mounting - Relay: Plug In

  • Socket Code - Relay: B

  • Power Consumption - Relay: 1.4 W

  • Contact Material: Silver Tin Indium

  • Status Indicator: LED and Mechanical Flag

  • Push To Test: No

  • Body Height - Relay: 2.07 in

  • Body Width - Relay: 1.36 in

  • Body Depth - Relay: 1.36 in

  • Overall Height - Relay: 2.5 in

  • HP @ 120V: Not Rated

  • HP @ 240V: Not Rated

  • Standards: CE Marked, TUV, UL Listed

  • Green Environmental Attribute: RoHS 2011/65/EU Compliant
