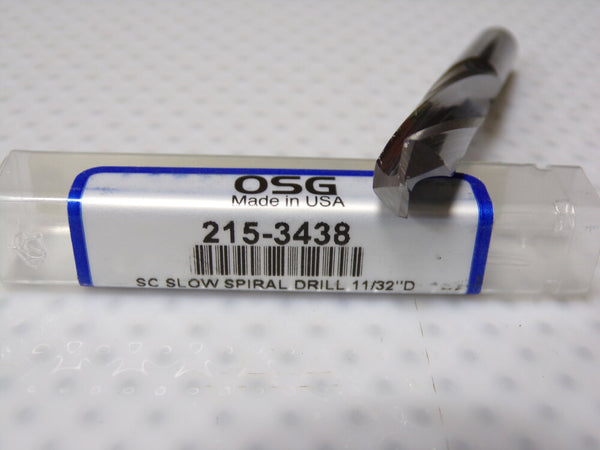

OSG 11/32" 135° Spiral Flute Solid Carbide Screw Machine Drill Bit (SQ0188652WT14)

Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.

Spiral flutes are constructed of a higher flute angle to remove chips easier.

Drill Bit Size (Decimal Inch): 0.3438

Drill Bit Size (Inch): 11/32

Drill Point Angle: 135

Drill Bit Material: Solid Carbide

Drill Bit Finish/Coating: Bright

Flute Type: Spiral

Cutting Direction: Right Hand

Shank Type: Straight

Coolant Through: No

Flute Length (Inch): 1-11/16

Overall Length (Inch): 3

Point Type: Standard

Shank Diameter (Inch): 11/32

Spiral Type: Slow Spiral

Threaded Shank: No

Web Configuration: Tapered

Drill Tip Finish/Coating: None

Series/List: 215
