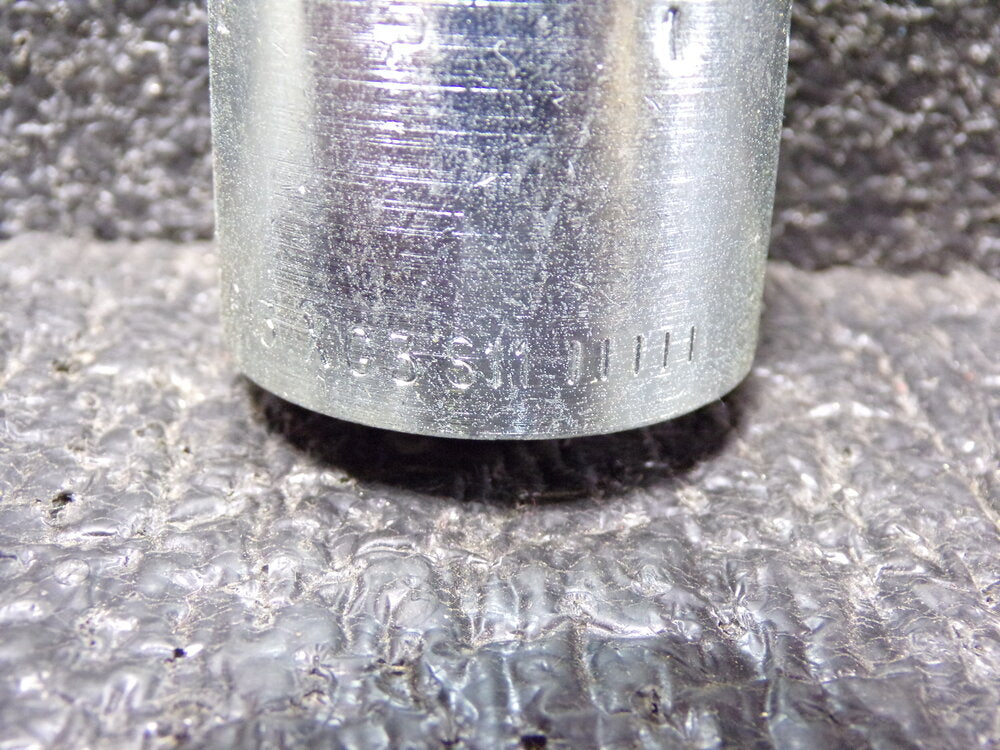

Parker 16A78-12-12, 78 Series Hose Fitting Code 62 Split Flange (SQ9742389WT27)


Shipping calculated at checkout

SKU: SQ9742389WT27

Only 25 left!

Parker 78 Series Fittings is a Parkrimp permanent (crimp) style fitting which permits quick assembly with our family of Parkrimp crimpers. Assembly of No-Skive hose and fittings does not require removal of the outer cover of the hose. This eliminates premature hose failure caused by skiving too long or short. 78 Series Fittings has zinc dichromate plating and are used with 781, 782ST, 782TC, 78C Hose - Parker Hydraulic Spiral Hose.

End 1: 1 Inch

Inner Diameter: 0.75 Inch

Material: Steel


Trade Name: Parkrimp

Series: 78

Configuration Type: SAE Code 62 Flange Head - Straight

Inch/Metric: Inch

End 1 Type: Inch

Hose Connection Type: Permanent

Inner Diameter Inch/mm: Inch

Parker Group: Fluid Connector

Parker Division: Hose Products
