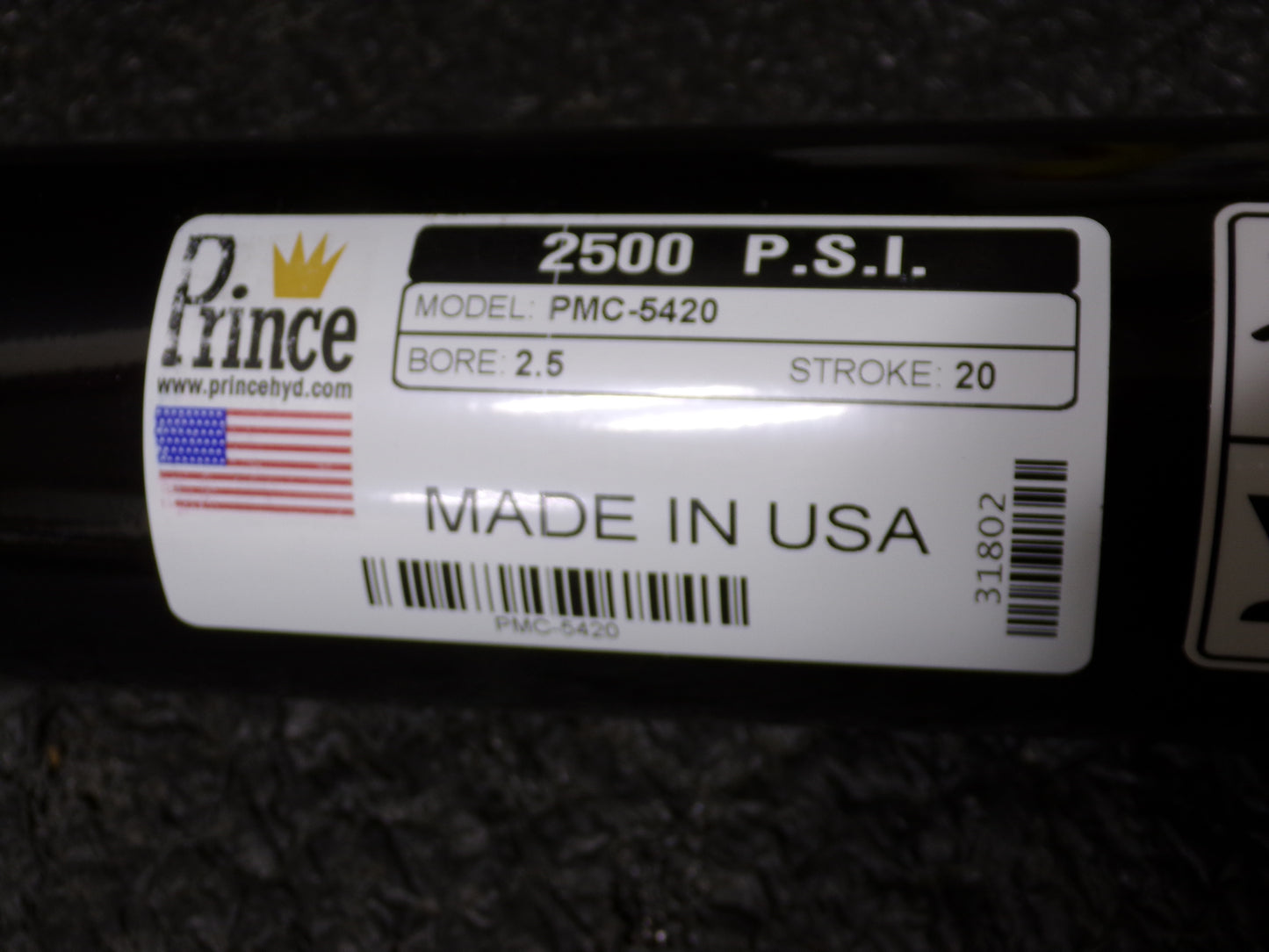

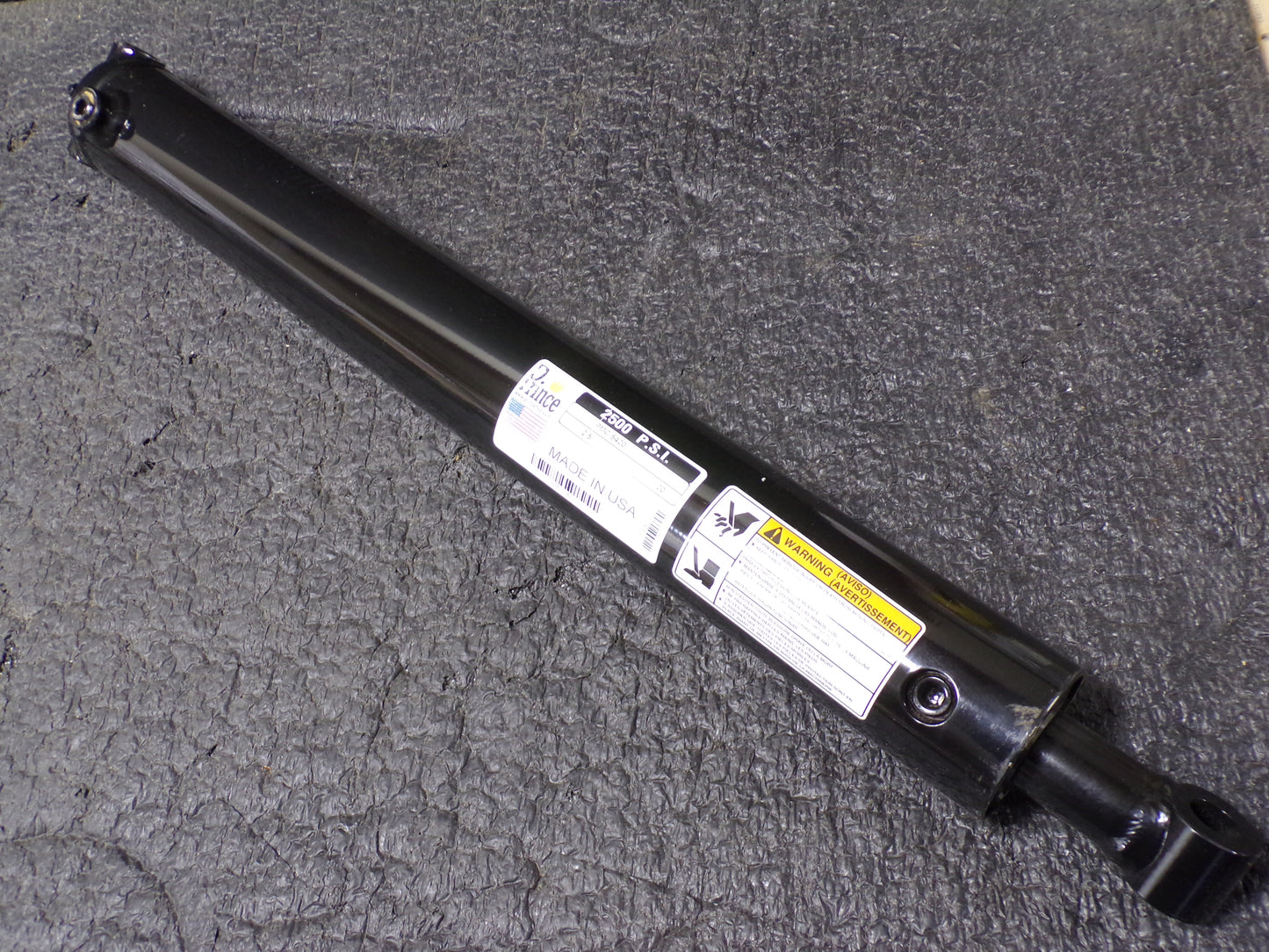

Prince PMC-5420 Repairable Hyd Welded Cylinder, 2-1/2" Bore, Stroke Length: 20", 3/8 NPTF" Port, Rod Dia.: 1-3/8" (CR00602WTA15)


Shipping calculated at checkout

SKU: CR00602WTA15

Only 1 left!

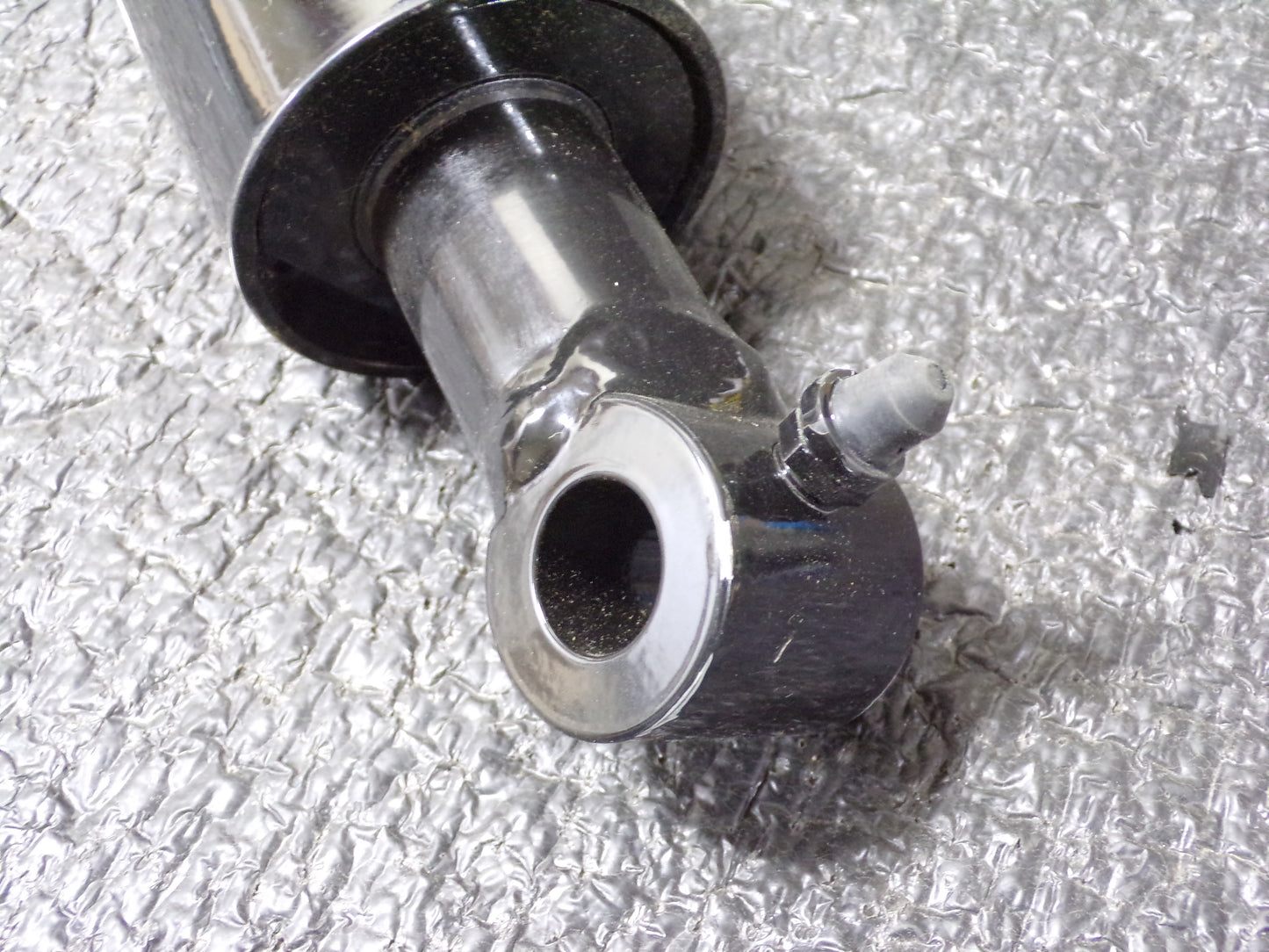

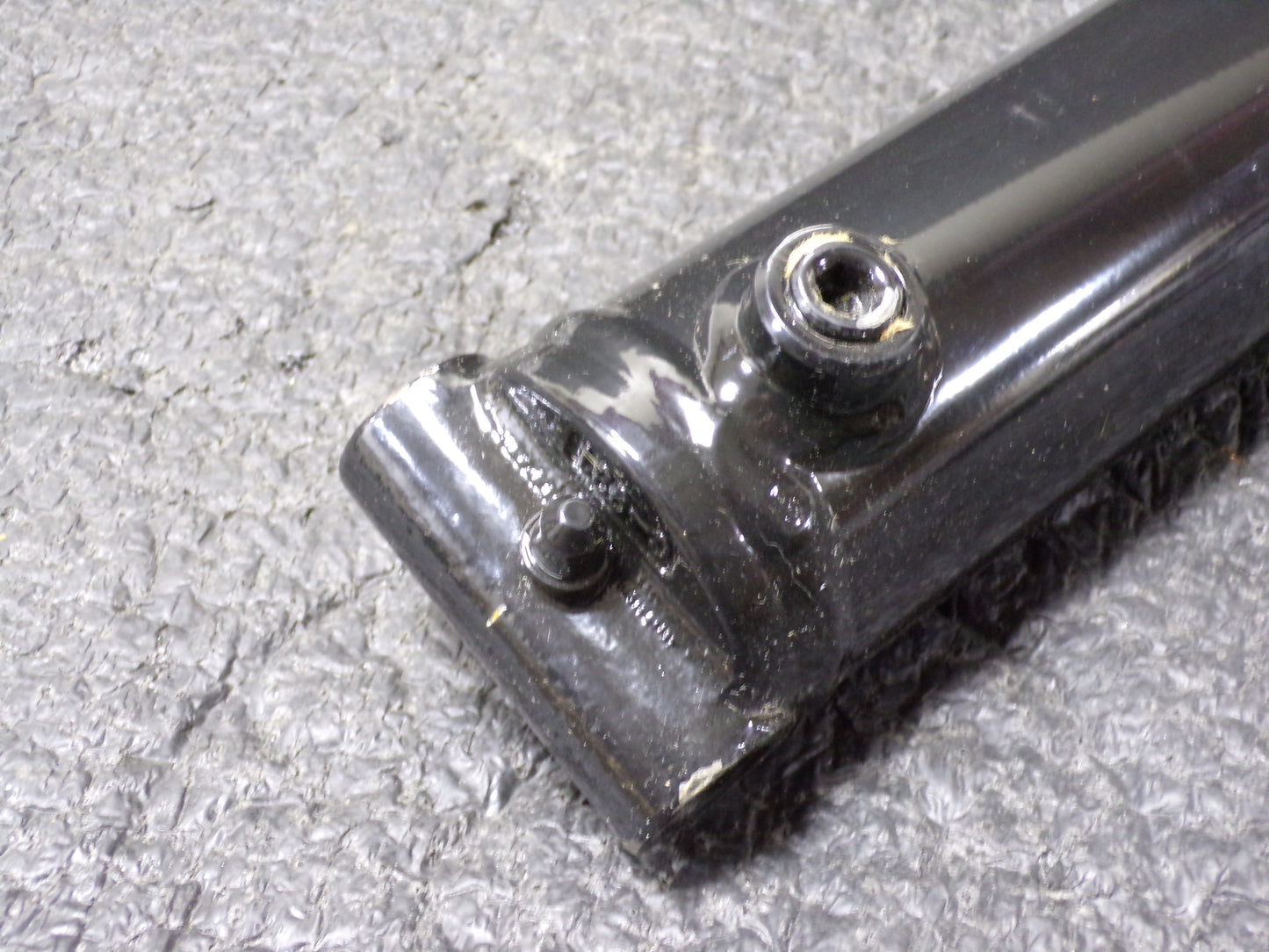

Welded hydraulic cylinders withstand large temperature swings and are designed for rugged applications in harsh industrial environments, including waste and recycling facilities, metal-fabricating presses, and steel mills. Sometimes called round-body cylinders, welded-cross cylinders, or ag cylinders, they are lighter and more compact than tie-rod cylinders, making them a good choice for use in mobile applications. The barrel of the heavy-duty housing is welded directly to the end caps, strengthening the cylinder body and eliminating the need for tie rods. Cross tubes are welded on to the piston end of the cylinder to add stability and have end fittings with grease zerks.

Cylinder Operating Pressure: 2500 psi
Bore Size: 2-1/2 in
Stroke: 20 in
Rod Diameter: 1-3/8 in:
Mounting Type: Universal Mounting
Port Size: 3/8 NPTF
Retracted Length: 28 in
Seal Material: Urethane
