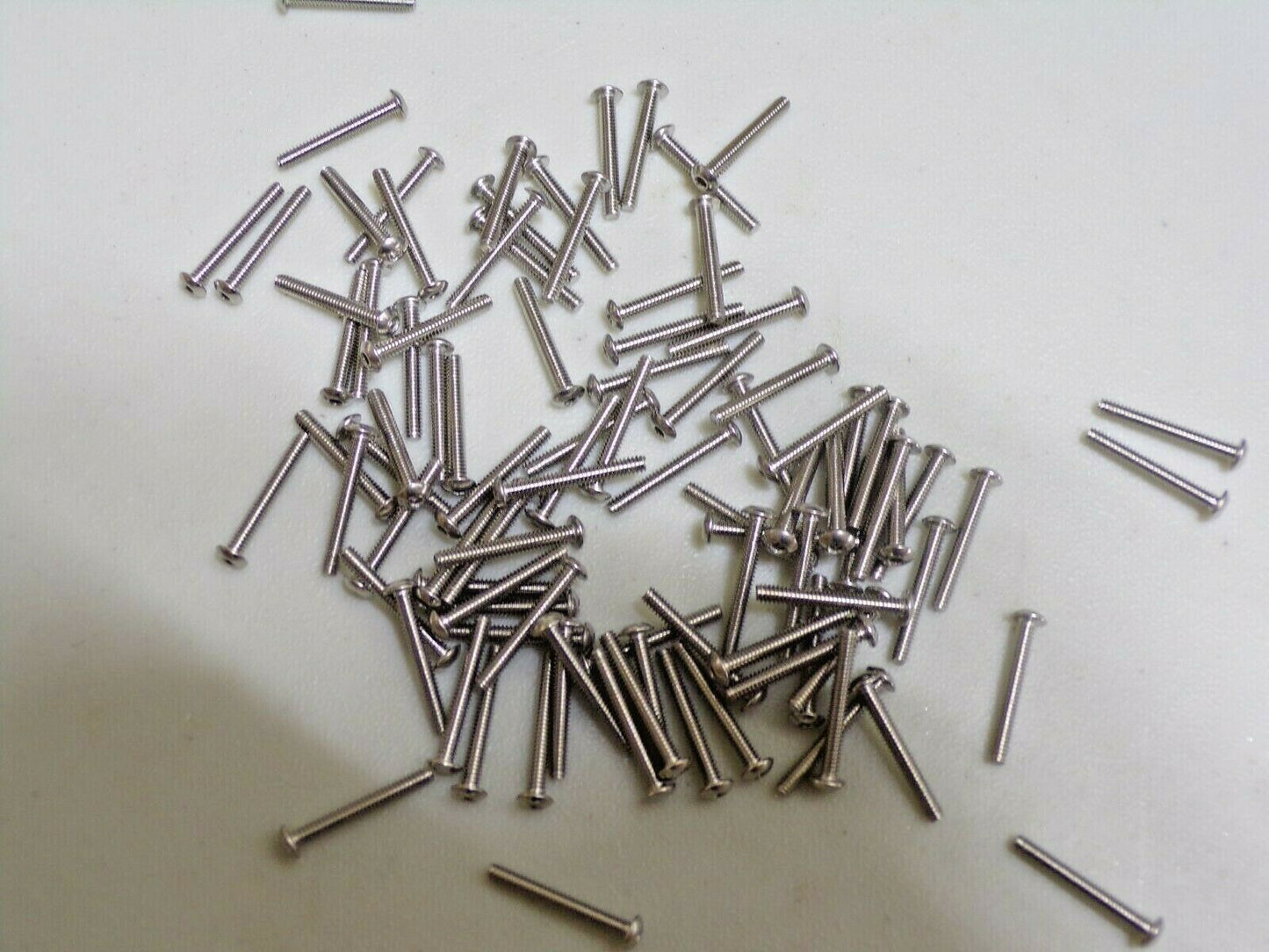

QTY: 100 FABORY Button Socket Head Cap Screw, #3-48 X 3/4 Stainless Steel,18-8, Plain, (183952246143-NBT14)

$6.99

Shipping calculated at checkout

SKU: 183952246143-NBT14

Only 9 left!

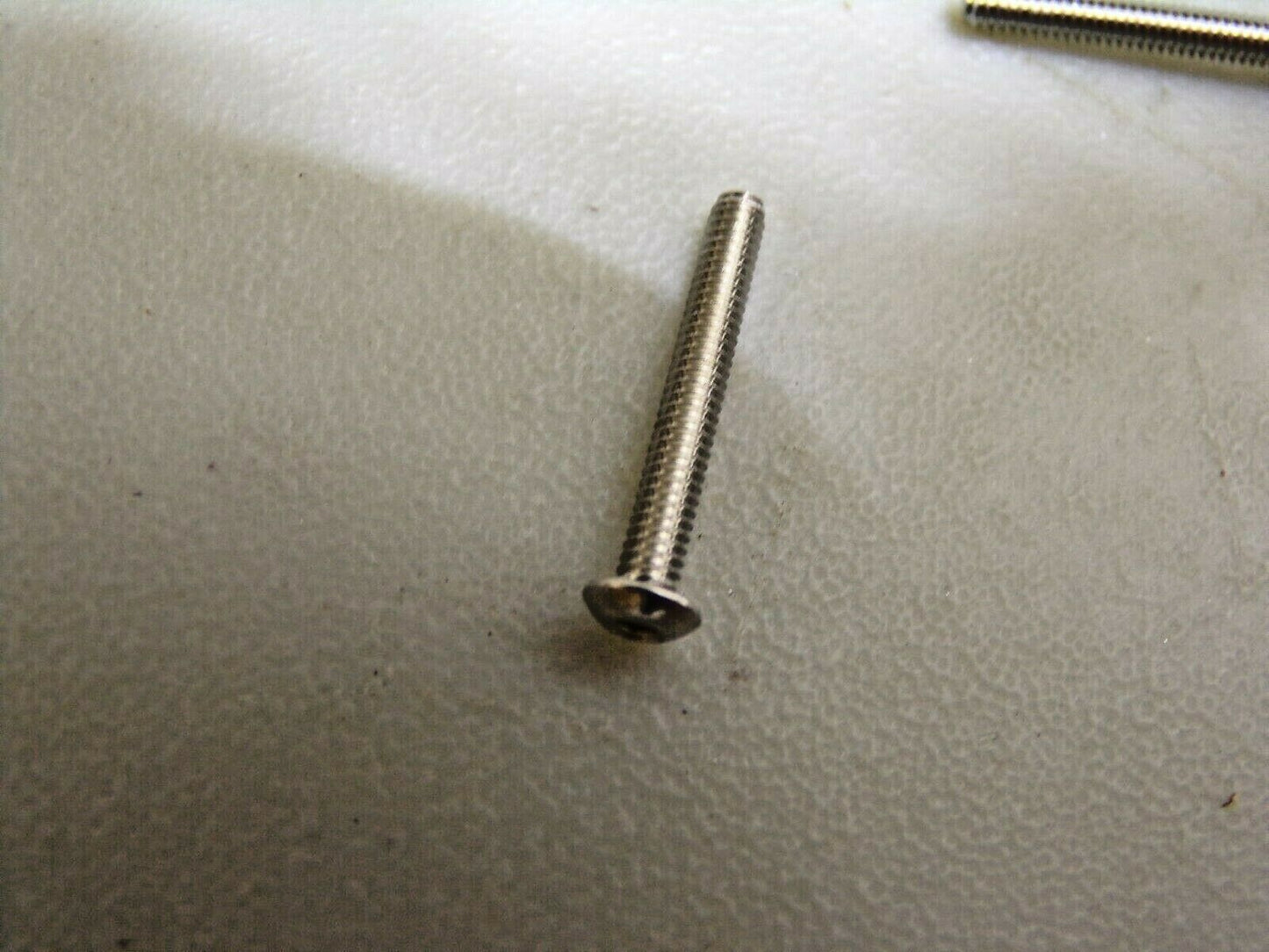

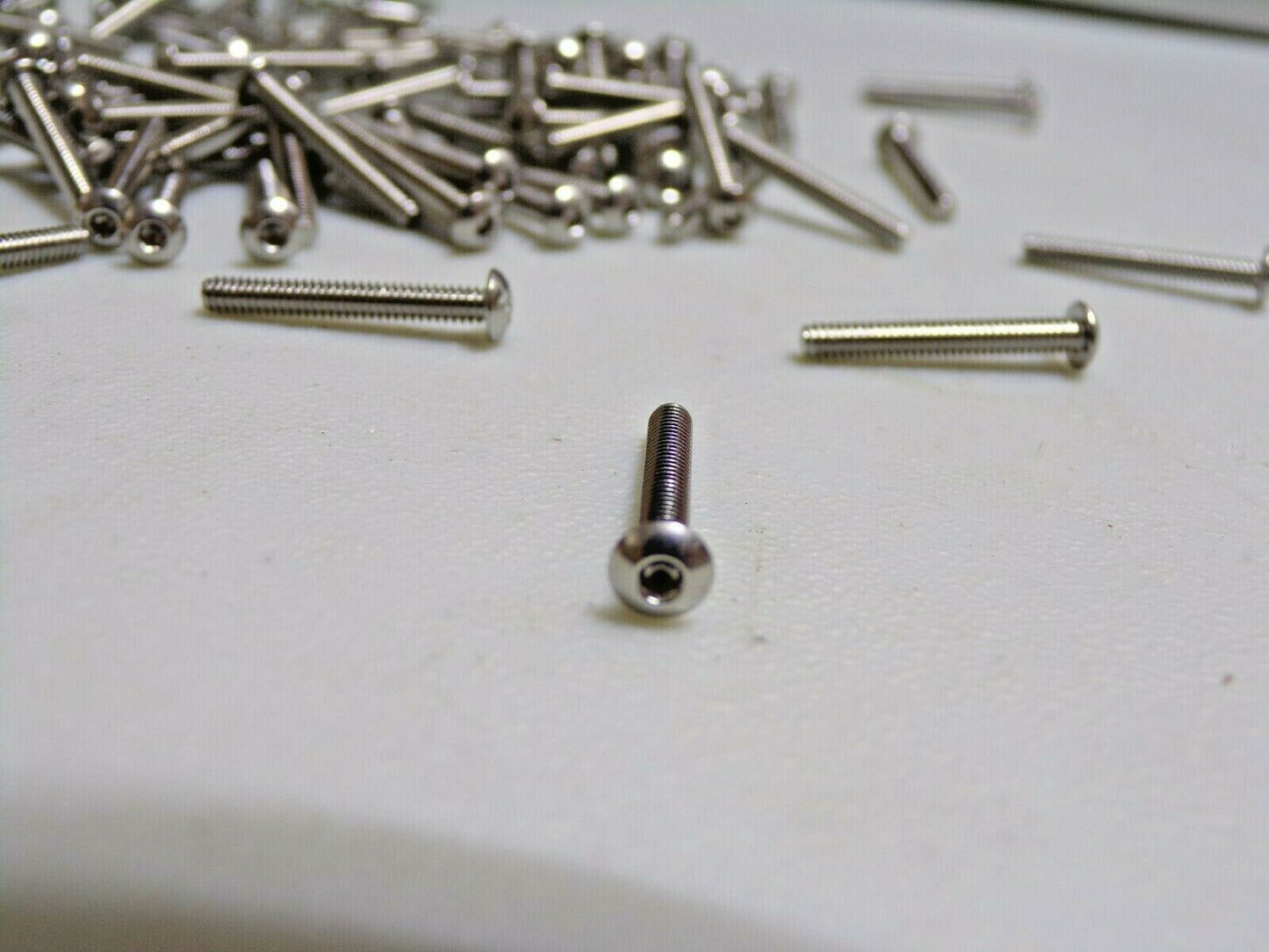

This button head socket head cap screw has a dome-shaped head with wider hex socket and lower profile than standard. Ideal for lighter applications with low limited clearance where loading capacity is not critical. Minimum thread length is calculated using the screw’s length. The formula is dia. X 2 + 1/4”. This small but critical part helps keep your production running smoothly.


Technical Specs

  • Item: Socket Head Cap Screw
  • Screw Style: Socket Head Cap Screw
  • System of Measurement: Inch
  • Screw Head Type: Button
  • Basic Material: Stainless Steel
  • Material Grade: 18-8
  • Dia./Thread Size: #3-48
  • Length: 3/4"
  • Fastener Finish: Plain
  • Fastener Thread Type: UNC (Coarse)
  • Drive Type: Hex Socket
  • Drive Size: 1/16"
  • Thread Style: Fully Threaded
  • Thread Direction: Right Hand
  • Thread Length: 3/4"
  • Head Height: 1/16"
  • Thread Dia.: #3
  • Vented Hole Size: Not Vented
  • Head Dia.: 3/16"
  • Temp. Range: -65 Degrees F to 300 Degrees F
  • Rockwell Hardness: B80 to C32
  • Min. Tensile Strength: 85,000 psi
  • Fastener Industry Standards: ASTM F879, ASME B18.3
