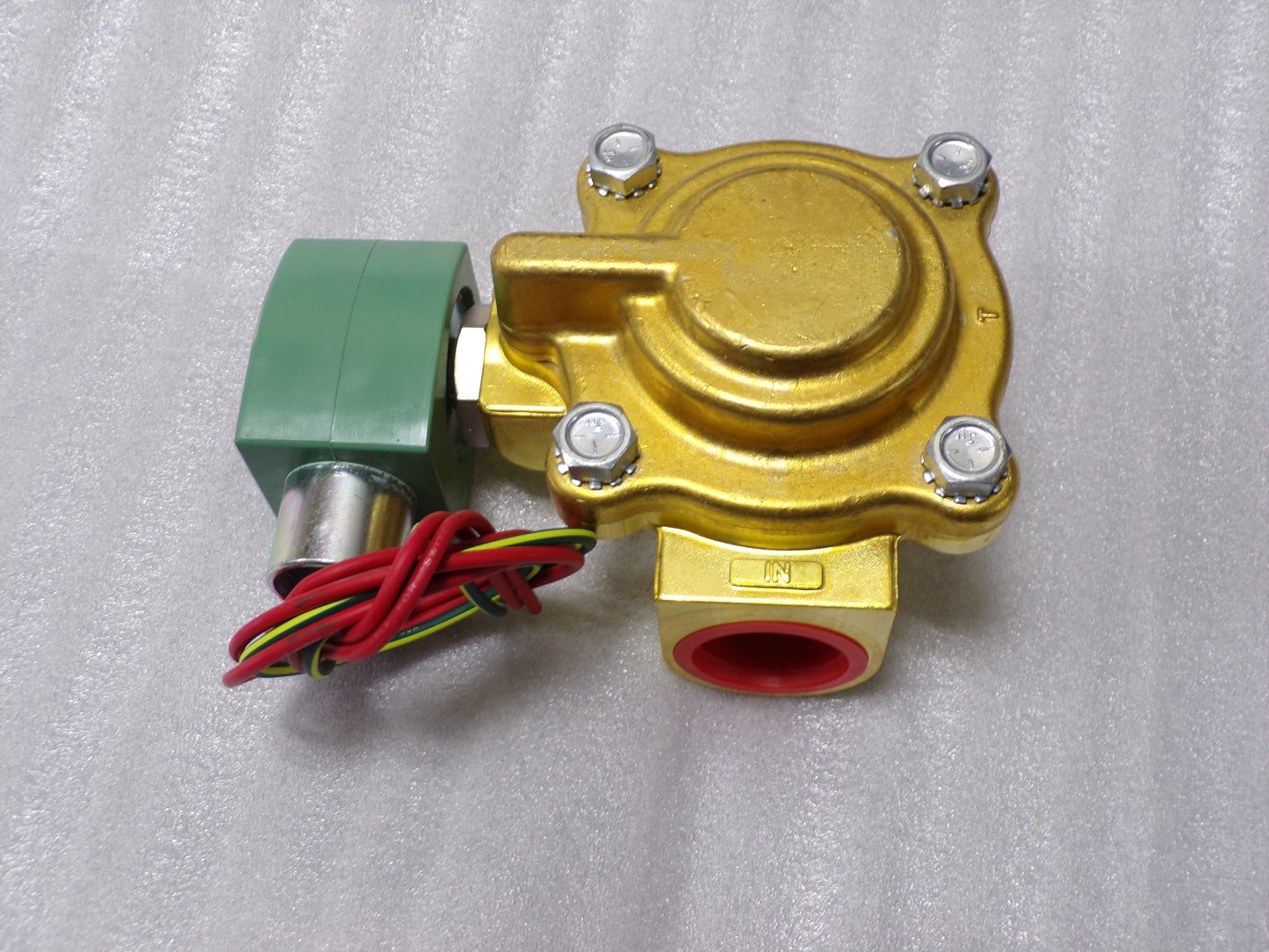

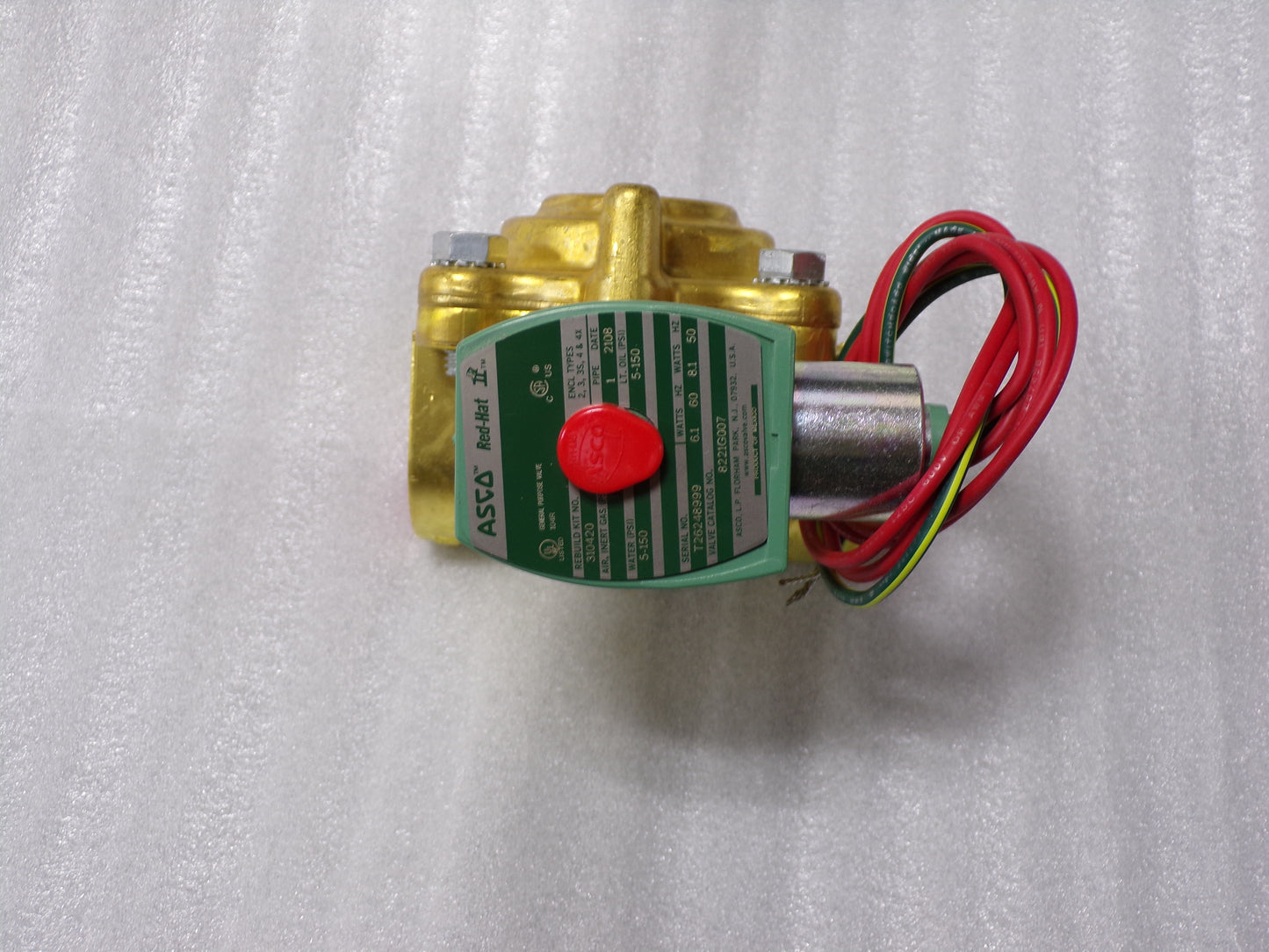

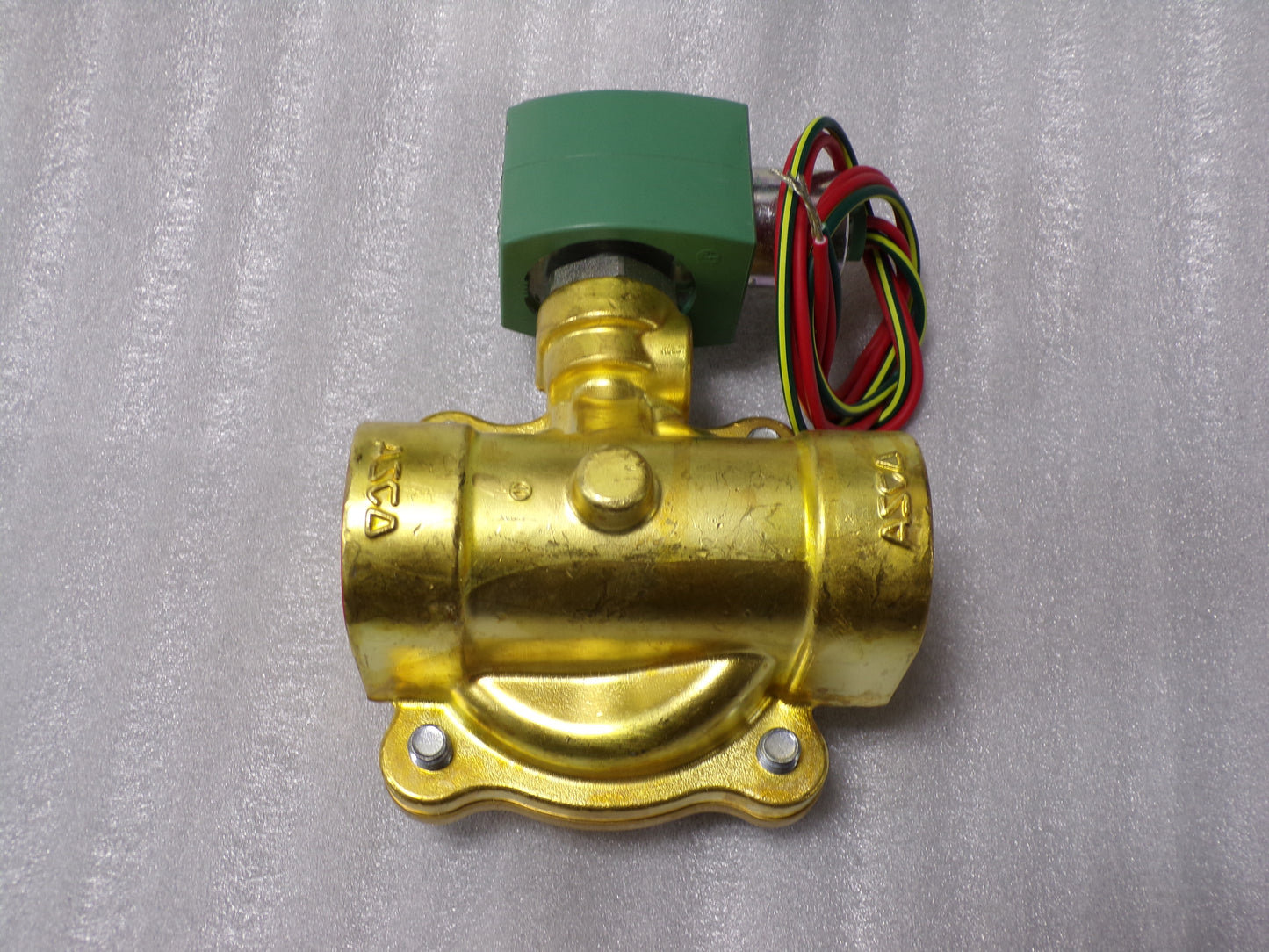

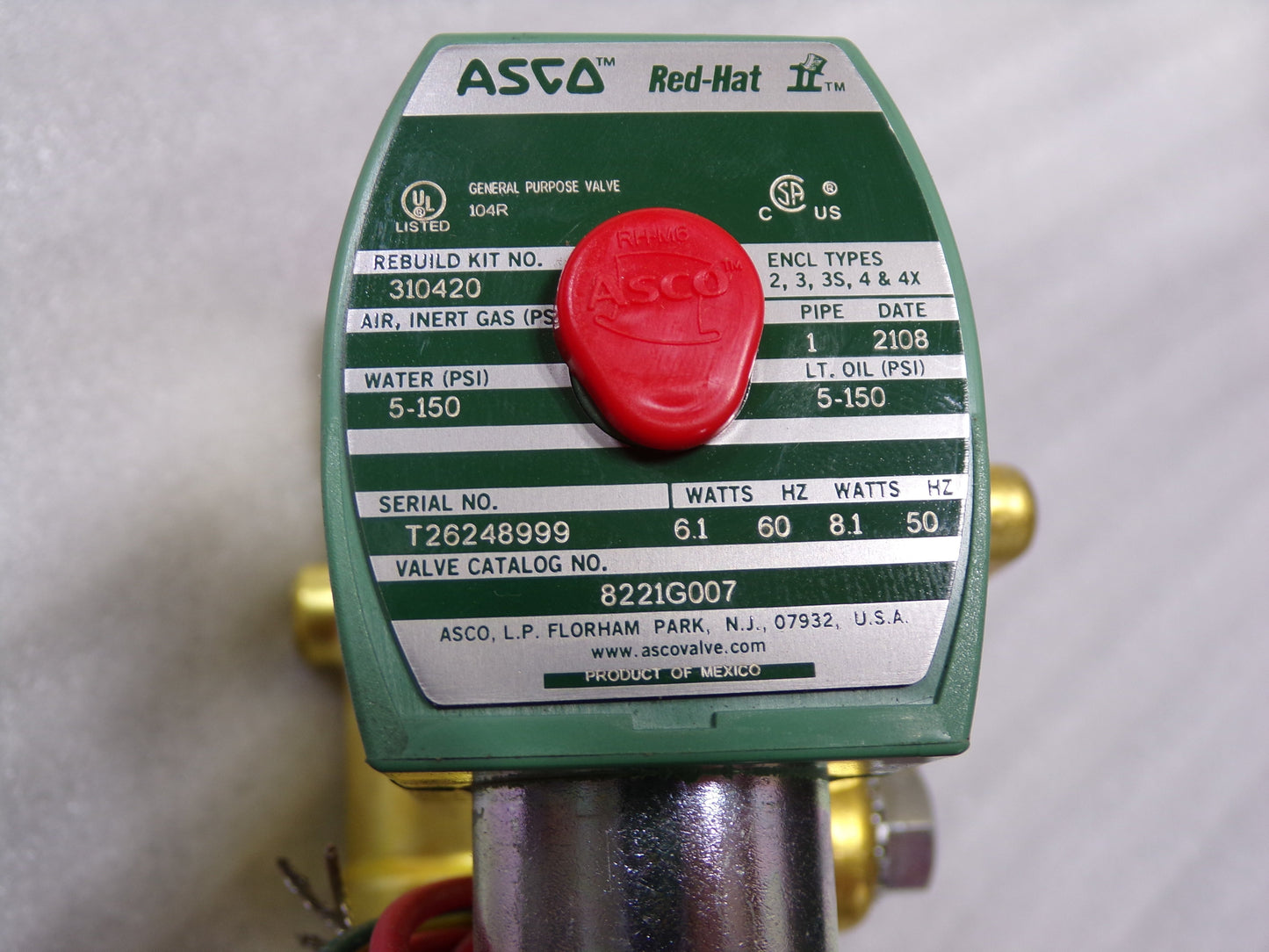

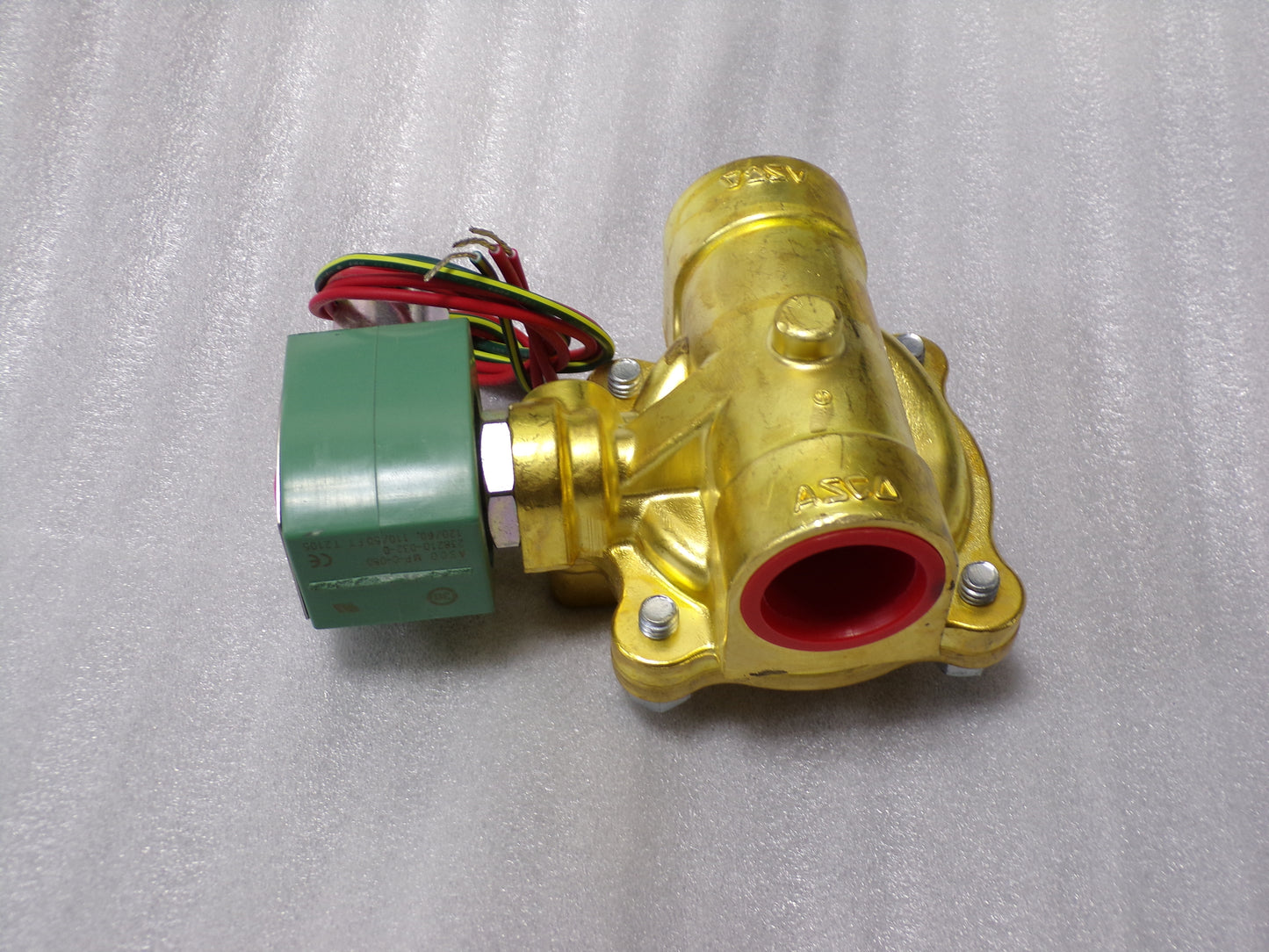

REDHAT 120V AC Brass Slow Closing Solenoid Valve, Normally Closed, 1" Pipe Size (CR00550WTA14)
$499.99
Shipping calculated at checkout
SKU: CR00550WTA14
This Red Hat® solenoid valve helps reduce pressure spike and brings the water hammer to a level that eliminates the need for suppressors or other controls.
- Item: Slow Closing Solenoid Valve
- Solenoid Valve Product Group: Slow Closing Solenoid Valve
- Valve Ways and Positions: 2-Way/2-Position
- Valve Configuration: Normally Closed
- Media - Valves: Water
- Pipe Size - Valves: 1 in
- Min. Operating Pressure Differential: 5 psi
- Max. Operating Pressure Differential Light Oil: Not Rated
- Max. Operating Pressure Differential Water: 150 psi
- Environmental Rating - Valves: Indoor, Outdoor
- Voltage: 120V AC
- Coefficient of Volume: 11.5
- Body Material - Valves: Brass
- Coil Insulation Class: F
- Seal Material - Valves: NBR
- Orifice Dia.: 1 in
- NEMA Rating: 1, 2, 3, 3S, 4, 4X
- IP Rating: 66
- Max. Fluid Temp.: 180 Degrees F
- Hz: 50/60
- Watts: 6.1 W
- Coil Enclosure: Watertight No Junction Box
- Electrical Connections: 1/2 in Conduit w/18 in Leads
- Overall Length: 3 3/4 in
- Overall Width: 3 3/16 in
- Overall Height: 5 5/8 in
- Center Line Pipe Center Size: 4 in
- Application: To Protect Against the Water Hammer Problems Experienced in Many Water and Light Oil Applications
