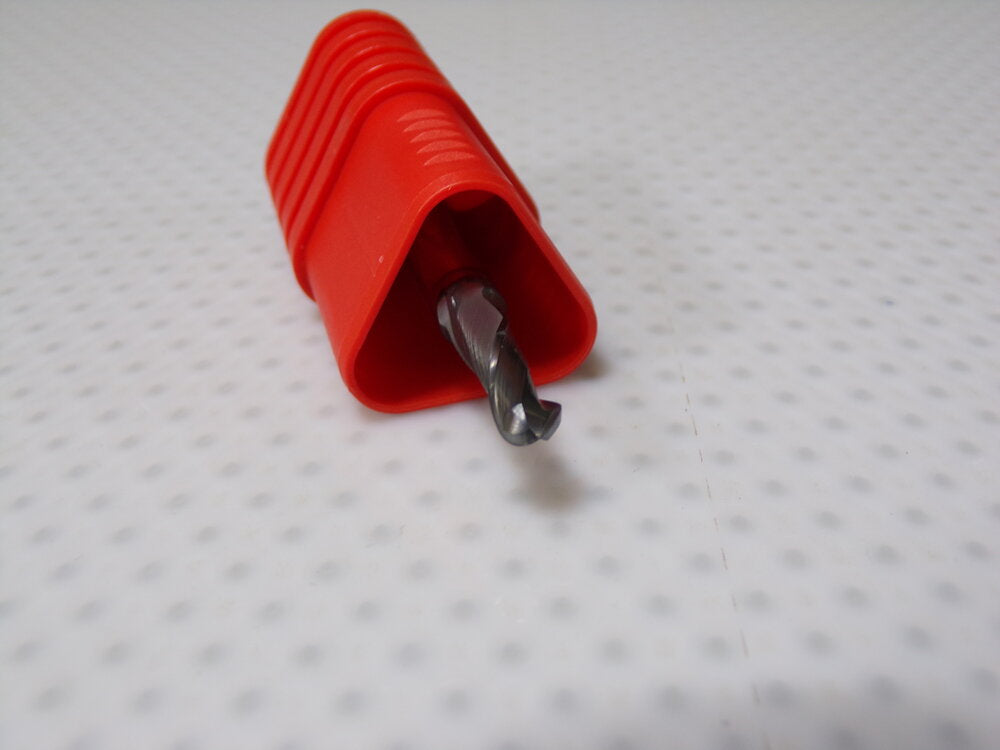

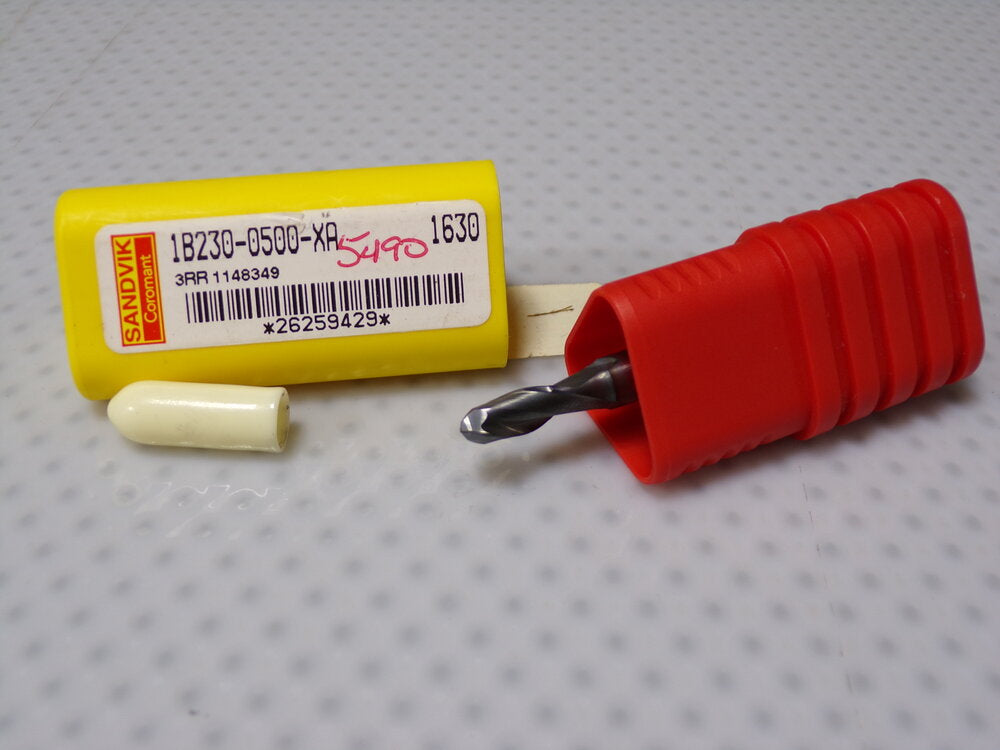

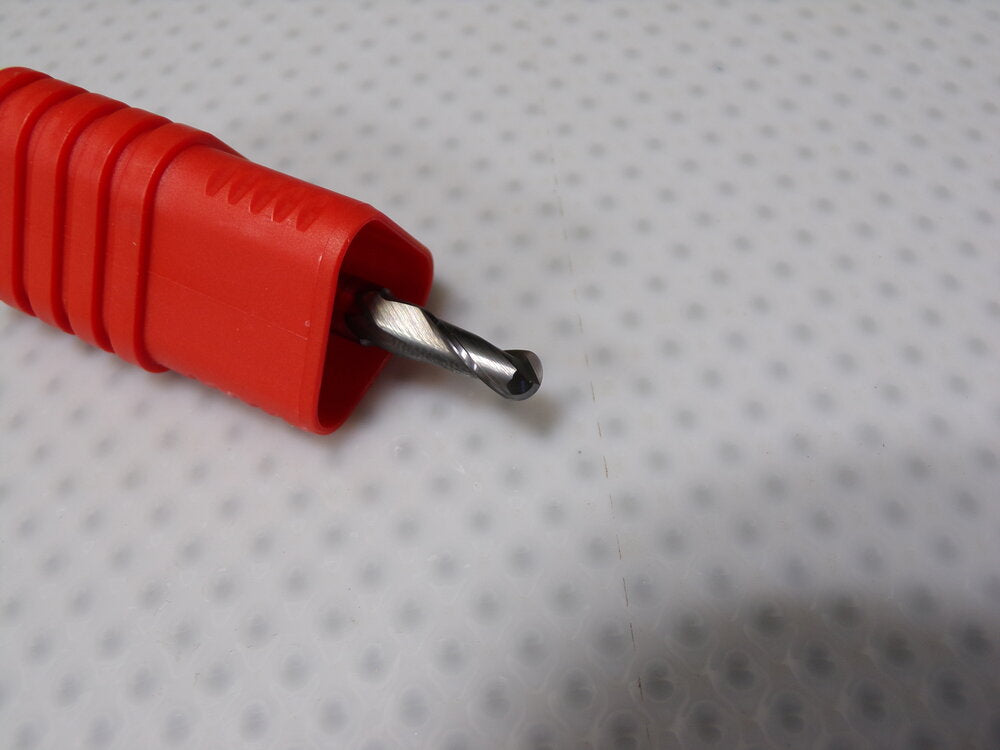

Sandvik Coromant 5mm Diam, 10mm LOC, Solid Carbide Ball End Mill (SQ9987262WT08)

Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Aluminum chromium nitride (AlCrN) has higher heat resistance than AlTiN. It is commonly used for machining aircraft and aerospace material, nickel alloy, stainless steel, titanium, cast iron and carbon steel.

Specs

Mill Diameter (mm): 5.00

Mill Diameter (Decimal Inch): 0.1969

Length of Cut (mm): 10.00

Length of Cut (Decimal Inch): 0.3937

Material: Solid Carbide

Overall Length (mm): 57.00

Shank Diameter (mm): 6.0

Finish/Coating: AlCrN

Helix Angle: 30.00

Variable Index: No

Variable Helix: No

Mill Diameter Tolerance (mm): h9

Mill Diameter Tolerance (Decimal Inch): h9

Flute Type: Ball

Shank Diameter Tolerance (mm): h8

Shank Diameter Tolerance (Decimal Inch): h8

Series/List: CoroMill Plura

Cutting Direction: Right Hand

Flute Direction: Right Hand
