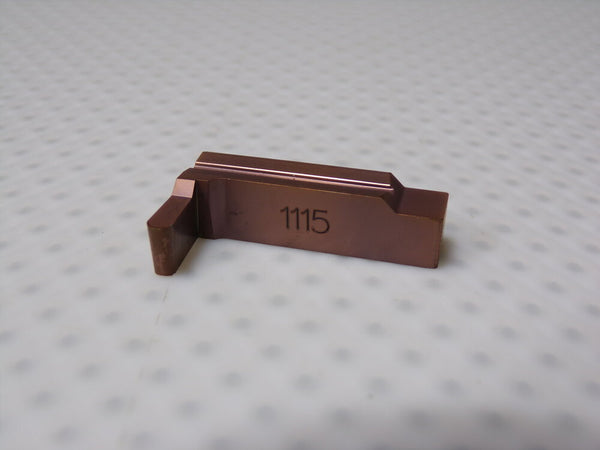

Sandvik Coromant X1RG123.. RS 3mm Cutting Width Carbide Grooving Insert (SQ4898816WT14)

Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Insert Style: RG123..

Insert Size: X1

Material: Carbide

Cutting Width (mm): 3.00

Cutting Width (Decimal Inch): 0.1181

Maximum Depth of Cut (mm): 8.99

Maximum Depth of Cut (Decimal Inch): 0.3540

Coating: TiAlN/AlCr2O3

Insert Hand: Right Hand

Cutting Height (mm): 6.05

Cutting Height (Decimal Inch): 0.2382

Insert Seat Size: L

Chipbreaker: RS

Multi-Use Application: Grooving; Parting

Multi-Use Tool: Yes

Minimum Corner Radius (Decimal Inch): 0.0591

Corner Radius (mm): 1.50

Corner Radius (Decimal Inch)0.0591

Coating Process: PVD

Overall Length (Decimal Inch): 1.2170

Series: CoroCut 1-2

Rake: Positive

ISO Number: RG123L1-0300-0015-RS1115

Manufacturers Catalog Number: RG123L1-0300-0015-RS1115

Overall Width (Decimal Inch): 0.1180

Insert Thickness (Decimal Inch): 0.2382
