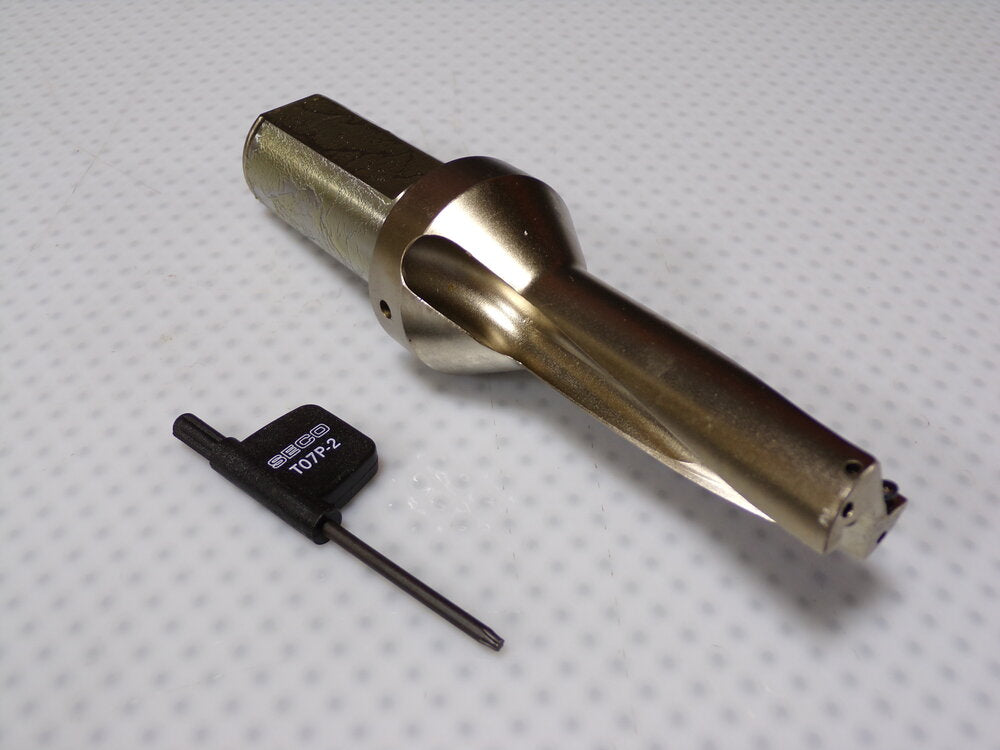

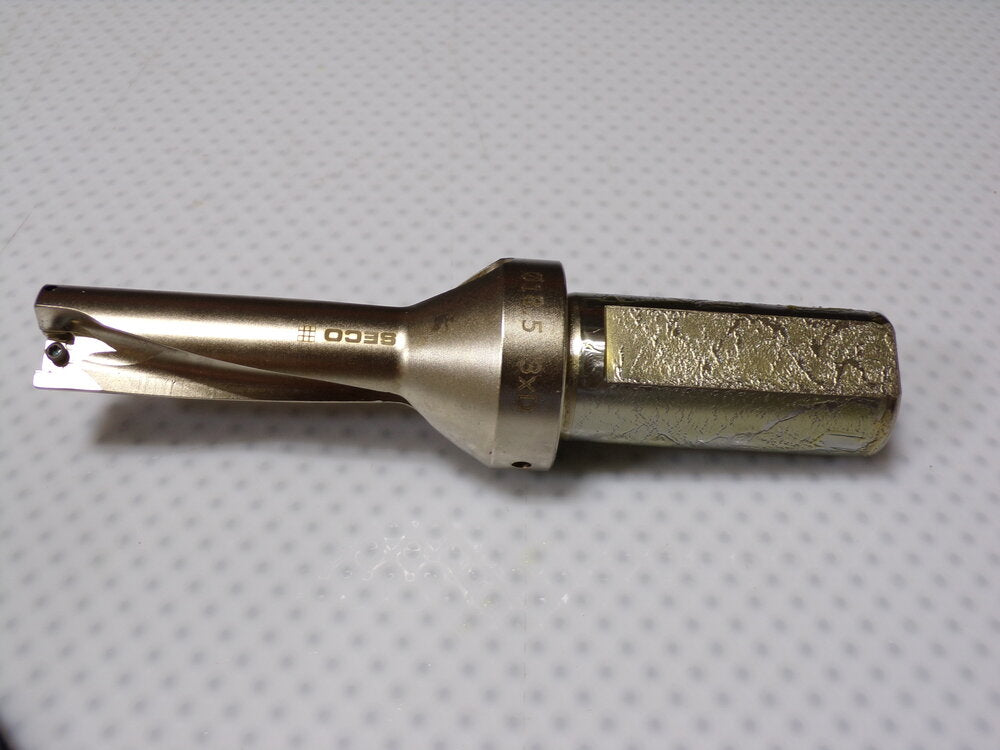

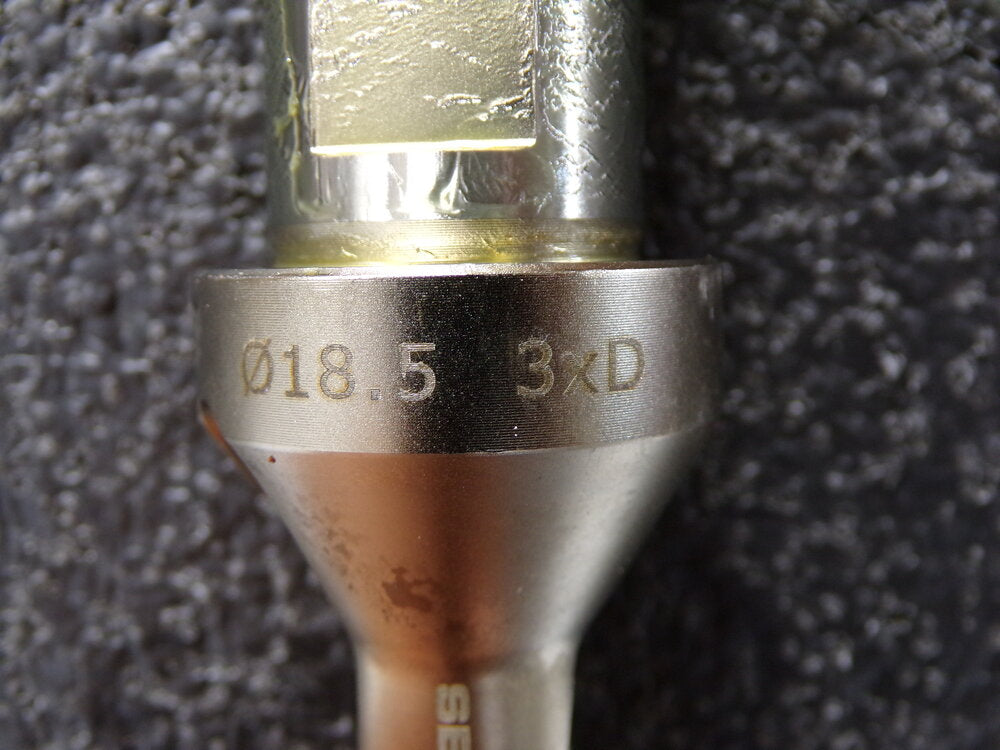

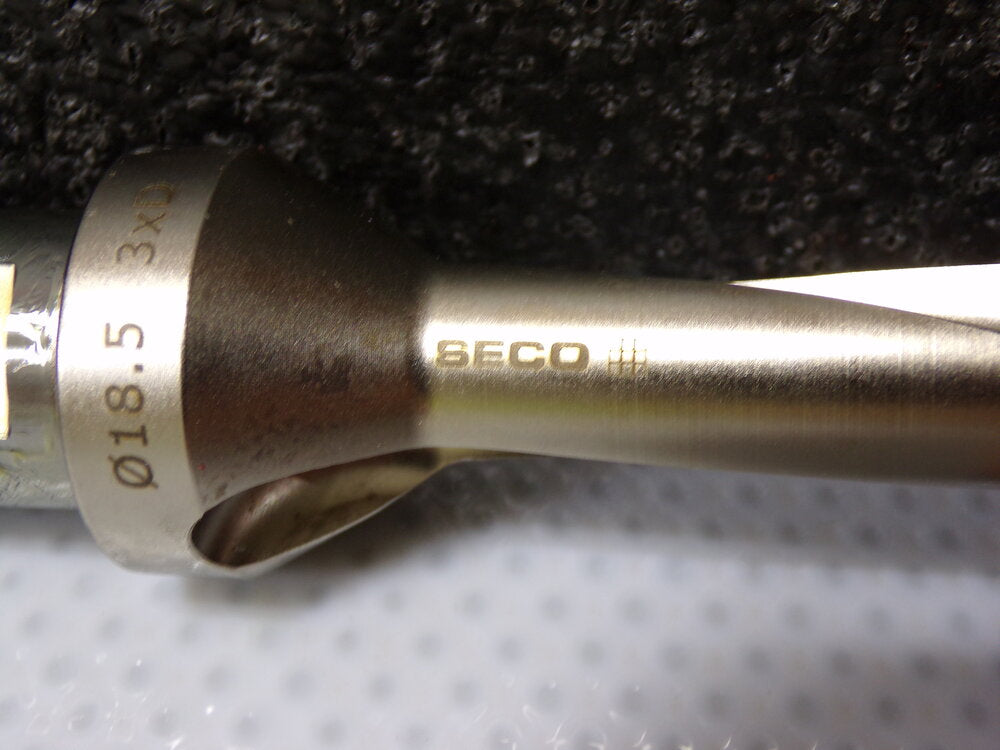

Seco 56mm Max Drill Depth, 3xD, 18.5mm Diam, Indexable Insert Drill (SQ7357583WT14)

Manufacturer: Seco

Mfr Part #: 05864

Drill Style: SD503

Drill Diameter (mm): 18.50

Drill Diameter (Decimal Inch) : 0.7283

Maximum Drill Depth (mm): 56.00

Shank Type: Straight

Shank Diameter (mm): 25.00

Cutting Direction: Right Hand

Through Coolant: Through Coolant

Drill Depth by Diameter Ratio: 3xD

Insert Size (Decimal Inch): 0.2190x0.0940 (Peripheral); 0.2500x0.0940 (Center)

Number of Drill Inserts: 2

Maximum Drill Diameter (mm): 18.75

Overall Length/Projection (mm): 142.00

Overall Length/Projection (Decimal Inch): 5.5906

Insert Compatibility (Outside or Peripheral): SCGX 050204

Insert Compatibility: SPGX 0602-C1

Flute Length (mm): 61.00

Body Length (mm): 86.00

Shank Length (mm): 56.00

Collar Diameter (mm): 35.00

Series: PerfoMAX

Radial Adjustment (-mm): 0.25; 0.35
