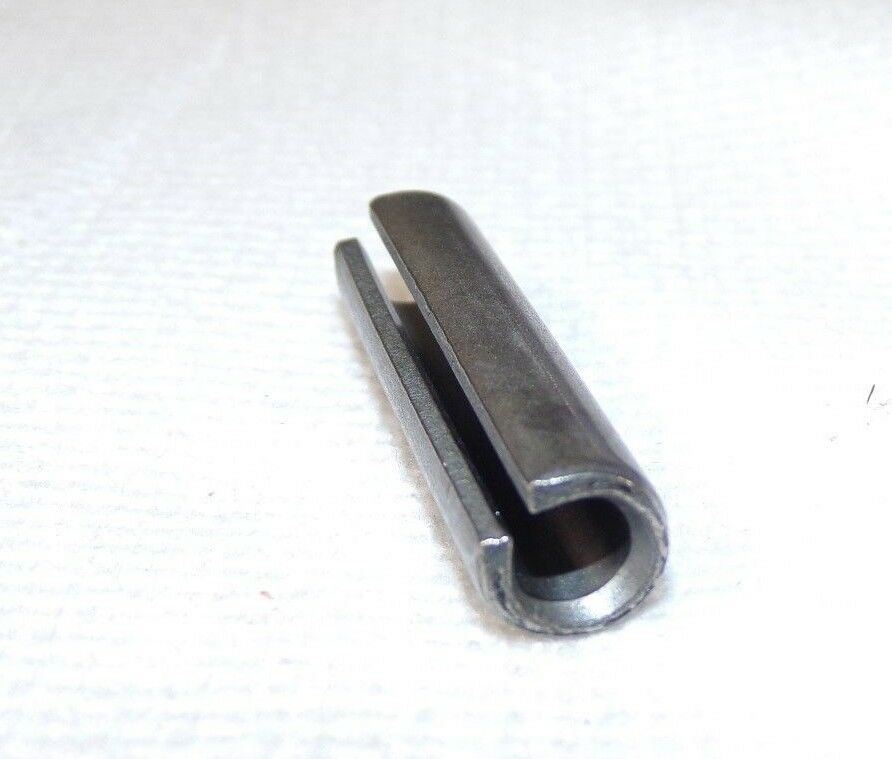

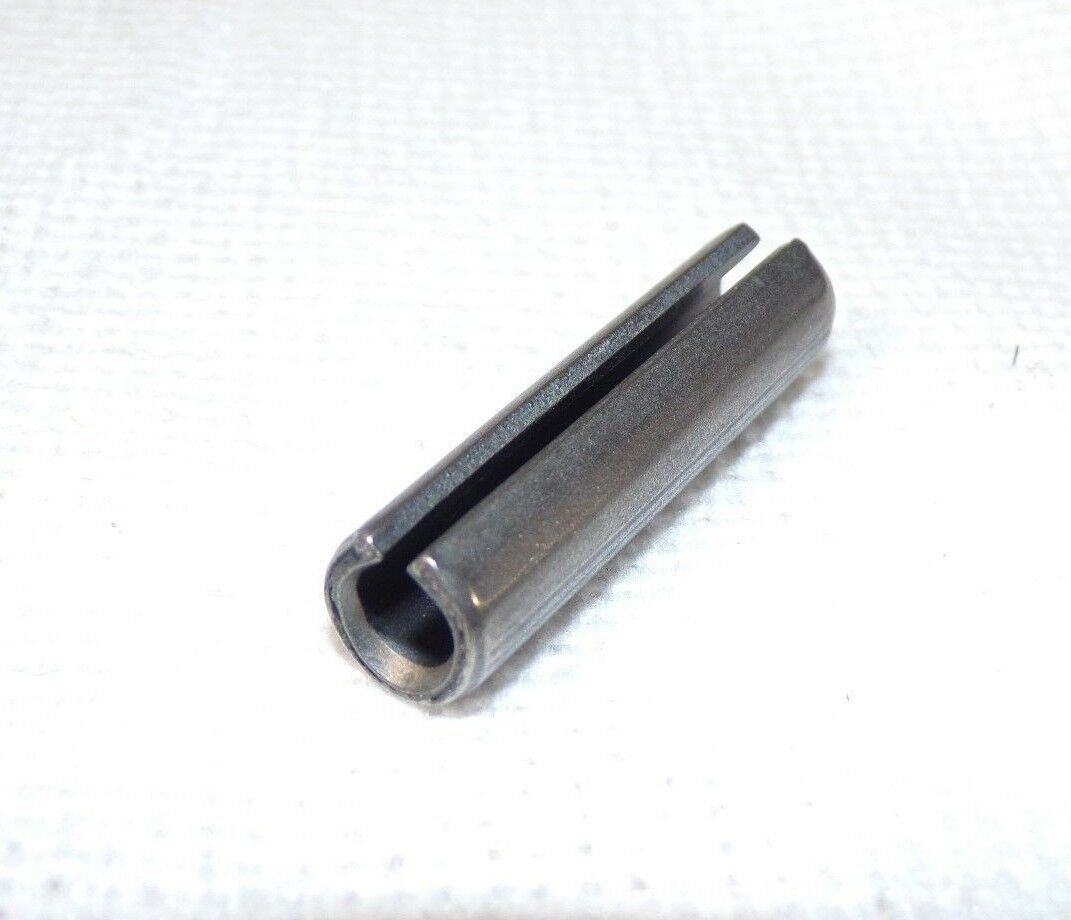

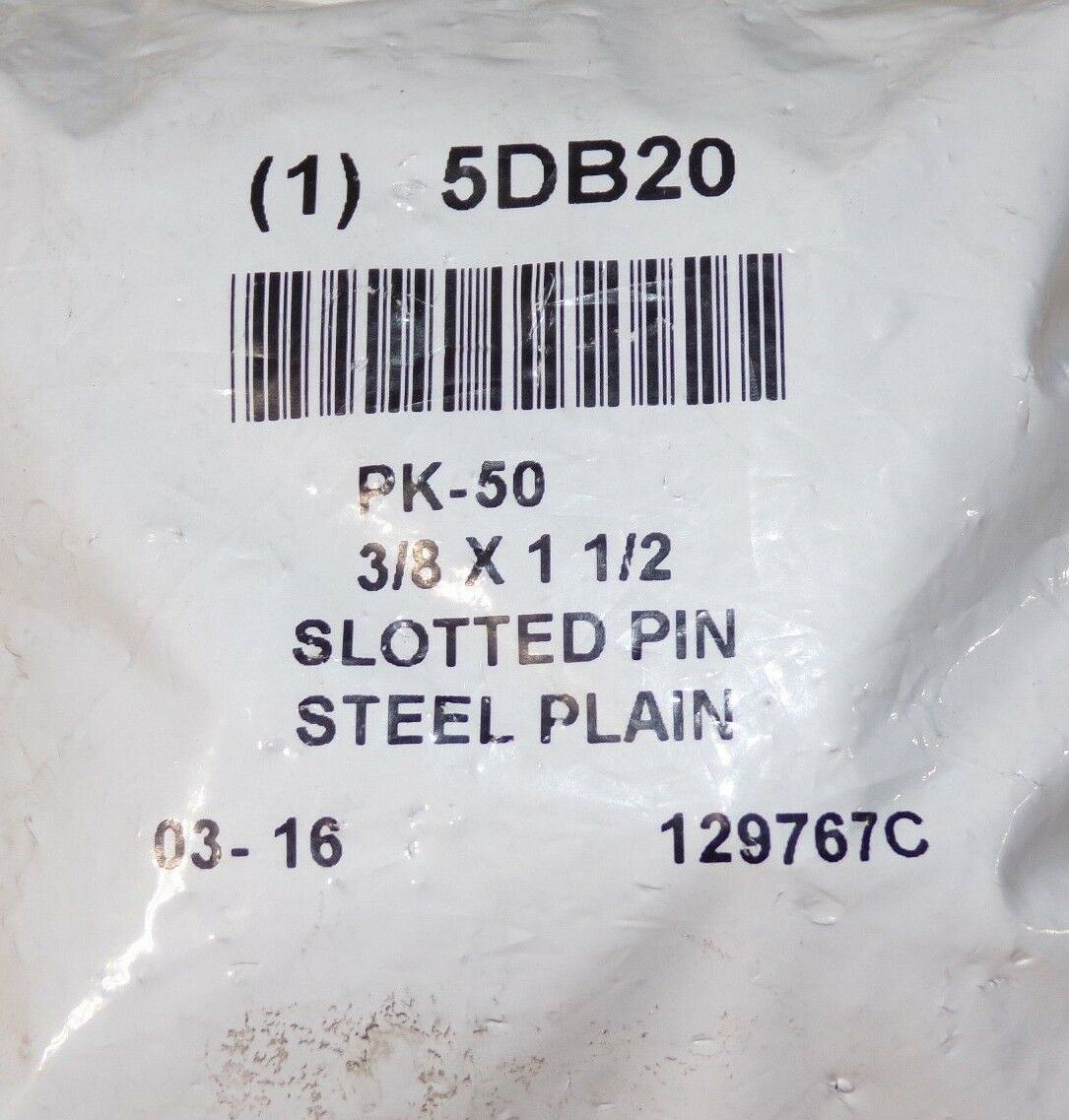

Steel Slotted Spring Pin 1-1/2" Length 3/8" Outside Dia. 5DB20 QTY-50 (183340367164-2F19 (D))

$16.99

Shipping calculated at checkout

SKU: 183340367164-2F19 (D)

Only 1 left!

Steel Slotted Spring Pin 1-1/2" Length 3/8" Outside Dia. 5DB20 QTY-50

  • ItemSpring Pin
  • System of MeasurementInch
  • Spring Pin TypeSlotted
  • Basic MaterialSteel
  • Material Grade1070 and 1080
  • Outside Dia.3/8"
  • Fastener Length1-1/2"
  • Nominal Diameter3/8"
  • Length Tolerance+/-0.020"
  • Chamfer Diameter0.368"
  • Wall Thickness0.077"
  • Chamfer Length (Min.)0.016"
  • Chamfer Length (Max.)0.095"
  • Actual Dia. (Min.-Max)0.385-0.395"
  • Fits Hole Dia. (Min.-Max.)0.375-0.382"
  • Double Shear Strength (Lbs.)16,300
  • Rockwell HardnessRC43-52
  • Package Quantity50
