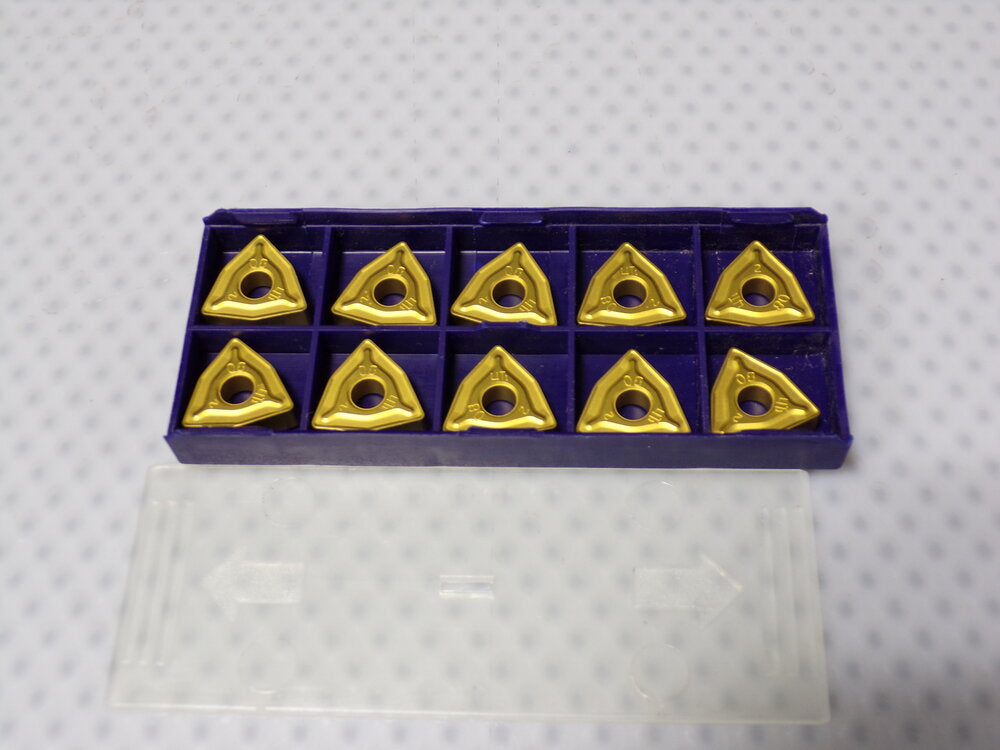

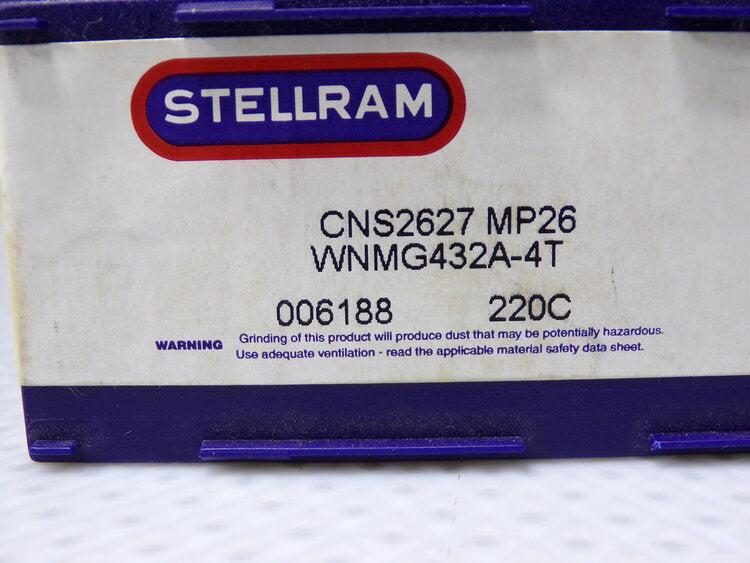

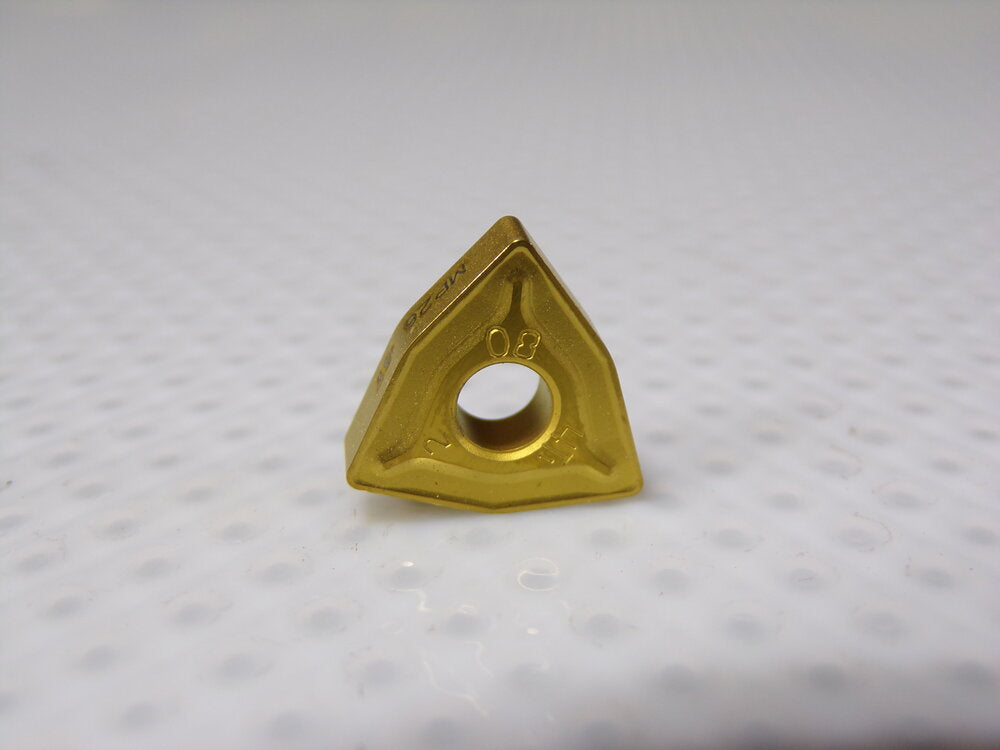

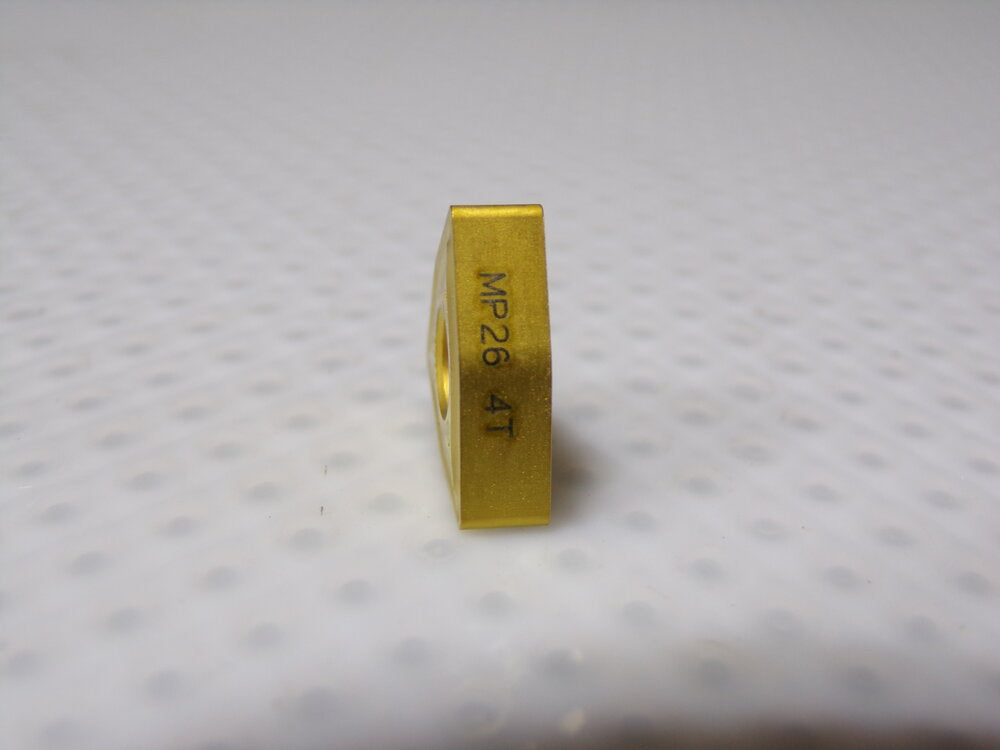

ATI Stellram WNMG432A-4T MP26, Carbide Turning Insert, 80° Trigon, 1/2" Inscr Circle (SQ7498434WT14)

$49.99

Shipping calculated at checkout

SKU: SQ7498434WT14

Available Now!

Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Insert Style: WNMG

Insert Size: 432

Material: Carbide

Length (mm): 8.69

Length (Decimal Inch): 0.3420

Inscribed Circle (Decimal Inch): 0.5000

Inscribed Circle (Inch): 1/2

Thickness (Inch): 3/16

Thickness (Decimal Inch): 0.1875

Corner Radius (Inch): 1/32

Corner Radius (Decimal Inch): 0.0312

Chip Breaker: MP

Hole Diameter (mm): 5.16

Hole Diameter (Decimal Inch): 0.2030

Rake: Positive

Rake Angle: 6

Relief Angle: 0

Coating Process: CVD

Primary Workpiece Material: M

Secondary Workpiece Material: S

Included Angle: 80

Series: KENLOC

Maximum Depth of Cut (mm): 1.25

Maximum Depth of Cut (Decimal Inch): 0.0492

Insert Holding Method: Pin & Clamp

Shape: Trigon
