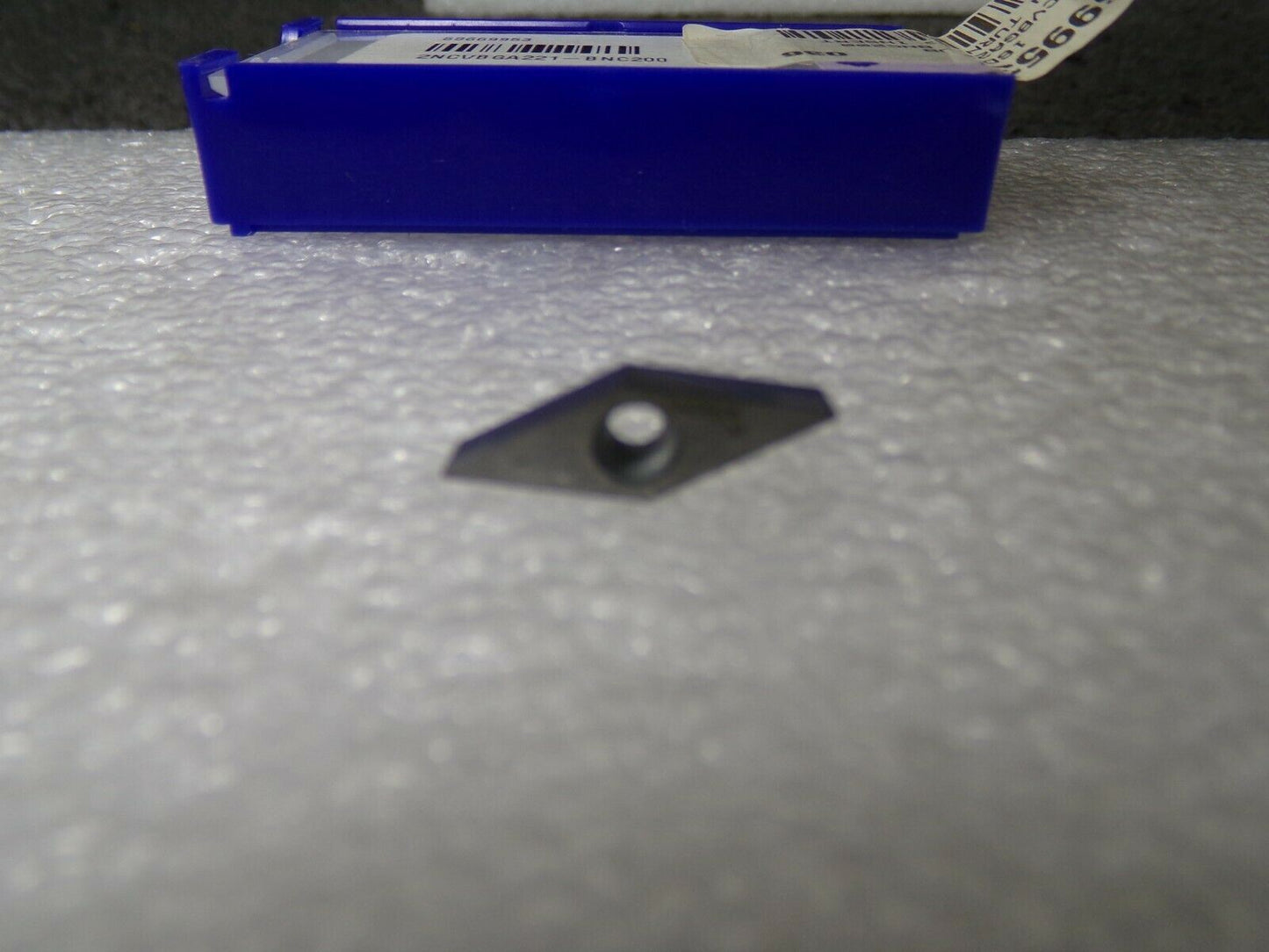

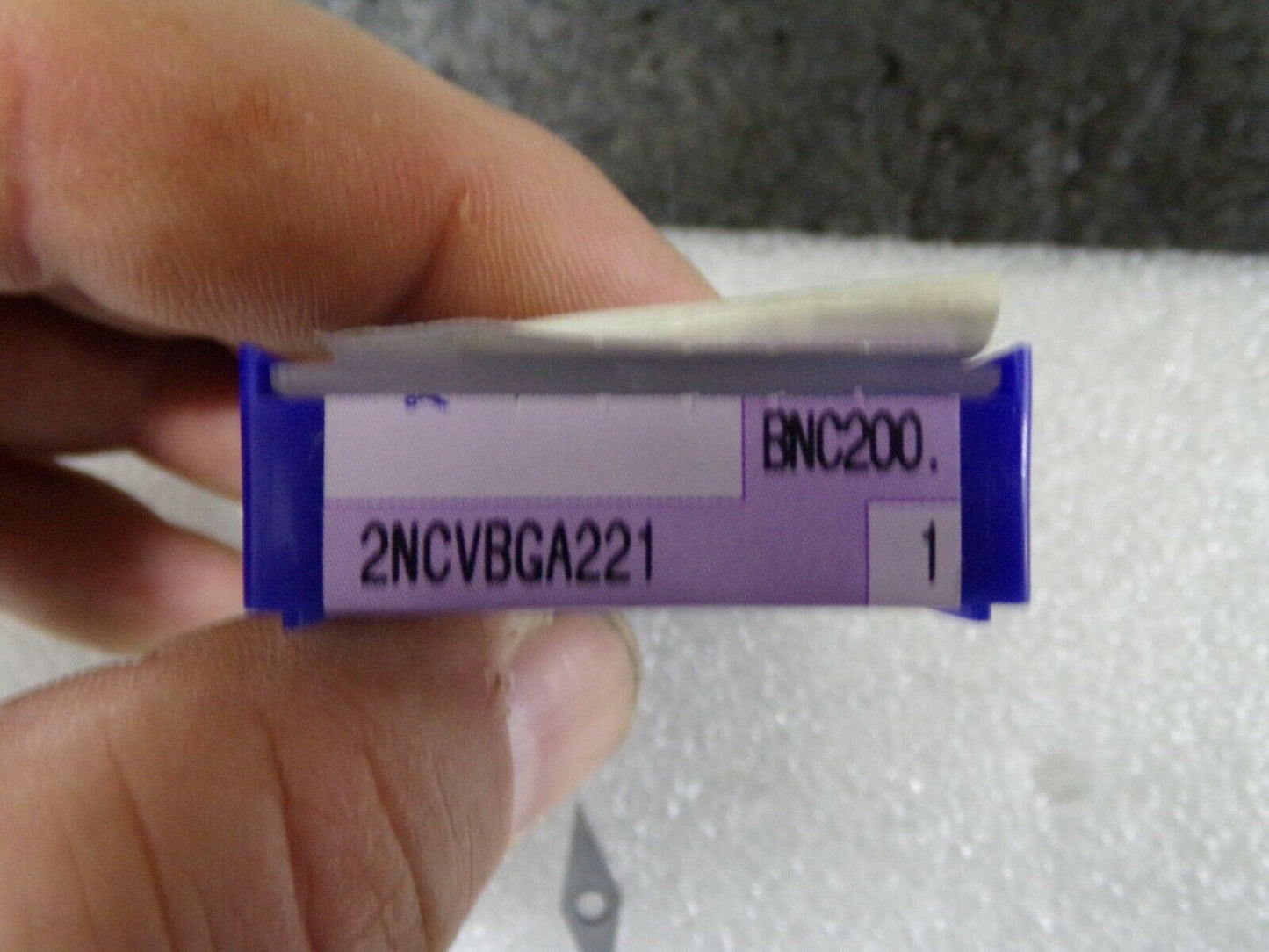

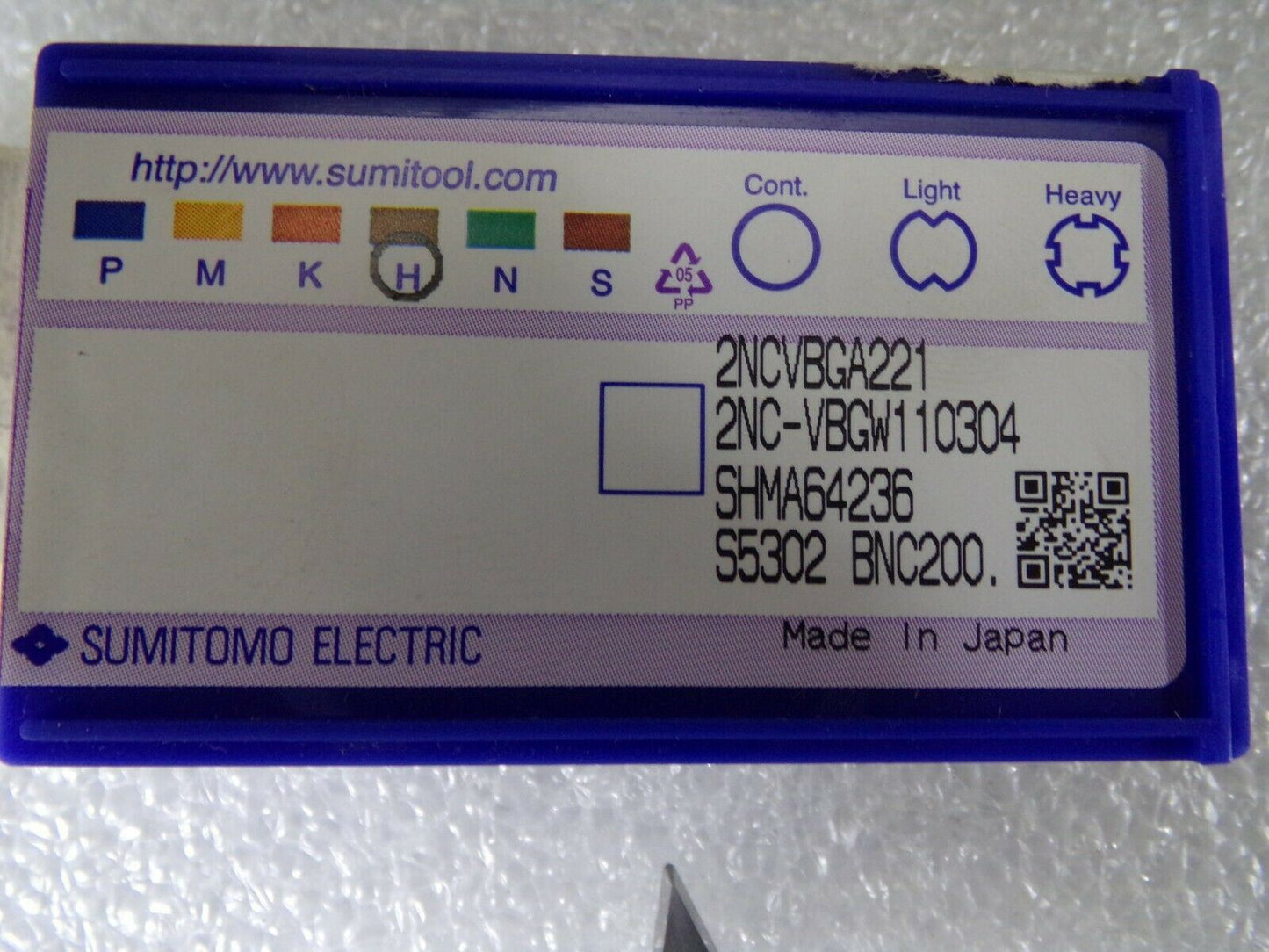

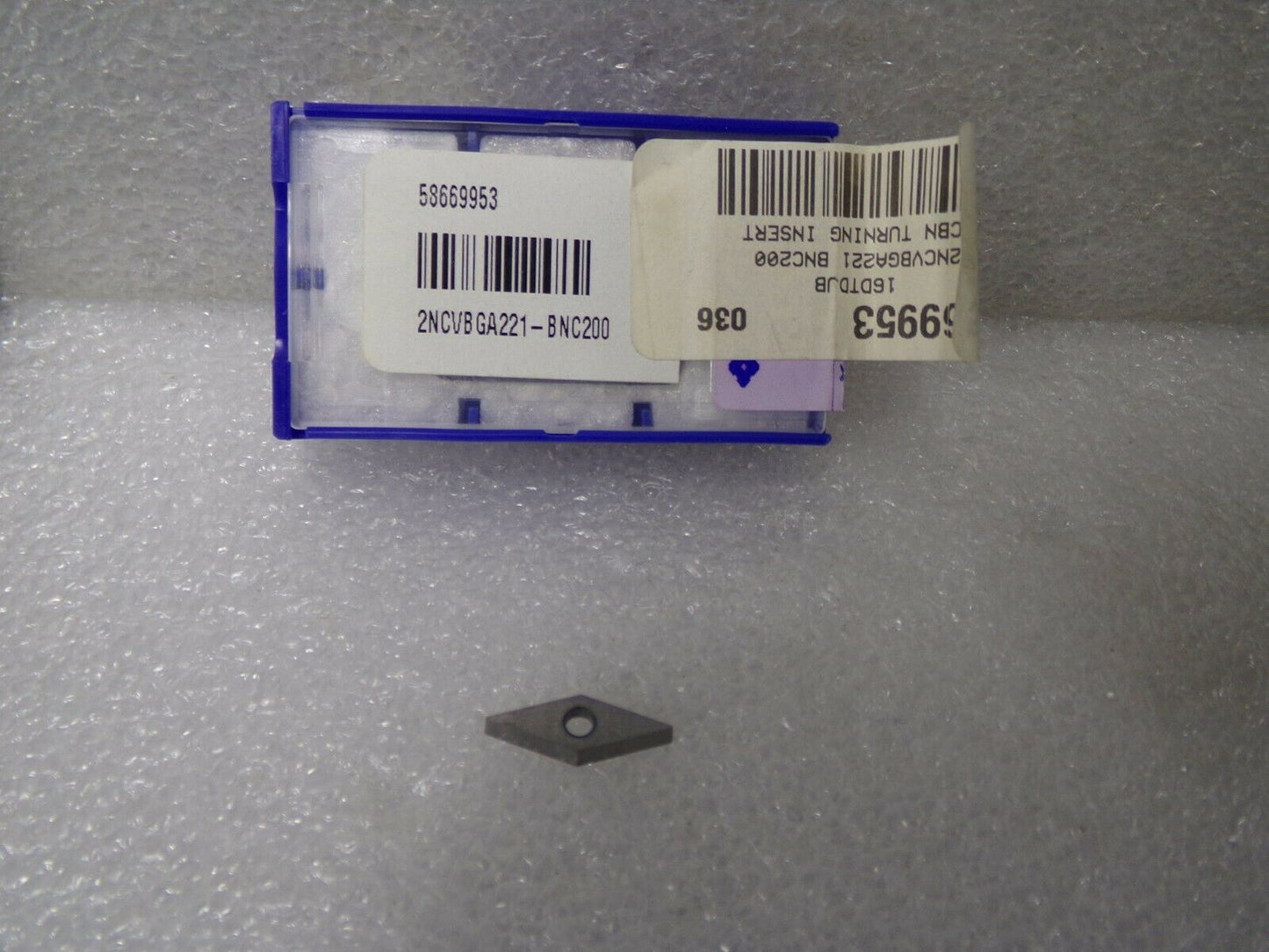

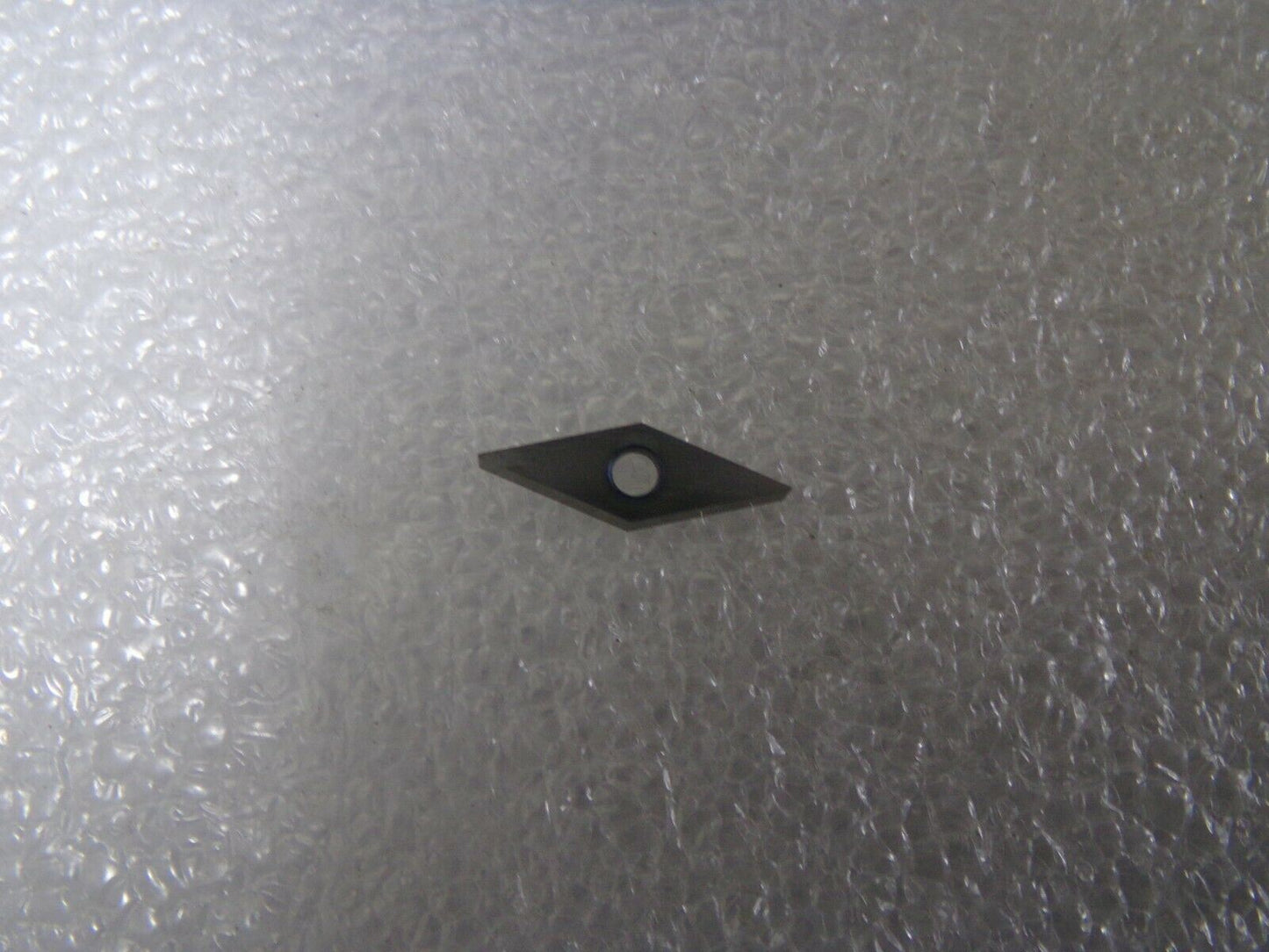

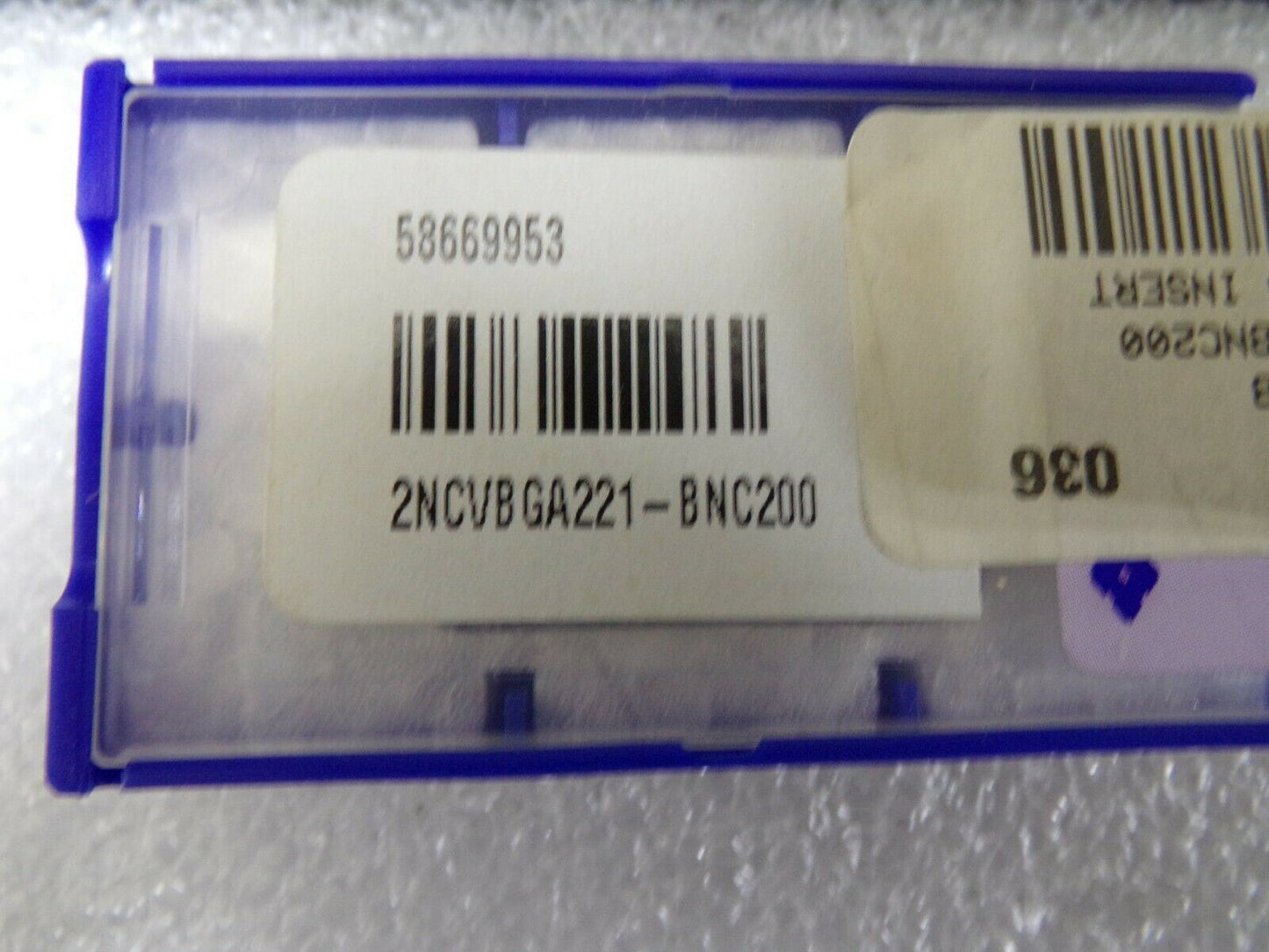

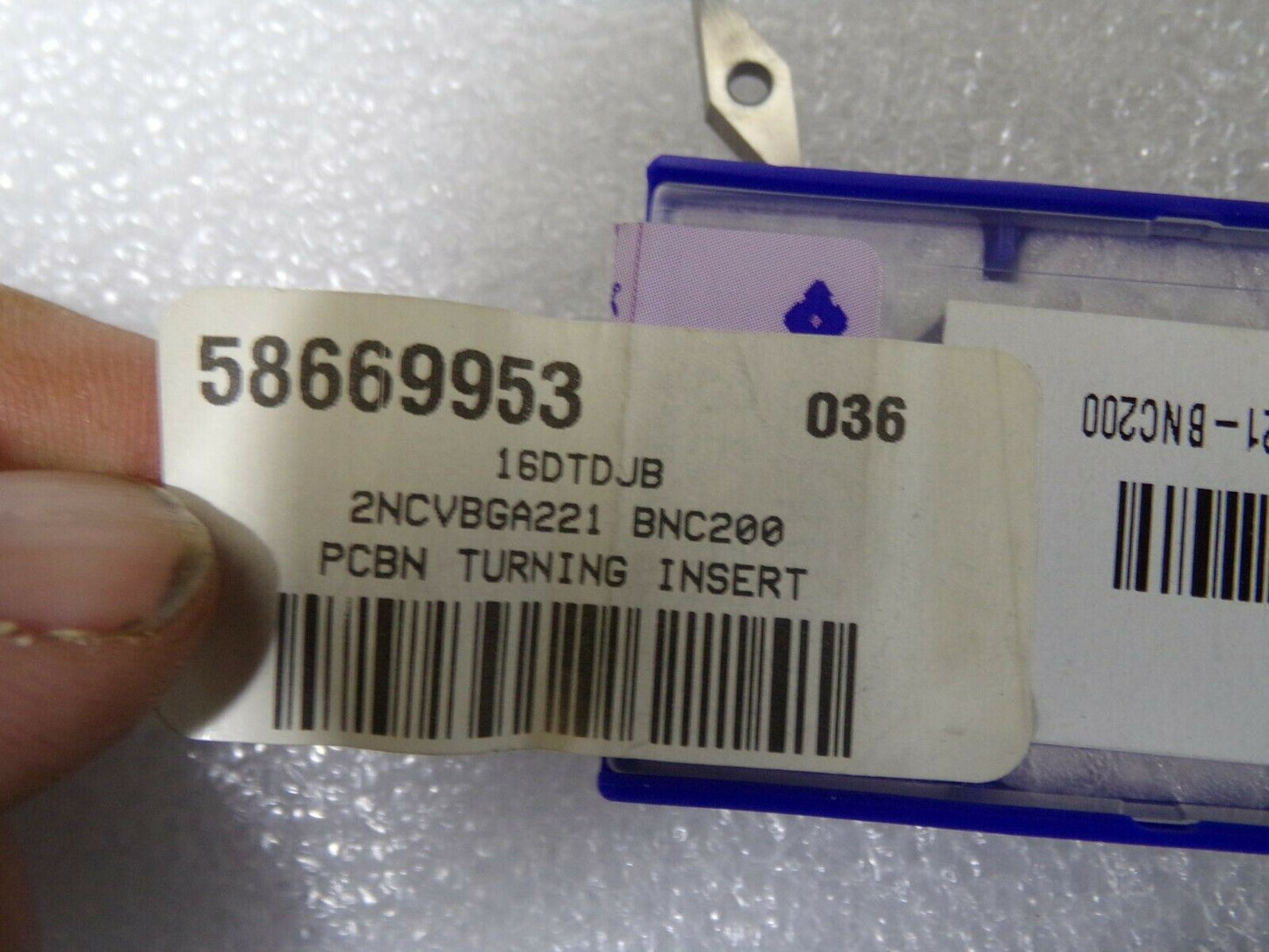

Sumitomo 2NC-VBGA221 Grade BNC200 PCBN Turning Insert (183952393349-BT04)

$39.99

Shipping calculated at checkout

SKU: 183952393349-BT04

Only 1 left!

Sumitomo2NC-VBGA221 Grade BNC200 PCBN Turning Insert

TiN Finish, 35° Diamond, 1/4" Inscr Circle, 1/8" Thick, 1/64" Corner Radius



Insert Style 2NC-VBGA
Insert Size 221
Material PCBN
Inscribed Circle (Decimal Inch) 0.2500
Inscribed Circle (Inch) 1/4
Thickness (Inch) 1/8
Thickness (Decimal Inch) 0.1250
Corner Radius (Inch) 1/64
Corner Radius (Decimal Inch) 0.0156
Manufacturer's Grade BNC200
Coating TiN
Hole Diameter (Decimal Inch) 0.1340
Relief Angle 5
Included Angle 35
Maximum Depth of Cut (Decimal Inch) 0.0150
Insert Holding Method Screw
Shape Diamond
