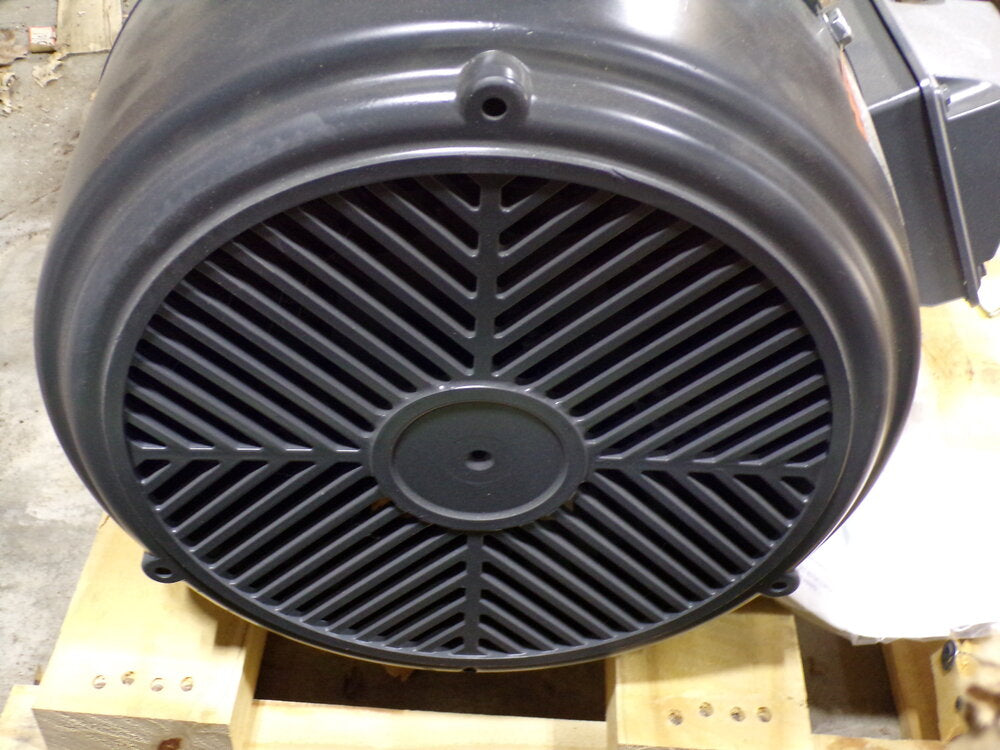

US MOTORS 15 HP, General Purpose Motor, 3-Phase, 1800 Nameplate RPM, 208-230/460 Voltage, 254TC Frame (SQ53290462B38) FREIGHT SHIPPING REQUIRED

$849.99 $1,399.99

Shipping calculated at checkout

SKU: SQ53290462B38

Only 1 left!

Notice: This Item Requires Freight Shipping. Contact For Rates Before Purchase. Click Here To Send Message FREIGHT SHIPPING



Featuring an optimized slot design and low-loss stator laminating for greater efficiency, this inverter-rated motor offers high temperature pulse endurance performance and superior mechanical shear stability. The painted epoxy finish resists corrosion from saltwater.

Item: General Purpose Motor

  • Motor Application: General Application

  • Motor Design: 3-Phase

  • Motor Enclosure Design: Totally Enclosed Fan-Cooled

  • HP: 15

  • Nameplate RPM: 1800

  • Frame: 254TC

  • Voltage: 208-230/460

  • Hz: 60/50

  • Phase: 3

  • Full Load Amps: 40-37/18.4

  • No. of Speeds: 1

  • Motor Mounting Type: Face/Base

  • Motor Mounting Position: Horizontal or Vertical Shaft Down

  • Motor Thermal Protection: None

  • Ins. Class: F

  • Motor Service Factor: 1.25

  • Motor Bearings: Ball

  • Motor Frame Material: Cast Aluminum

  • Max. Ambient Temp.: 40 Degrees C

  • Motor Shaft Rotation: CW/CCW

  • Shaft Dia.: 1 5/8 in

  • Shaft Length: 4 in

  • Length Less Shaft: 19 7/8 in

  • Overall Length: 24 in

  • Motor Shaft Design: Keyed

  • Standards: UL, CSA, CE

  • Duty: Continuous

  • Motor Efficiency Group: NEMA Premium Efficient

  • Nominal Efficiency: 92.4 %

  • CC Number: CC030A

  • Green Certification or Other Recognition: NEMA Premium(R) Rated
