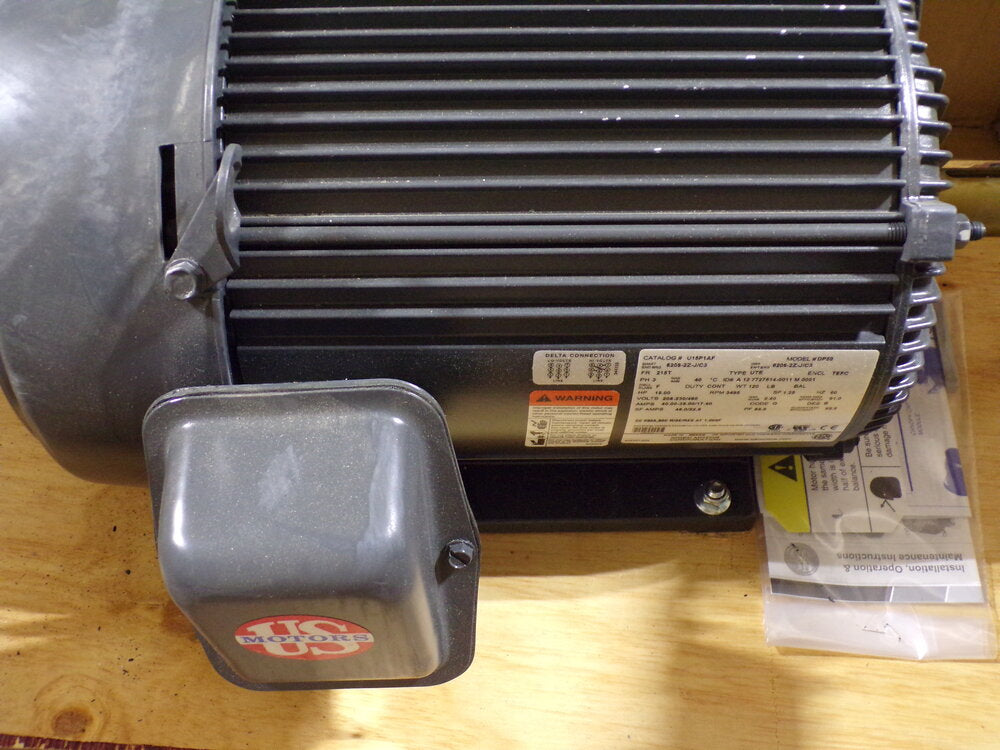

US MOTORS 15 HP, General Purpose Motor, 3-Phase, 3600 Nameplate RPM, 230/460 Voltage, 215T Frame (SQ15858052D48)

Featuring an optimized slot design and low-loss stator laminating for greater efficiency, this inverter-rated motor offers high temperature pulse endurance performance and superior mechanical shear stability. The painted epoxy finish resists corrosion from saltwater.

Item: General Purpose Motor

• Motor Application: General Application

• Motor Design: 3-Phase

• Motor Enclosure Design: Totally Enclosed Fan-Cooled

• HP: 15

• Nameplate RPM: 3600

• Frame: 215T

• Voltage: 230/460

• Hz: 60/50

• Phase: 3

• Full Load Amps: 35/17.4

• No. of Speeds: 1

• Motor Mounting Type: Rigid Base

• Motor Mounting Position: Horizontal or Vertical Shaft Down

• Motor Thermal Protection: None

• Ins. Class: F

• Motor Service Factor: 1.25

• Motor Bearings: Ball

• Motor Frame Material: Cast Aluminum

• Max. Ambient Temp.: 40 Degrees C

• Motor Shaft Rotation: CW/CCW

• Shaft Dia.: 1 3/8 in

• Shaft Length: 3 3/8 in

• Length Less Shaft: 18 1/4 in

• Overall Length: 20 1/2 in

• Motor Shaft Design: Keyed

• Standards: UL, CSA, CE

• Duty: Continuous

• Motor Efficiency Group: NEMA Premium Efficient

• Nominal Efficiency: 91 %

• CC Number: CC030A

• Green Certification or Other Recognition: NEMA Premium(R) Rated
