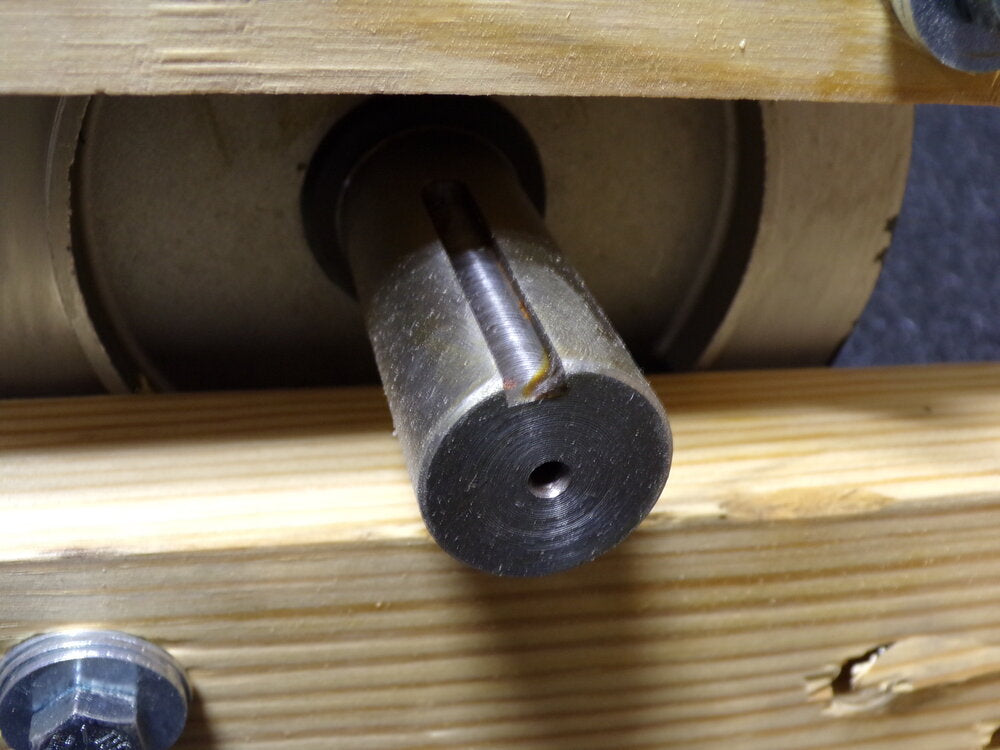

US MOTORS 3 HP, General Purpose Motor, 3-Phase, 3540 Nameplate RPM, 208-230/460 Voltage, 182TCH Frame (SQ74524252D46)

$299.99 $479.99

Shipping calculated at checkout

SKU: SQ74524252D46

Only 1 left!

This motor has a cracked fan shroud, spins freely.

Features optimized slot design and low-loss stator laminating for greater efficiency. High temperature pulse endurance performance and superior mechanical shear stability. 6050 Hz. Painted epoxy finish resists corrosion from saltwater.

Item: General Purpose Motor

  • Motor Application: General Application

  • Motor Design: 3-Phase

  • Motor Enclosure Design: Totally Enclosed Fan-Cooled

  • HP: 3

  • Nameplate RPM: 3540

  • Frame: 182TCH

  • Voltage: 208-230/460

  • Hz: 60/50

  • Phase: 3

  • Full Load Amps: 8.4-7.8/3.9

  • No. of Speeds: 1

  • Motor Mounting Type: Face

  • Motor Mounting Position: Horizontal

  • Motor Thermal Protection: None

  • Ins. Class: F

  • Motor Service Factor: 1.25

  • Motor Bearings: Ball

  • Motor Frame Material: Cast Aluminum

  • Max. Ambient Temp.: 40 Degrees C

  • Motor Shaft Rotation: CW/CCW

  • Shaft Dia.: 1 1/8 in

  • Shaft Length: 2 5/8 in

  • Length Less Shaft: 13 1/2 in

  • Overall Length: 16 3/16 in

  • Motor Shaft Design: Keyed

  • Standards: CE, CSA (191252), NP, UL (E51488)

  • Duty: Continuous

  • Motor Efficiency Group: NEMA Premium Efficient

  • Nominal Efficiency: 86.5 %

  • CC Number: CC030A

  • Inverter Rated: Yes

  • Green Environmental Attribute: Product Contributes To Reducing Energy Consumption

  • Green Certification or Other Recognition: NEMA Premium(R) Rated
