US MOTORS 7 1/2 HP, General Purpose Motor, 3-Phase, 1765 Nameplate RPM, 208-230/460 Voltage, 213TC Frame (SQ35247002D46)

Features optimized slot design and low-loss stator laminating for greater efficiency. High temperature pulse endurance performance and superior mechanical shear stability. 6050 Hz. Painted epoxy finish resists corrosion from saltwater.

Item: General Purpose Motor

• Motor Application: General Application

• Motor Design: 3-Phase

• Motor Enclosure Design: Totally Enclosed Fan-Cooled

• HP: 7 1/2

• Nameplate RPM: 1765

• Frame: 213TC

• Voltage: 208-230/460

• Hz: 60/50

• Phase: 3

• Full Load Amps: 20-18.2/9.1

• No. of Speeds: 1

• Motor Mounting Type: Face

• Motor Mounting Position: Horizontal

• Motor Thermal Protection: None

• Ins. Class: F

• Motor Service Factor: 1.25

• Motor Bearings: Ball

• Motor Frame Material: Cast Aluminum

• Max. Ambient Temp.: 40 Degrees C

• Motor Shaft Rotation: CW/CCW

• Shaft Dia.: 1 3/8 in

• Shaft Length: 3 3/8 in

• Length Less Shaft: 15 1/2 in

• Overall Length: 18 13/16 in

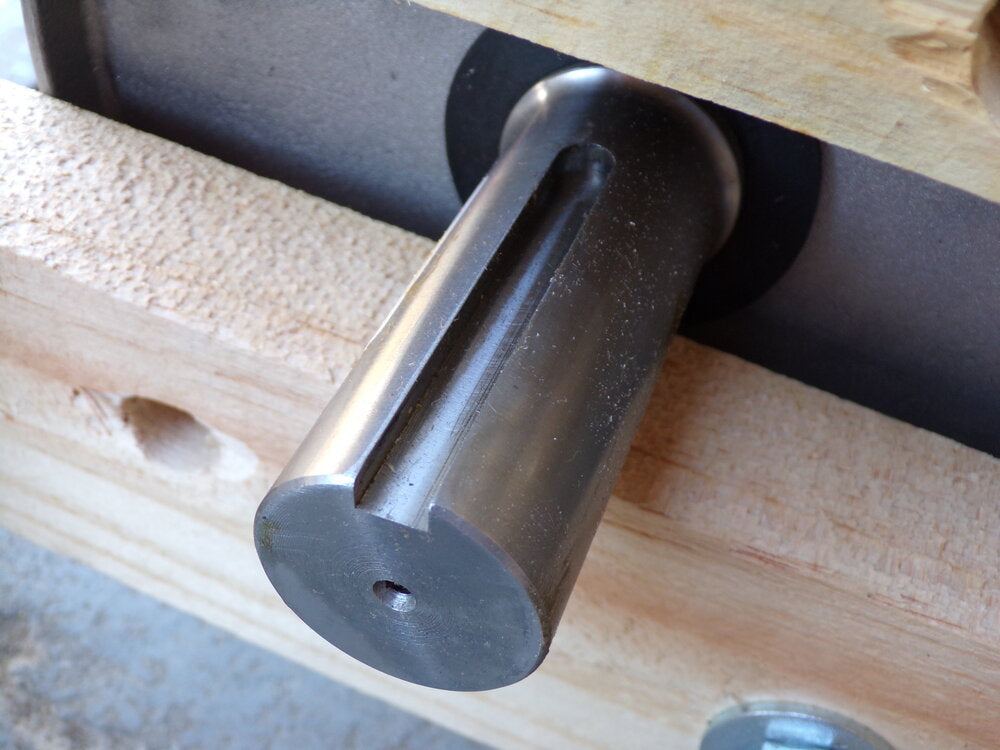

• Motor Shaft Design: Keyed

• Standards: CE, CSA (191252), NP, UL (E51488)

• Duty: Continuous

• Motor Efficiency Group: NEMA Premium Efficient

• Nominal Efficiency: 91.7 %

• CC Number: CC030A

• Inverter Rated: Yes

• Green Environmental Attribute: Product Contributes To Reducing Energy Consumption

• Green Certification or Other Recognition: NEMA Premium(R) Rated
