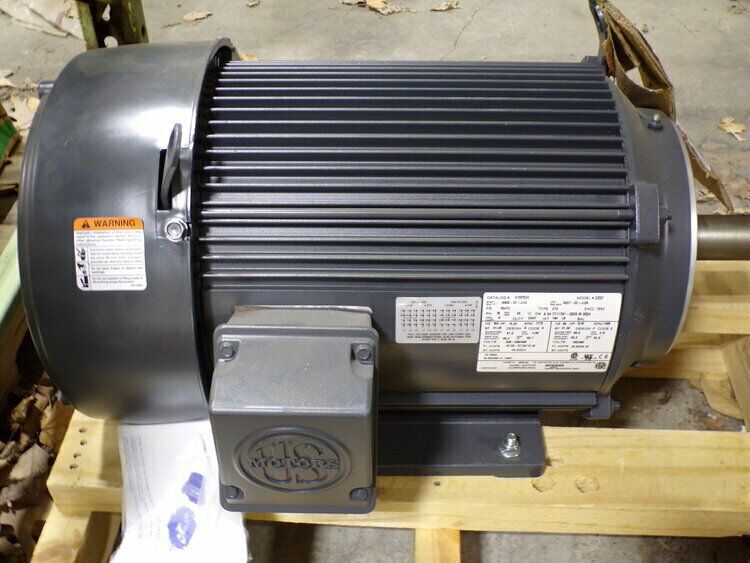

US MOTORS U15P1AF Mtr, 3ph, 15 HP, 3600, 208-230/460V, Eff 91.0 (184540359703-2B46)

$789.99 $1,199.99

Shipping calculated at checkout

SKU: 184540359703-2B46

Only 1 left!

  • Item: General Purpose Motor
  • Motor Application: General Application
  • Phase: Three
  • Motor Design: 3-Phase
  • HP: 15
  • Nameplate RPM: 3,600
  • No. of Speeds: 1
  • Voltage: 230/460V AC
  • Full Load Amps: 35/17.4
  • Frame: 215T
  • Hz: 60/50
  • Motor Service Factor: 1.25
  • Max. Ambient Temp.: 40 Degrees C
  • Motor Thermal Protection: None
  • Duty Cycle: Continuous
  • Ins. Class: F
  • NEMA Design: B
  • Motor Enclosure Design: Totally Enclosed Fan-Cooled
  • Motor Shaft Rotation: CW/CCW
  • Motor Mounting Type: Rigid Base
  • Motor Mounting Position: Horizontal or Vertical Shaft Down
  • Motor Shaft Design: Keyed
  • Motor Frame Material: Cast Aluminum

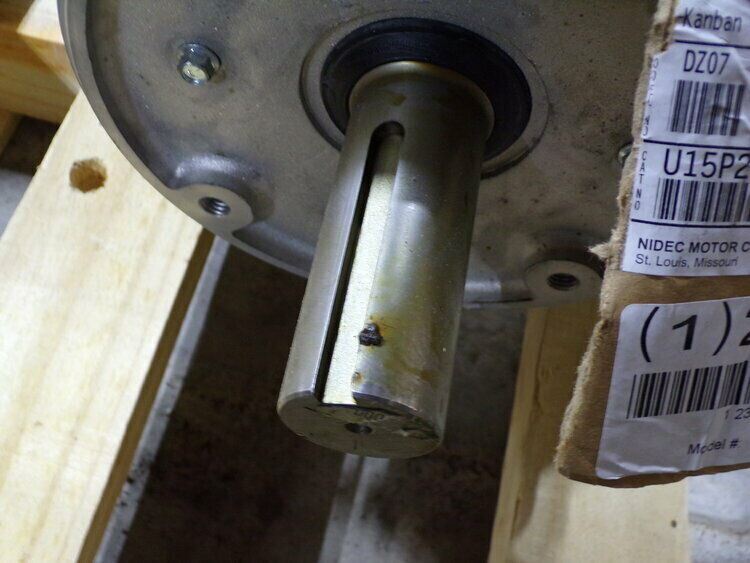

  • Shaft Dia.: 1 3/8 in
  • Shaft Length: 3 3/8 in
  • Motor Bearings: Ball
  • Length Less Shaft: 18 1/4 in
  • Overall Length: 20 1/2 in
  • Motor Efficiency Group: NEMA Premium Efficient
  • Nominal Efficiency: 91 %
  • CC Number: CC030A
  • Standards: CE, CSA, UL
  • Green Certification or Other Recognition: NEMA Premium(R) Rated
