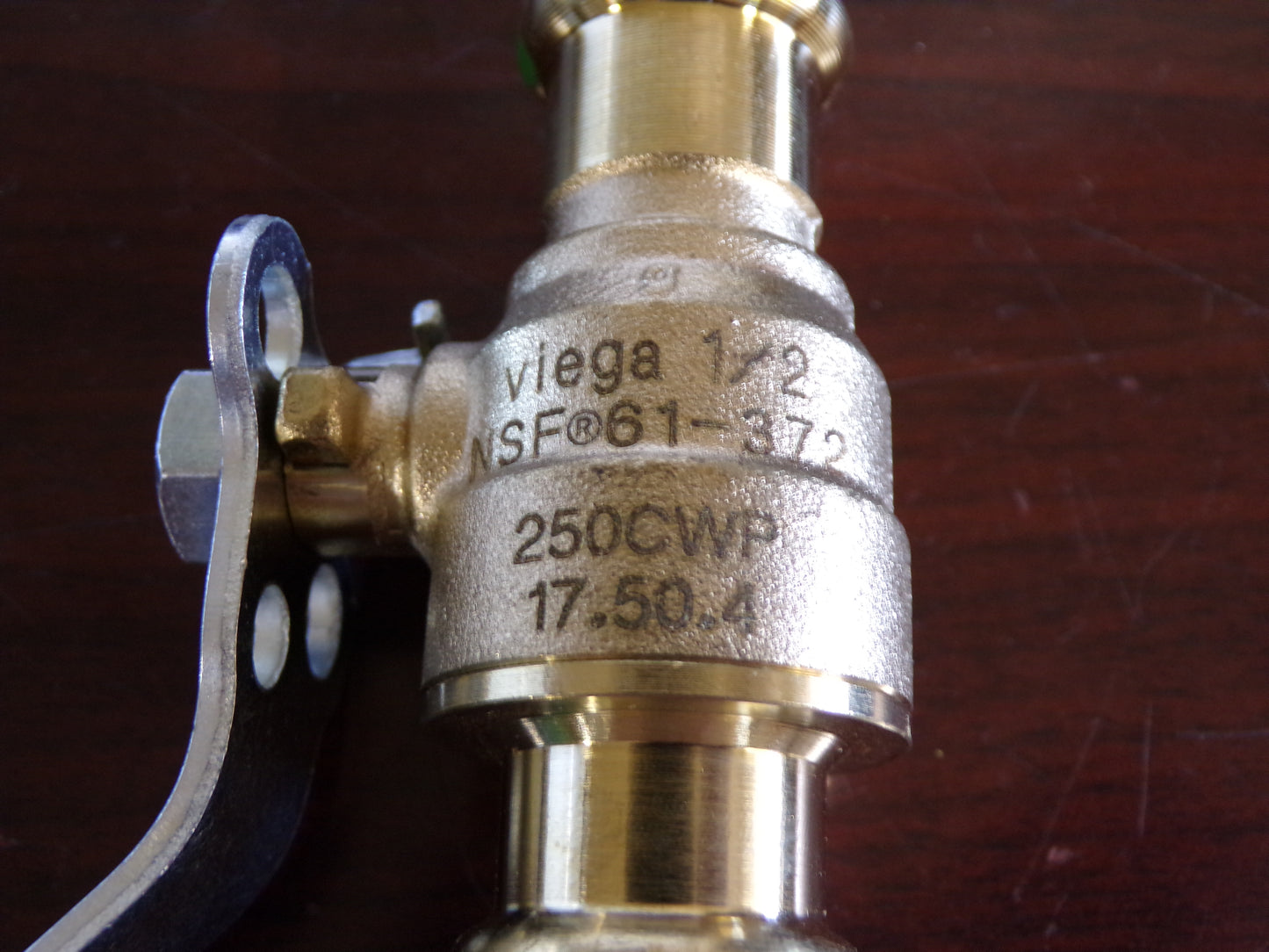

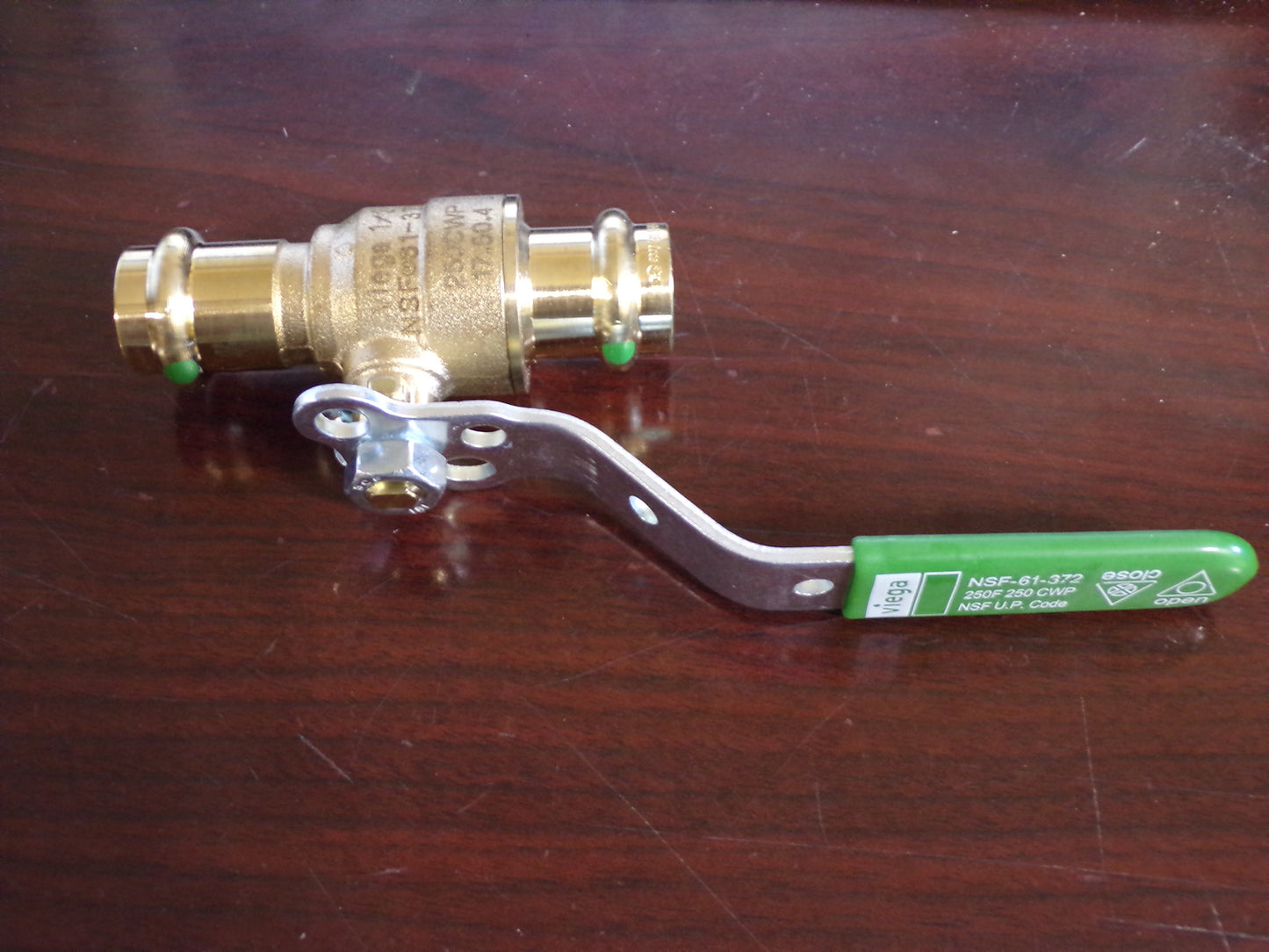

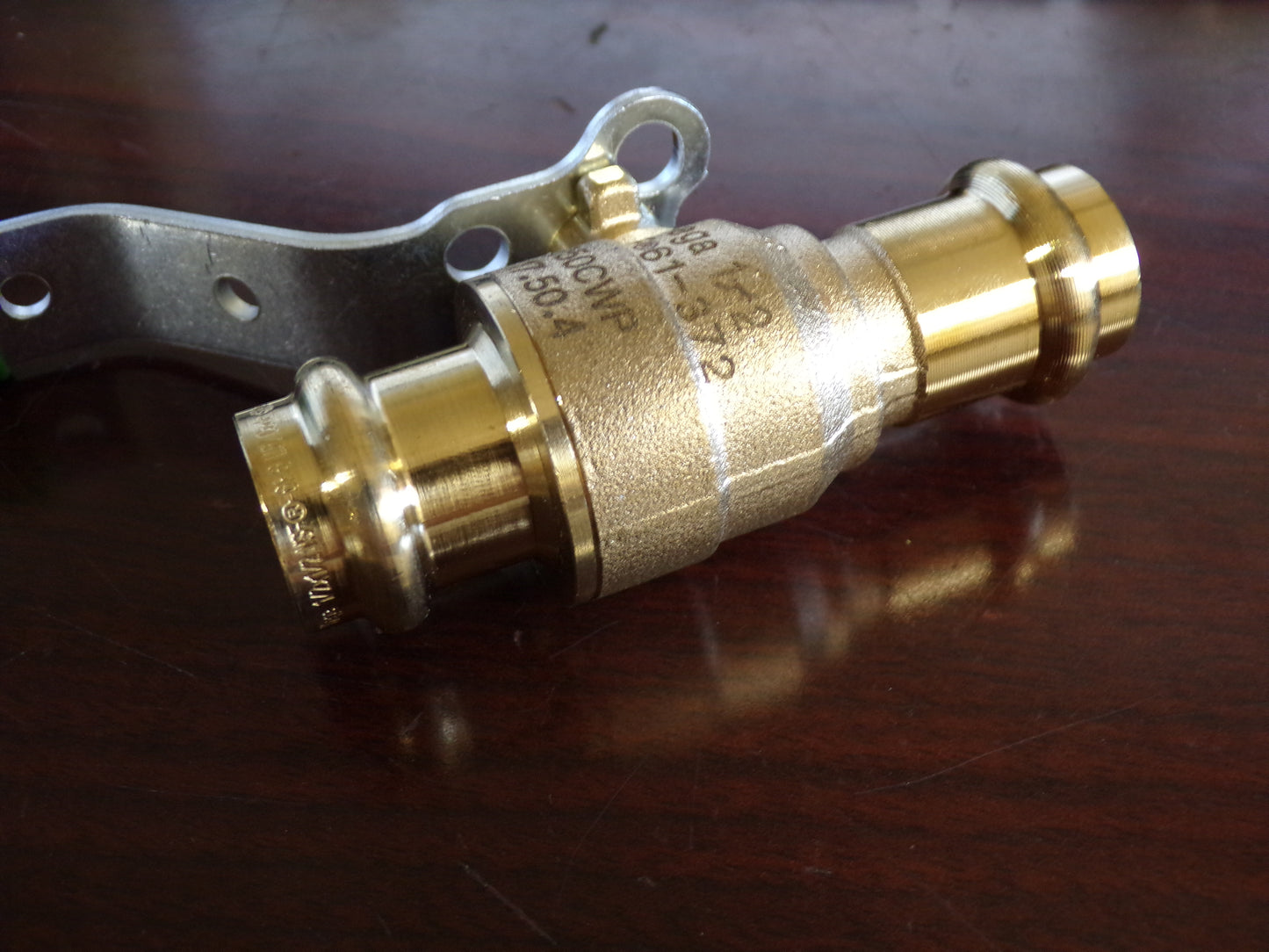

VIEGA PROPRESS Ball Valve, Zero Lead Bronze, Inline, 2-Piece, Pipe Size 1/2 in, Tube Size 1/2 in x 1/2 in (CR00474WTA09)

$24.99

Shipping calculated at checkout

SKU: CR00474WTA09

Only 1 left!

Has innovative Viega Smart Connect® feature that allows installers to identify unpressed connections during pressure testing. Suitable for use in low-lead potable water systems. Meets ASME A112.4.14-2004 standards and NSF-61G Listed.

  • Item: Ball Valve
  • Body Material: Zero Lead Bronze
  • Body Style: Inline
  • General Connection Type: Press
  • Valve Structure: 2-Piece
  • Pipe Size: 1/2 in
  • Tube Size: 1/2 in x 1/2 in
  • Connection Type: Press x Press
  • Port: Full
  • Max. Pressure: 200 psi CWP
  • Max. Steam Pressure: 15 psi WSP
  • Temp. Range: 0 Degrees to 250 Degrees F
  • Ball Material: Stainless Steel
  • Seat Material: PTFE
  • Stem Type: Blowout Proof

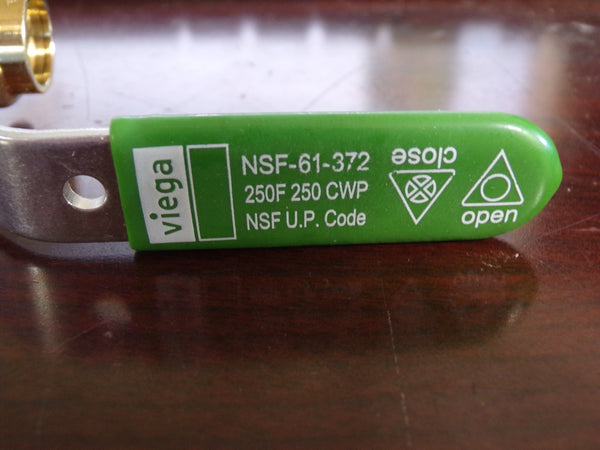

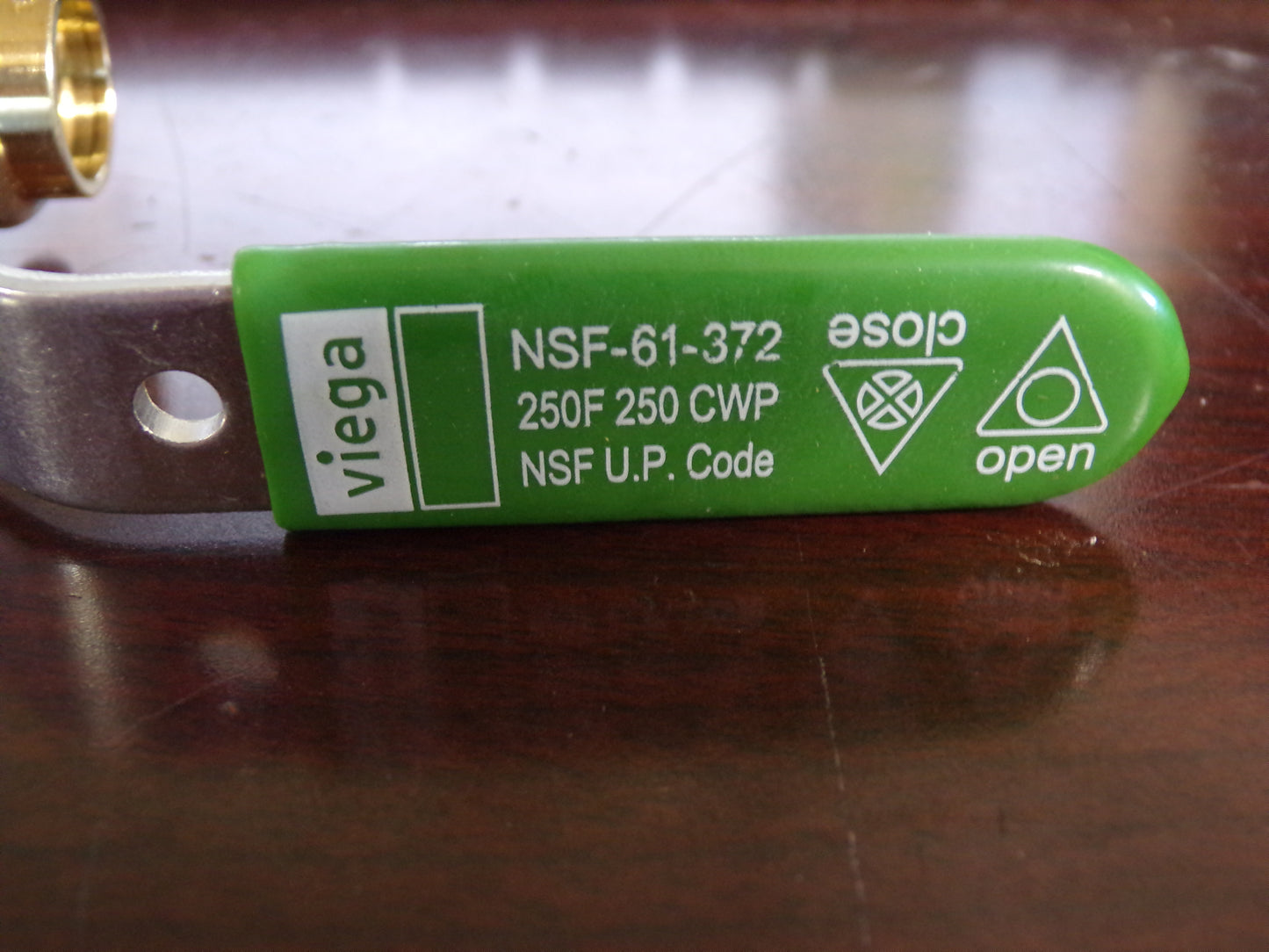

  • Handle Type: Locking Lever
  • Handle Material: Zinc Plated Steel with Vinyl Grip
  • Stem Material: Lead Free Brass
  • Body Seal Material: EPDM
  • Features: Smart Connect, Zero Lead
  • Ball Valve Product Group: Manual
  • Valve Basic Body Material: Bronze
  • Standards: 13D and 13R: Fire Sprinkler Applications, CRN: Canadian Registration Number, CSA International: Canadian Standards Association, FM: FM Global, IAPMO: Uniform Plumbing Code, ICC: International Plumbing Code, NFPA 13, NSF/ANSI 372: Drinking Water System Components - Lead Content, NSF/ANSI 61: Drinking Water System Components - Health Effects, PHCC: National Standard Plumbing Code, UL: Underwriters Laboratories
