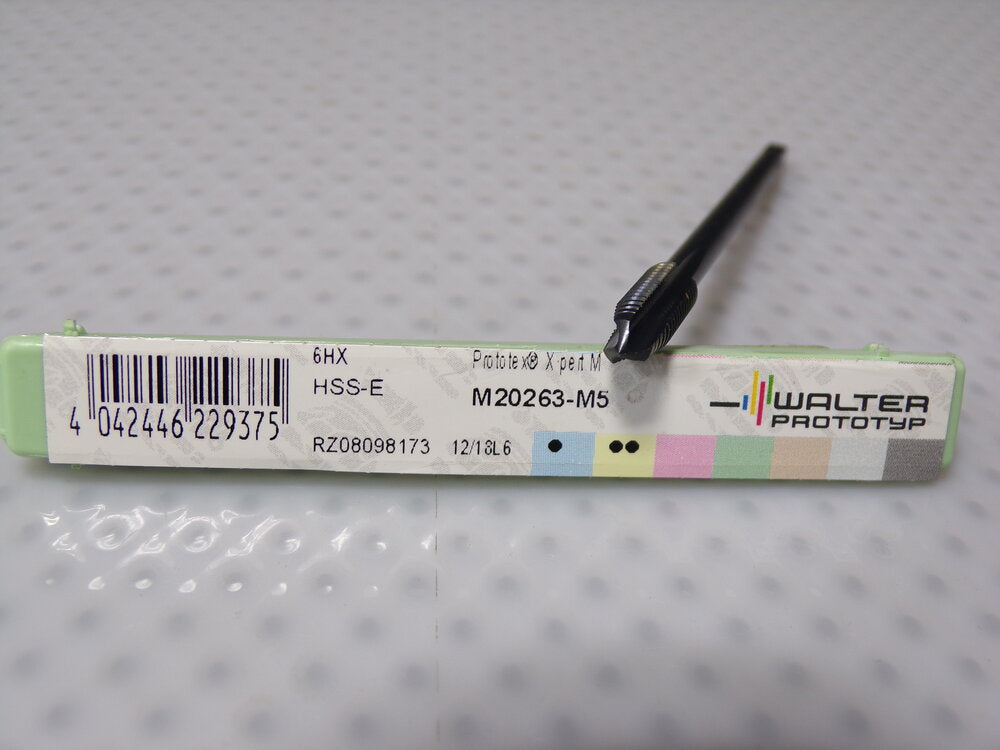

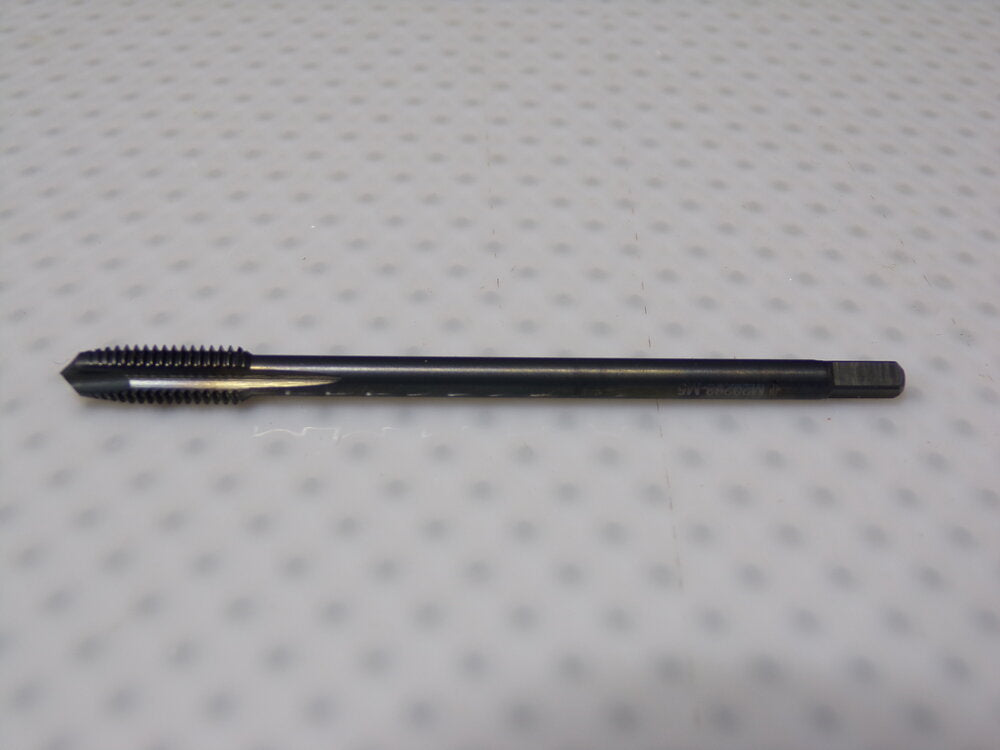

WALTER PROTOTYP Spiral Point Tap, 3 Flute, M5x0.8, Metric Coarse, OAL 70.00mm, HSS-E, VAP, M20263-M5 (SQ3392013WT08)

Item: Spiral Point Tap

• Thread Size: M5x0.8

• Thread Standard: Metric Coarse

• Tap Material: HSS-E

• Tap Finish: VAP

• Thread Length: 13mm

• Overall Length: 70mm

• 75% Thread Drill Size: 4.2mm

• Thread Limit: 6HX

• Thread Direction: Right Hand

• Number of Flutes: 3

• Primary Material Application: Stainless Steel

• 55% Thread Drill Size: 4.4mm

• 65% Thread Drill Size: 4.3mm

• Coolant Fed: Non-Coolant Through

• Drill Bit Size: 4.2mm

• Extended Neck: Yes

• Measurement System: Metric

• Primary Material Application ISO Code: M

• Secondary Material Application: Steel

• Secondary Material Application ISO Code: P

• Series: Prototex X.pert M

• Shank Dia.: 3.5mm

• Shank Length: 21mm

• Shank Type - Machining: Straight

• Spiral Direction: Neutral

• Square Size: 2.7mm

• Tap Chamfer: Plug

• Tap Grouping: Individual

• Tap Thread Size: M5x0.8

• Thread Pitch: 0.8mm

• Thread Limit / Class of Fit: 6HX
