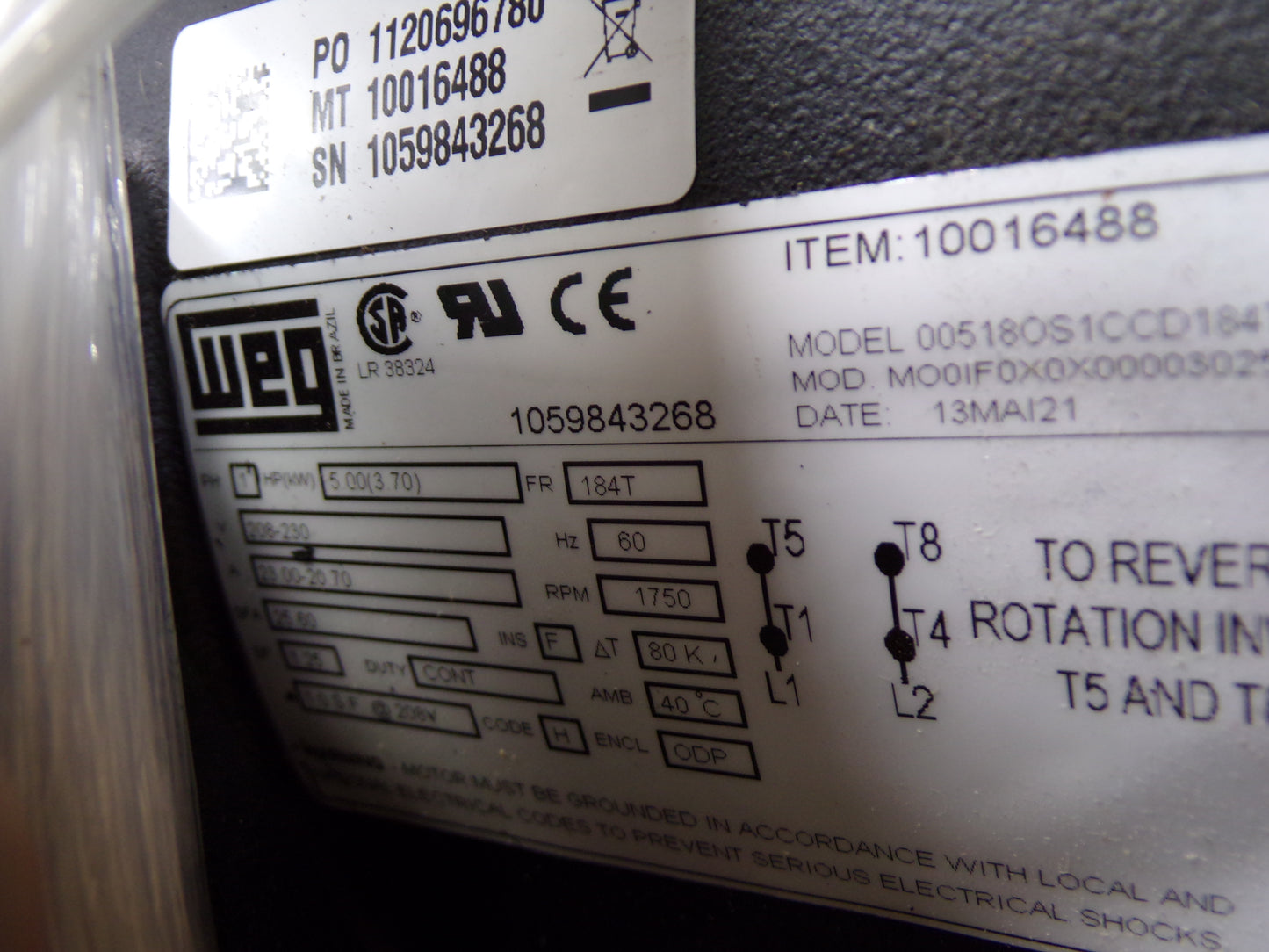

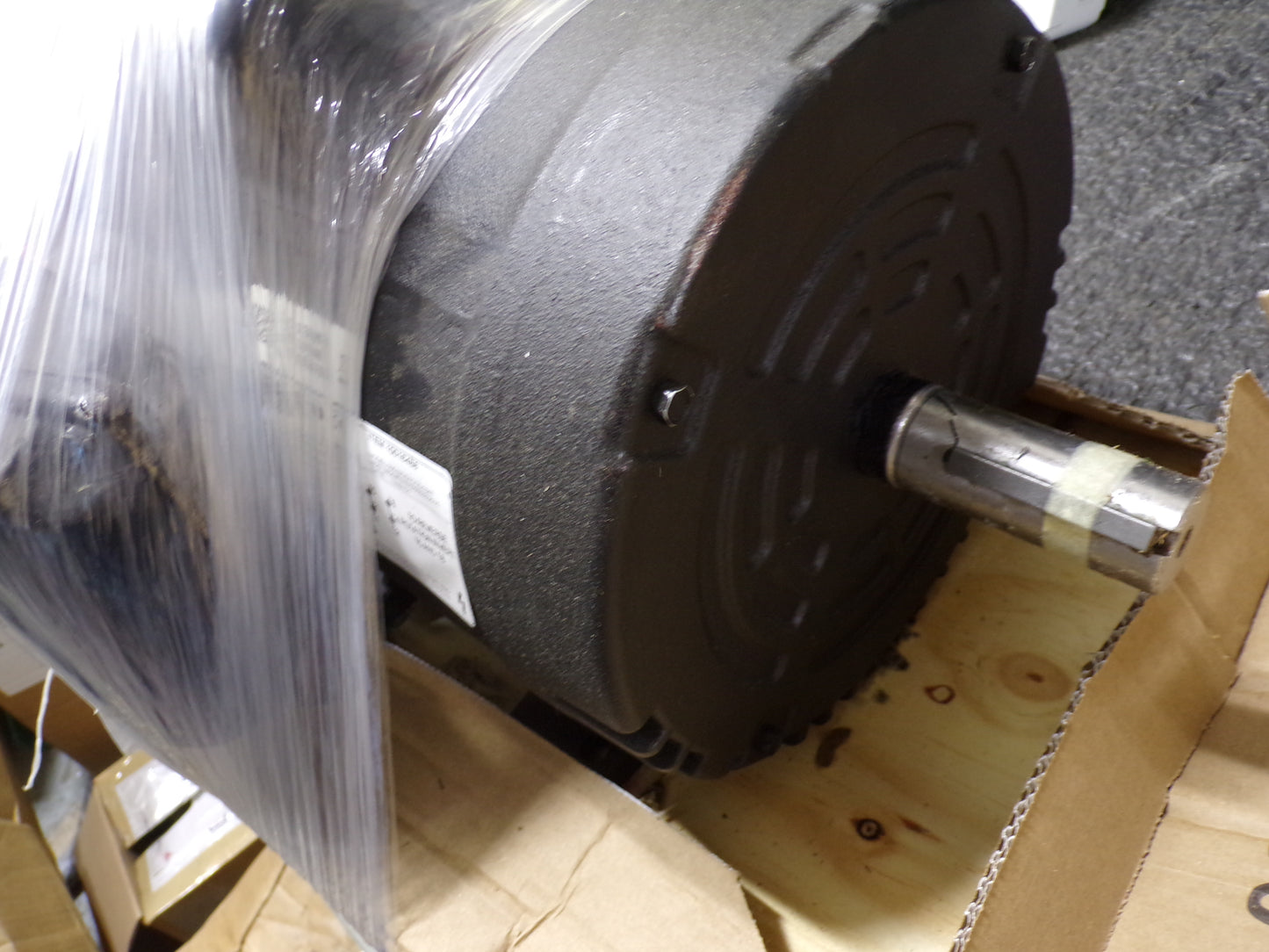

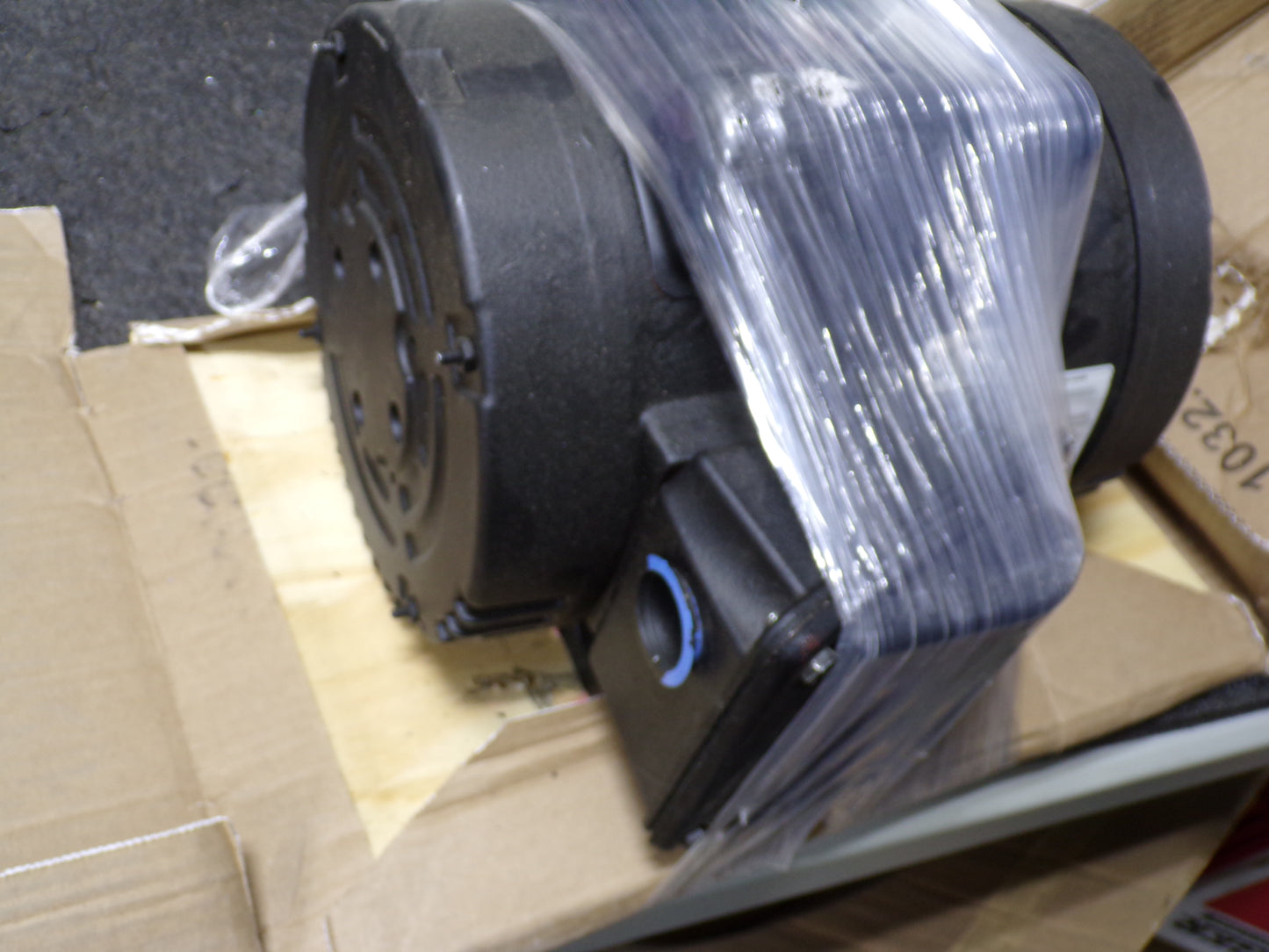

WEG Commercial Duty Air Compressor Motor, 5 HP, Capacitor-Start/Run, Nameplate RPM 1,750 (CR00585WTA04)

Commercial-duty air compressor AC motors generate high-torque to power air compressors for use on jobsites, auto body shops, and in manufacturing applications. They have an open dripproof (ODP) enclosure to help protect motor from moisture.

• Item: Commercial Duty Air Compressor Motor
• Motor Application: Air Compressor
• Phase: Single
• Motor Design: Capacitor-Start/Run
• HP: 5
• Nameplate RPM: 1,750
• No. of Speeds: 1
• Voltage: 208-230V AC
• Full Load Amps: 23.0-20.7
• Frame: 184T
• Hz: 60
• Motor Service Factor: 1.25
• Motor Thermal Protection: None
• Ins. Class: F
• Max. Ambient Temp.: 40 Degrees C
• Duty Cycle: Continuous
• Motor Shaft Rotation: CW/CCW
• Motor Enclosure Design: Open Dripproof
• Motor Mounting Type: Rear/Foot
• Motor Mounting Position: Horizontal
• Motor Frame Material: Cast Iron
• Shaft Dia.: 1 1/8 in
• Shaft Length: 2 3/4 in
• Motor Shaft Design: Keyed
• Motor Bearings: Ball
• Overall Length: 14 7/8 in
• Length Less Shaft: 12 1/8 in
• Weight: 93.2 lb
• Nominal Efficiency: 80 %
• Standards: NEMA MG-1
• Includes: Capacitor
