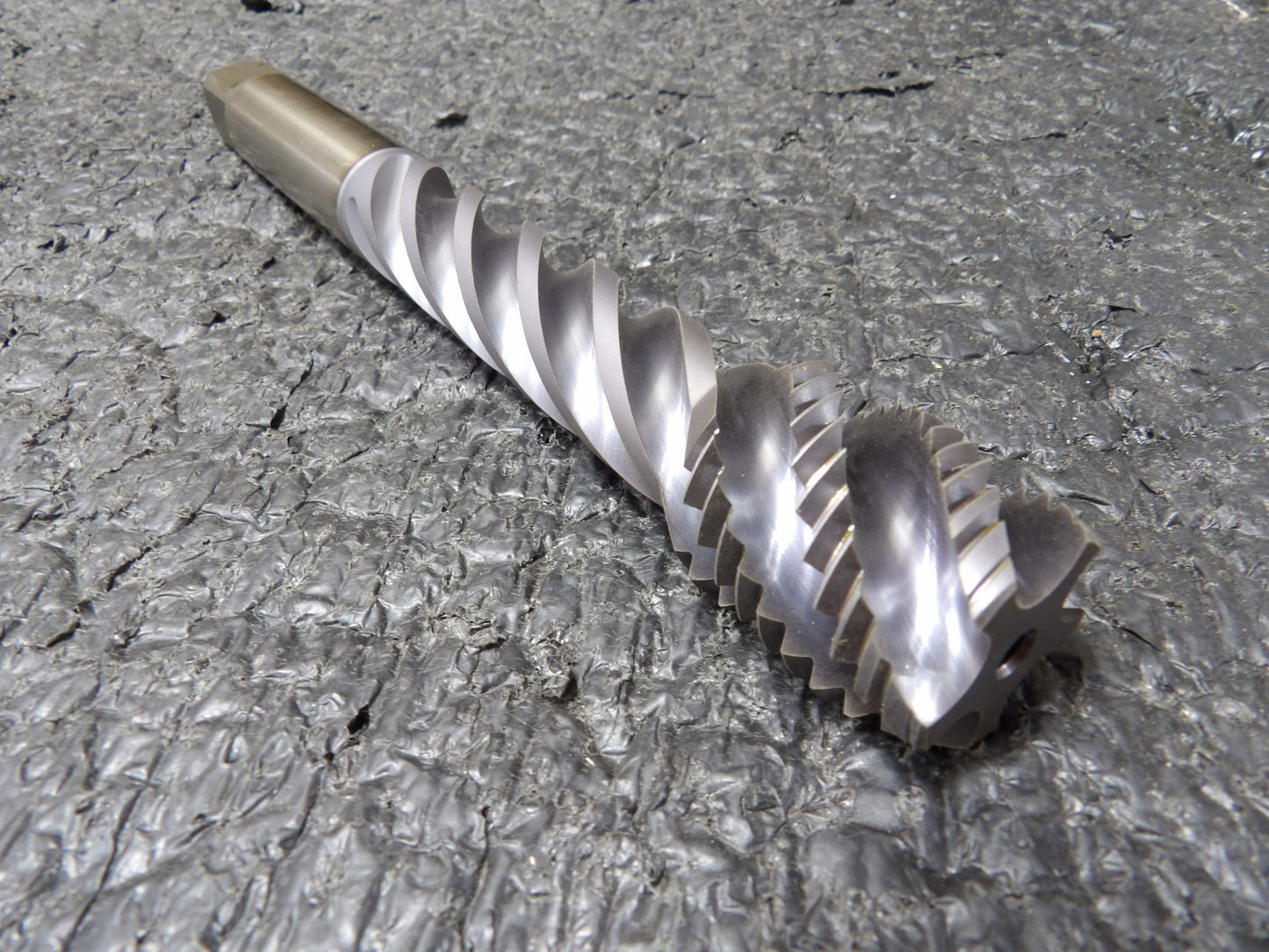

WIDIA GTD Spiral Flute Tap: M33x3.5 Thread Size, 35.00 mm Thread Lg, 250.00 mm Overall Lg, 5 Flutes, GT315017 (CR00833WTA26)

$599.99

Shipping calculated at checkout

SKU: CR00833WTA26

Only 2 left!
WIDIA GTD Spiral Flute Tap: M33x3.5 Thread Size, 35.00 mm Thread Lg, 250.00 mm Overall Lg, 5 Flutes, GT315017 (CR00833WTA26)
WIDIA GTD Spiral Flute Tap: M33x3.5 Thread Size, 35.00 mm Thread Lg, 250.00 mm Overall Lg, 5 Flutes, GT315017 (CR00833WTA26)
WIDIA GTD Spiral Flute Tap: M33x3.5 Thread Size, 35.00 mm Thread Lg, 250.00 mm Overall Lg, 5 Flutes, GT315017 (CR00833WTA26)
WIDIA GTD Spiral Flute Tap: M33x3.5 Thread Size, 35.00 mm Thread Lg, 250.00 mm Overall Lg, 5 Flutes, GT315017 (CR00833WTA26)
WIDIA GTD Spiral Flute Tap: M33x3.5 Thread Size, 35.00 mm Thread Lg, 250.00 mm Overall Lg, 5 Flutes, GT315017 (CR00833WTA26)
Description Let Us Know What You Think

These taps are designed for tapping steel. They have a TiCN coating that protects them from wear and is harder and more wear-resistant than a TiN coating. Coolant-through taps have holes that allow coolant to flow to their tip to reduce heat and friction during threading tasks.

    • Item: Spiral Flute Tap

    • Thread Size: M33x3.5

    • Thread Standard: Metric

    • Tap Material: High Speed Steel

    • Tap Finish: TiCN

    • Thread Length: 35.00 mm

    • Overall Length: 250.00 mm

    • 75% Thread Drill Size: 29.59 mm

    • Thread Limit: 6HX

    • Class of Fit: 6HX

    • Thread Direction: Right Hand

    • Number of Flutes: 5

    • Tap Shank Standard: DIN 376

    • Primary Material Application: Steel

    • 65% Thread Drill Size: 30.04 mm

    • Coolant Fed: Coolant Through

    • Extended Neck: Yes

    • Features: High Performance Taps

    • Helix Angle: 45 Degrees

    • Measurement System: Metric

    • Powdered Metal Base Material: Cobalt

    • Primary Material Application ISO Code: P

    • Secondary Material Application: Cast Iron

    • Secondary Material Application ISO Code: K

    • Shank Length: 100.00 mm

    • Shank Type - Machining: Straight

    • Spiral Direction: Right Hand

    • Square Size: 20.00mm

    • Tap Chamfer: Semi-Bottom

    • Thread Limit / Class of Fit: 6HX

    • Thread Pitch: 3.50mm

    • Series: GT31

    • Shank Dia.: 25.00 mm

    • Standards: DIN 376

    • Tap Grouping: Individual

    • Tap Style: Spiral Flute

  • Tap Thread Size: M33x3.50
