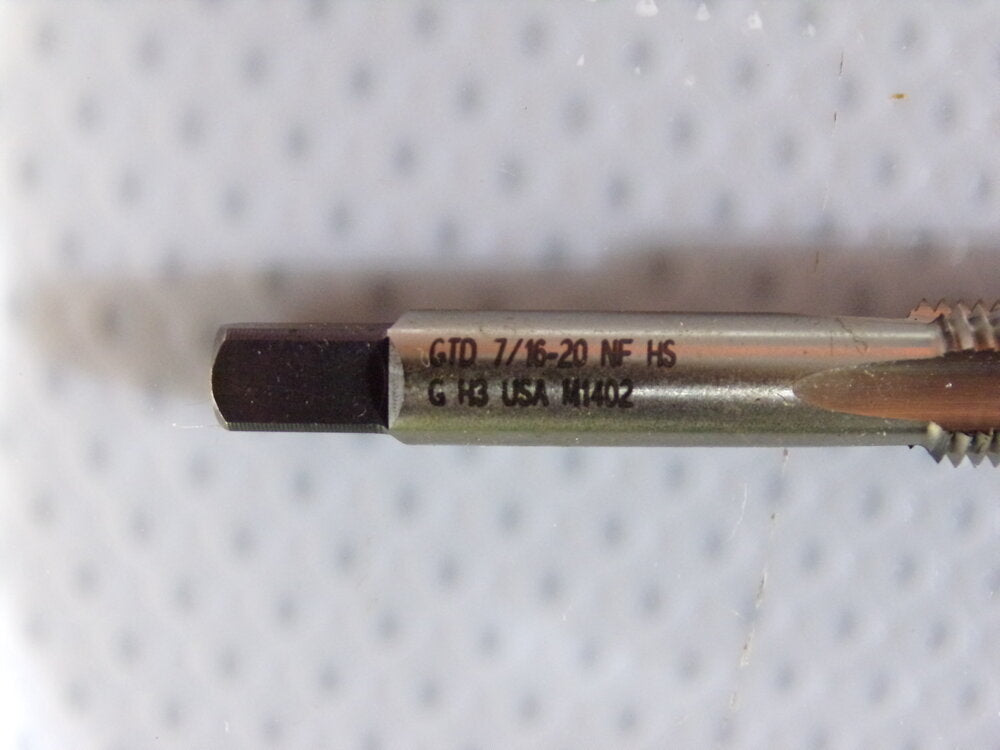

WIDIA GTD Straight Flute Tap, 7/16"-20, UNF, UNJF, Bottoming, OAL 3-5/32", 14248 (SQ3127153WT08)

Item: Straight Flute Tap

• Thread Size: 7/16"-20

• Thread Standard: UNF, UNJF

• Tap Chamfer: Bottoming

• Tap Material: High Speed Steel

• Tap Finish: Bright (Uncoated)

• Thread Length: 1-7/16"

• Overall Length: 3-5/32"

• 75% Thread Drill Size: 9.95mm

• Thread Limit: H3

• Thread Direction: Right Hand

• Number of Flutes: 4

• Tap Length Standard: ANSI 302

• Tap Shank Standard: ANSI 302

• 55% Thread Drill Size: 10.2mm

• 65% Thread Drill Size: 10mm

• Coolant Fed: Non-Coolant Through

• Extended Neck: No

• Measurement System: Fractional Inch

• Primary Material Application: Aluminum, Brass, Bronze, Copper

• Primary Material Application ISO Code: N

• Series: 5303/2303

• Shank Dia.: 0.323"

• Shank Length: 1.72"

• Shank Type - Machining: Straight

• Spiral Direction: Neutral

• Square Size: 0.242"

• Standards: DIN 371

• Tap Grouping: Individual

• Tap Style: Straight Flute (Hand)

• Threads per Inch: 20 TPI
