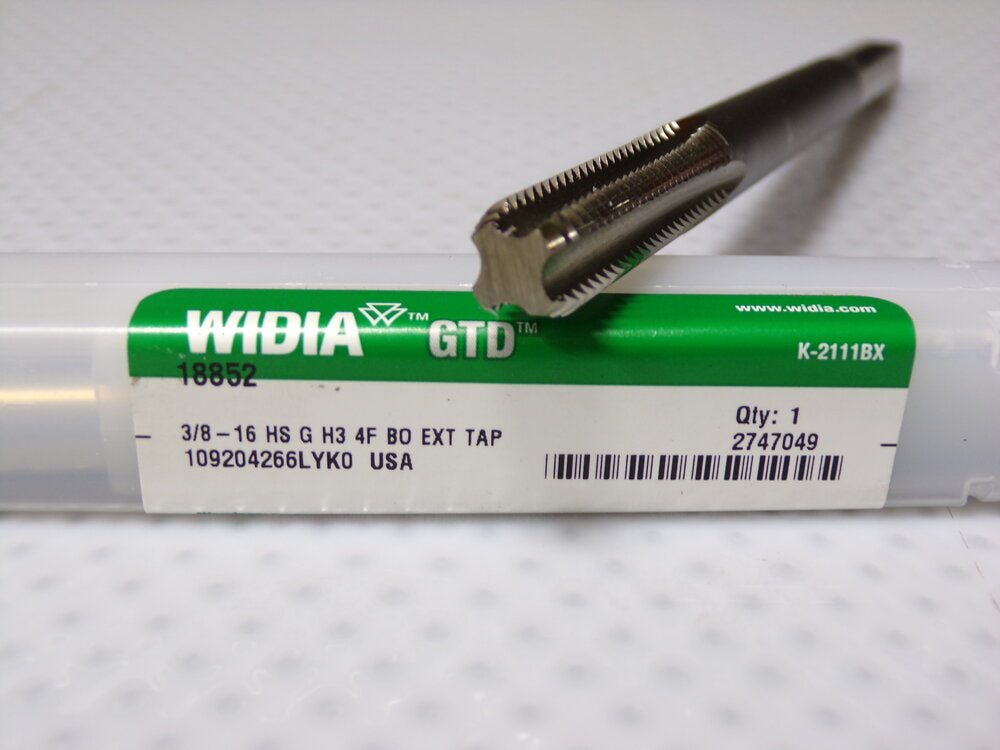

WIDIA GTD Straight Flute Tap, 3/8"-16 UNC, UNJC, 4 Flute, Bottoming, OAL 6", 18852 (SQ4389368WT08)

$11.99

Shipping calculated at checkout

SKU: SQ4389368WT08

Available Now!

Item: Straight Flute Tap

  • Thread Size: 3/8"-16

  • Thread Standard: UNC, UNJC

  • Tap Chamfer: Bottoming

  • Tap Material: High Speed Steel

  • Tap Finish: Bright (Uncoated)

  • Thread Length: 1-1/4"

  • Overall Length: 6"

  • 75% Thread Drill Size: 5/16"

  • Thread Limit: H3

  • Thread Direction: Right Hand

  • Number of Flutes: 4

  • Tap Length Standard: DIN 376

  • Tap Shank Standard: DIN 376

  • 55% Thread Drill Size: 8.4mm

  • 65% Thread Drill Size: P

  • Coolant Fed: Non-Coolant Through

  • Extended Neck: Yes

  • Measurement System: Fractional Inch

  • Primary Material Application: Steel

  • Primary Material Application ISO Code: P

  • Secondary Material Application: Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel

  • Secondary Material Application ISO Code: M, N, K

  • Series: 5305(EXT)/5303(EXT)

  • Shank Dia.: 0.381"

  • Shank Length: 4-3/4"

  • Shank Type - Machining: Straight

  • Spiral Direction: Neutral

  • Square Size: 0.286"

  • Standards: DIN 376

  • Tap Grouping: Individual

  • Tap Style: Straight Flute (Hand)

  • Threads per Inch: 16 TPI
