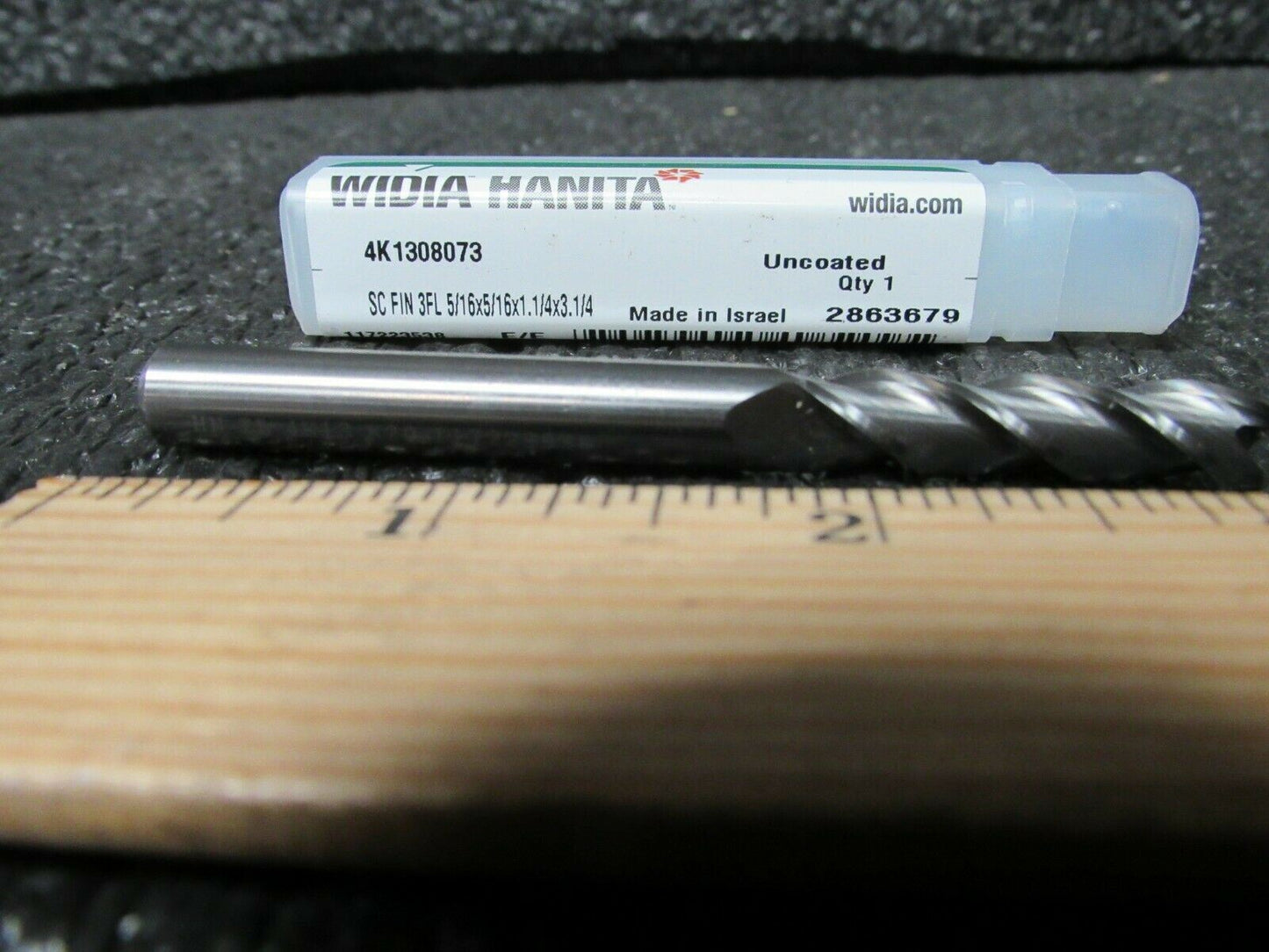

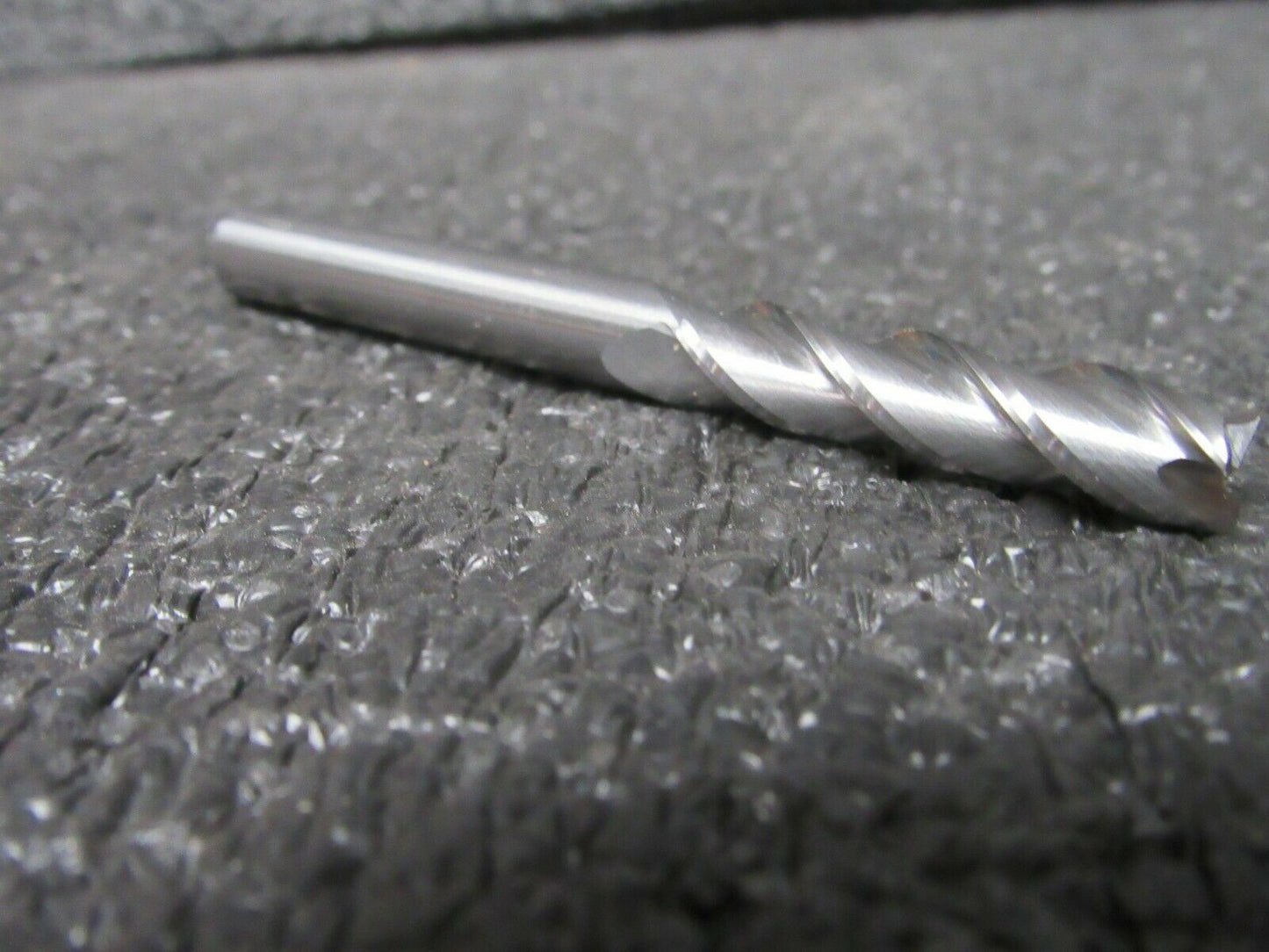

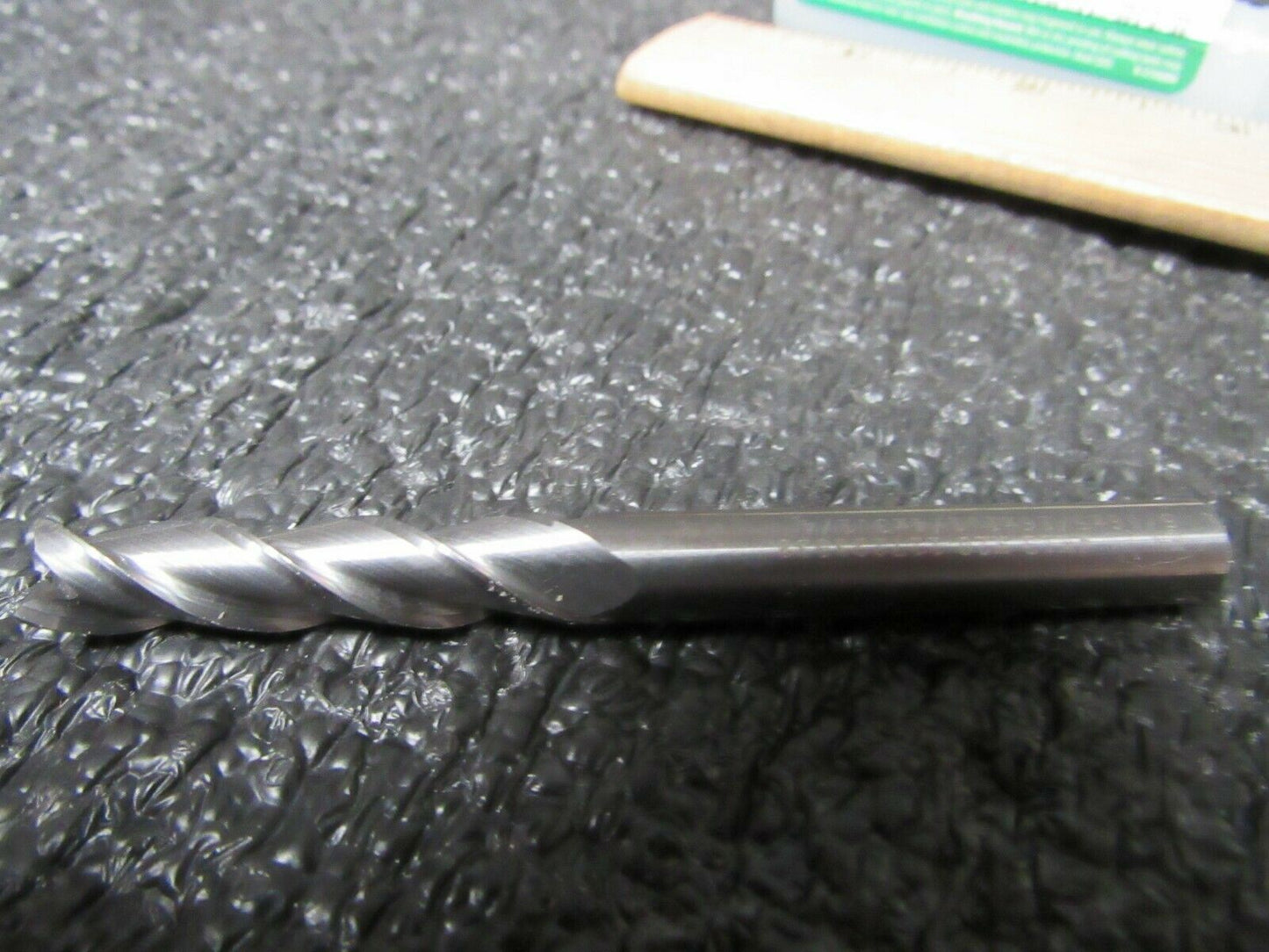

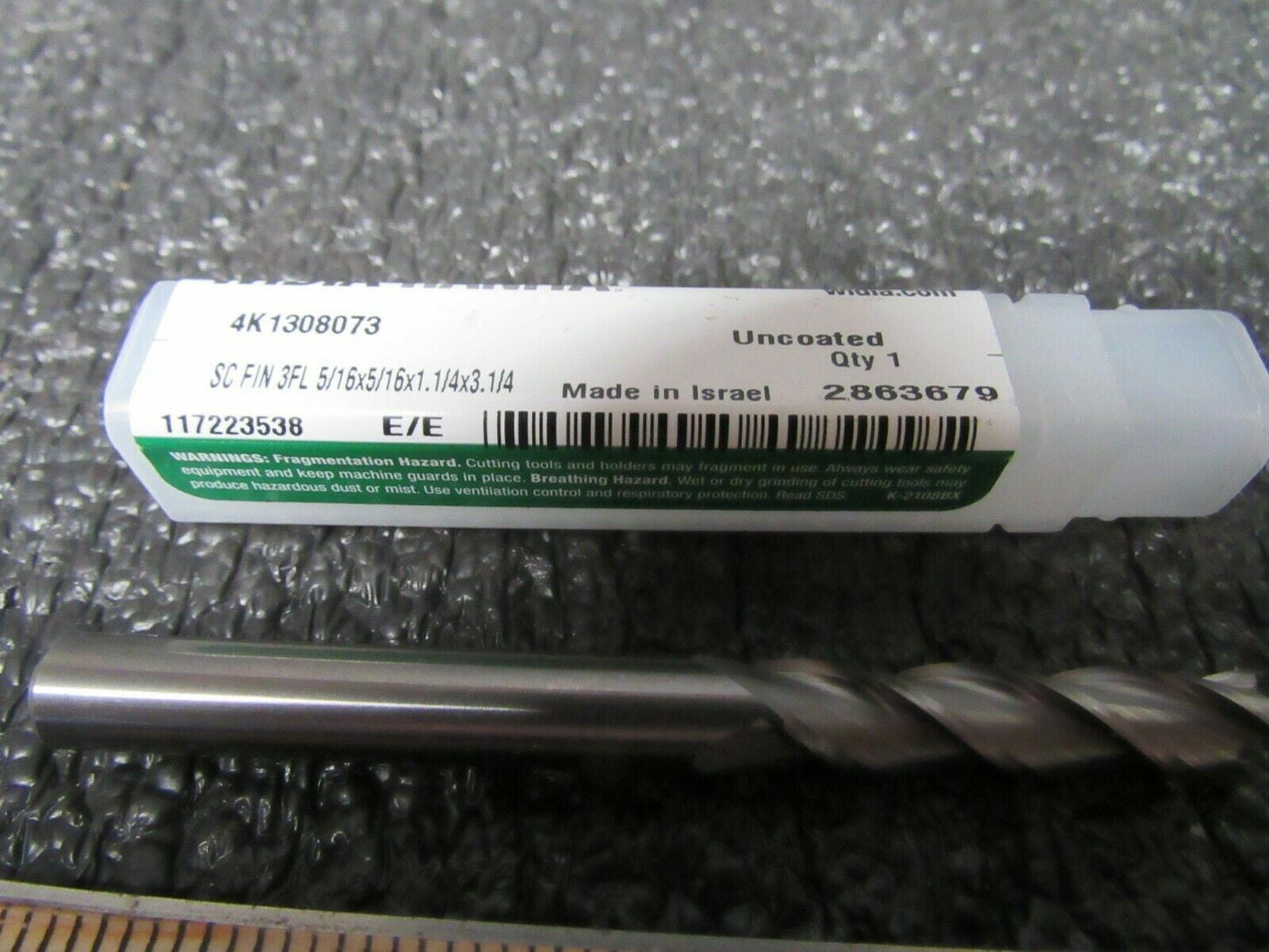

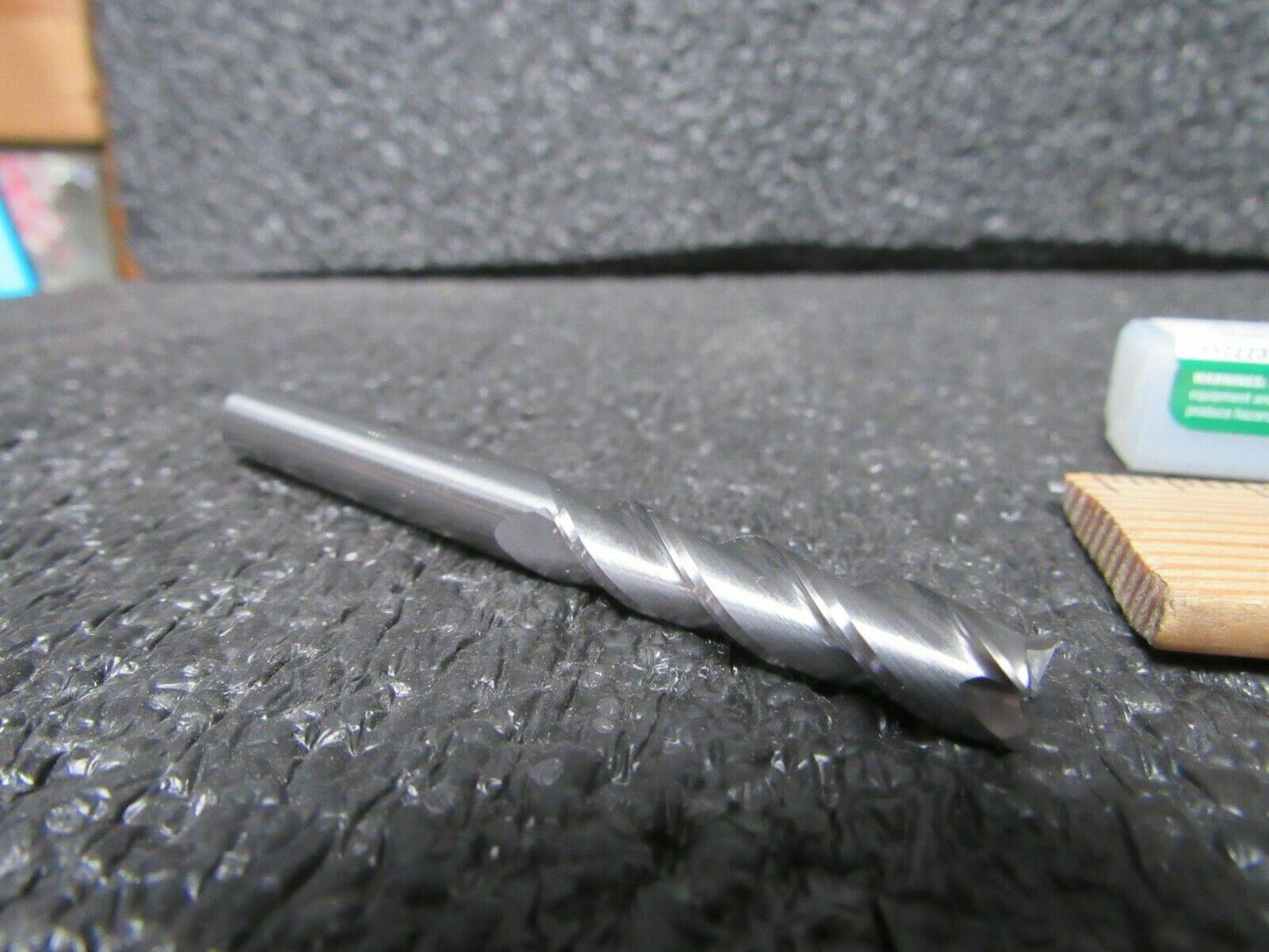

WIDIA HANITA 4K1308073 End Mill, 0.3125 in. Milling Dia., (184213580350-BT35)
$39.99
Shipping calculated at checkout
SKU: 184213580350-BT35
WIDIA HANITA 4K1308073 End Mill,0.3125 in. Milling Dia.,
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals.
Center Cutting tools have one or more cutting edges at the tip and are used in a variety of applications including plunging, drilling or ramping.
| Mill Diameter (Inch) | 5/16 |
| Mill Diameter (Decimal Inch) | 0.3125 |
| Number of Flutes | 3 |
| Length of Cut (Inch) | 1-1/4 |
| Length of Cut (Decimal Inch) | 1.2500 |
| Material | Solid Carbide |
| Finish/Coating | Uncoated |
| Shank Diameter (Inch) | 5/16 |
| Single or Double End | Single |
| Overall Length (Inch) | 3-1/4 |
| Center Cutting | Center Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 37.00 |
| Variable Helix | No |
| Variable Index | No |
| Flute Type | Spiral |
| Helix Style | High |
| Mill Diameter Tolerance (Decimal Inch) | +0.000/-0.002 |
| Material Grade | Micrograin |
| Chipbreaker | No |
| Extended Reach | No |
| Shank Diameter Tolerance (Decimal Inch) | +0.00000/-0.00035 |
| Series/List | AADE |
